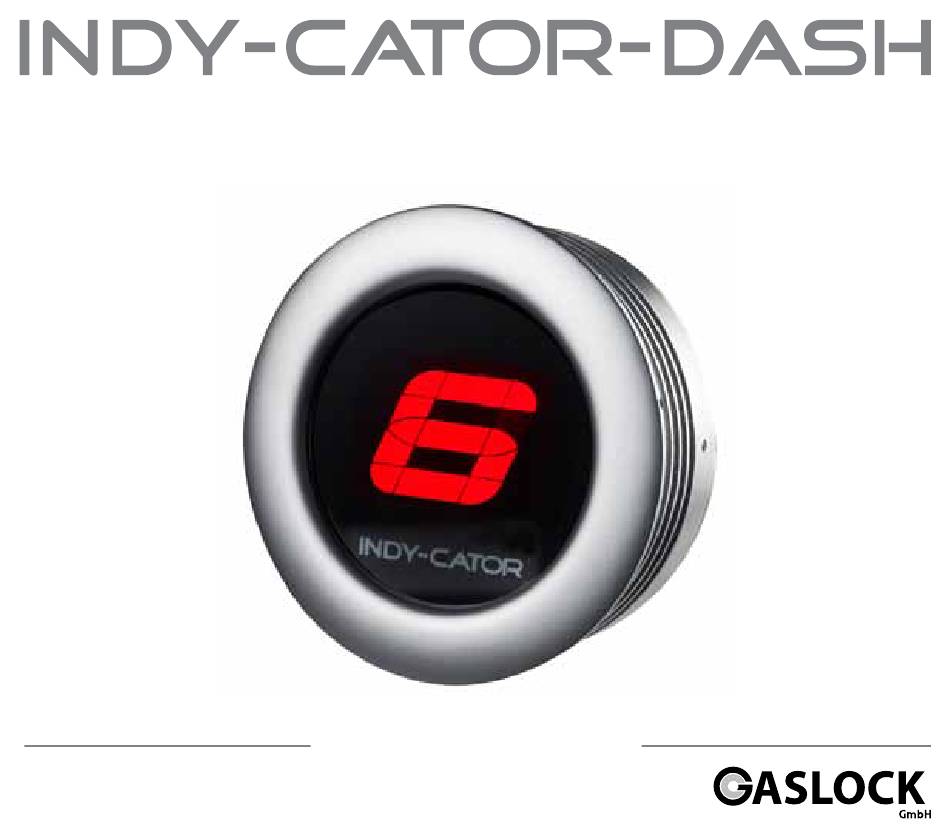

Summary of Contents for GASLOCK INDY-CATOR-DASH
- Page 1 Digital Gear Display Operating Instructions...
- Page 2 Table of Contents Page 3 ............ About INDY-CATOR-DASH Page 4 ............ Package content Page 5 ............ Instrument installation Page 7 ............ Programming Page 9 ............ Troubleshooting...
- Page 3 About INDY-CATOR-DASH First, we would like to explain to you the function If the transmissions are not displayed correctly of the digital gear display: for some reason, please repeat programming It works according to the principle of forming the with the motor/gear on operational temperature.
- Page 4 Package content Display instrument (1x) Threaded ring (1x) Reference box with power supply lines (1x) Cable terminal clamp (2x ) Cable ties (3x) Data cable 3 metres (1x) Sensor box (1x) Sensor cable / data cable short (1x) Fig. 1...
- Page 5 Gear lever knob installation 1.1.1 to ground) – you may use the included cable The ignition should be switched off before instal- clamps – find possible placement for reference lation. When installing in a universal instrument box but do not glue on yet! carrier: Attach instrument with threaded ring in The reference box may still need to be moved the instrument carrier.
- Page 6 (it is unimportant, which one of the two sockets is used). Firmly attach sensor box to the swit- ching rod in a twist-proof position using the included cable ties. 1.3.2 Vehicles with reverse lock often have guide parts that can be moved in longitudinal direction around the actual gear lever.
- Page 7 Programming 2.1.1 2.3.1 The vehicle should be placed on a surface that Fastening the reference box: is as level as possible before programming. The box should be placed as horizontally as pos- Since the vehicle has to start in first gear after sible in the area of the switching lever.
- Page 8 2.3.4 Once the display recognises acceleration, a Display: running bar is displayed: > please switch to first gear > please switch to second gear > please switch to third gear > please switch to fourth gear > please switch to fifth gear (if the vehicle only has 4 gears –...
- Page 9 Troubleshooting If re-programming is required, press the button of the reference box until „C“ is displayed and start again as described on page 6. If the previously selected colour is to be retained, please confirm it with the button without moving the reference box again. Display only shows running ring Sensor box not connected? Check cable connections...
- Page 10 Display remains black Supply lines (red and black)must be checked. If the supply lines are connected correctly (e.g. to DASH, G, VOLT), the reference box status lamp is lit green. (Fig. 6) Figure 6 Check data line between reference box and instrument Changing LCD display brightness Too many display instruments...
