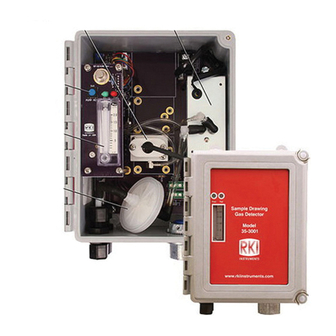

- Page 1 35-3001A-01-03 Methane Sample-Draw Detector Operator’s Manual Part Number: 71-0447 Revision: P1 Released: 10/30/17 www.rkiinstruments.com...
- Page 2 Typical calibration frequencies for most applications are between 6 and 12 months, but can be required more often or less often based on your usage. 35-3001A-01-03 Methane Sample-Draw Detector...
- Page 3 Product Warranty RKI Instruments, Inc. warrants gas alarm equipment sold by us to be free from defects in materials, workmanship, and performance for a period of one year from date of shipment from RKI Instruments, Inc. Any parts found defective within that period will be repaired or replaced, at our option, free of charge.
-
Page 4: Table Of Contents
Parts List ..............20 35-3001A-01-03 Methane Sample-Draw Detector... -
Page 5: Overview
WARNING: When using the 35-3001A-01-03, you must follow the instructions and warnings in this manual to assure proper and safe operation of the 35-3001A-01-03 and to minimize the risk of personal injury. Be sure to maintain and periodically calibrate the 35-3001A-01-03 as described in this manual. -
Page 6: Description
OX Y LE L/ IR AMP 1 AMP 2 Interconnect Terminal Strip This End To Inlet Fitting 3/4" Conduit Hub Particle Filter INLET Inlet Fitting EXHAUST Exhaust Fitting Figure 1: Methane Sample-Draw Detector Component Location 2 • 35-3001A-01-03 Methane Sample-Draw Detector... -
Page 7: External Components
Pressure Switch Flowmeter Exhaust IR CH4 Sensor Flowmeter PCB Sensor Flow Control Restrictor Valve Inlet Pump Particle Filter Hydrophobic Filter Figure 2: Methane Sample-Draw Detector Flow Diagram 35-3001A-01-03 Methane Sample-Draw Detector • 3... - Page 8 Sensor Flow Control Valve The sensor flow control valve is mounted to the flowmeter circuit board above the flowmeter. The sensor flow control valve adjusts the flow rate to the detector. Turn the valve’s knob 4 • 35-3001A-01-03 Methane Sample-Draw Detector...
- Page 9 4-wire cable mates to the IR methane sensor and retains it in the flow block. The cable is wired to the main PCB. The IR methane sensor PCB allows you to replace the sensor without disconnecting the wiring. 35-3001A-01-03 Methane Sample-Draw Detector • 5...
- Page 10 The black test point in the upper left corner is the negative (-) test point and the red test point to the left of the zero and span pots is the positive (+) test point. 6 • 35-3001A-01-03 Methane Sample-Draw Detector...
-
Page 11: Installation
Are the flowmeter and status LEDs visible? 6.50 Ø .30 x .50 (4X) M OUNTING 1.13 4.00 Pilot Fail Sample Drawing Gas Detector 8.88 8.50 35-3001 www.rkiinstruments.com 4.50 NOTE: Housing is 4.3 inches deep Figure 4: Outline and Mounting Dimensions 35-3001A-01-03 Methane Sample-Draw Detector • 7... -
Page 12: Connecting The Sample Lines To The Sample-Draw Detector
1/4” O.D. rigid polypropylene, Teflon, or flexible polyurethane tubing may be used. RKI Instruments, Inc. recommends using either 1/4” O.D. x 1/8” I.D. or 1/4” O.D. x 0.170” I.D. tubing based on your length requirements. See “Specifications” on page 1 for maximum tubing lengths based on tubing size. -
Page 13: Wiring The Methane Sample-Draw Detector To A Controller
Push 1/4” O.D. rigid polypropylene or rigid Teflon sample tubing into the fitting until it stops. Flexible polyurethane tubing may be used with an appropriate insert. RKI Instruments, Inc. recommends using either 1/4” O.D. x 1/8” I.D. or 1/4” O.D. x 0.170” I.D. tubing based on your length requirements. - Page 14 Connect the wires to the applicable detector/transmitter terminal strip at the controller as shown in Figure 5. Refer to the controller operator’s manual and the controller detector head specification sheet for the 35-3001A-01-03 for detector/terminal strip connections specific to the controller.
-
Page 15: Start Up
Plug the voltmeter leads into the test points on the amplifier. Plug the positive lead into the red (+) test point; plug the negative lead into the black (-) test point. Verify a voltmeter reading of 100 mV (± 2 mV). 35-3001A-01-03 Methane Sample-Draw Detector • 11... -
Page 16: Maintenance
Open the housing door, then plug the voltmeter leads into the test points on the amplifier. Plug the positive lead into the red (+) test point; plug the negative lead into the black (-) test point. 12 • 35-3001A-01-03 Methane Sample-Draw Detector... -
Page 17: Troubleshooting
If you cannot set the correct flow rate, check the sample lines for obstructions or kinks. Verify that the sensor wiring and amplifier wiring is correct and secure. “Wiring the Methane Sample-Draw Detector to a Controller” on page 9 describes sensor and amplifier wiring connections. 35-3001A-01-03 Methane Sample-Draw Detector • 13... -
Page 18: Replacing Components Of The Methane Sample-Draw Detector
If the fail condition continues, replace the sensor as described in “Replacing the Infrared Methane Sensor” on page 14. If the fail condition continues, contact RKI Instruments, Inc. for further instruction. Slow or No Response/Difficult or Unable to Calibrate Symptoms •... - Page 19 NOTE: When the sample-draw detector is first powered up with a new amplifier, the initial output may be either high or below zero depending on the setting of the zero pot. Be sure to make arrangements so that this does not cause unwanted alarms. 35-3001A-01-03 Methane Sample-Draw Detector • 15...
-
Page 20: Adjusting The Low Flow Setting
If the sample-draw detector goes into low flow alarm before you can adjust the flow down to 0.6 SCFH, adjust the pressure switch adjustment screw 1/4 turn clockwise, then attempt to set 16 • 35-3001A-01-03 Methane Sample-Draw Detector... -
Page 21: Removing The Particle Filter's Tubing Stub, If Necessary
Unscrew the outside inlet fitting tube nut from the fitting body. The tubing stub should come out with the tube nut. Be careful not to lose the O-ring that may come out with the tubing stub. 35-3001A-01-03 Methane Sample-Draw Detector • 17... -
Page 22: Calibration Frequency
Although there is no particular calibration frequency that is correct for all applications, a calibration frequency of every 6 months is adequate for most infrared combustible gas sample draw applications. Unless experience in a particular application dictates otherwise, RKI Instruments, Inc. recommends a calibration frequency of every 6 months. -
Page 23: Setting The Zero Reading
Remove the voltmeter leads from the amplifier test points. Close the housing door. Follow the instructions in the controller’s operator’s manual to exit the calibration mode. Store the components of the calibration kit in a safe and convenient place. 35-3001A-01-03 Methane Sample-Draw Detector • 19... -
Page 24: Parts List
Regulator, demand flow, for 34 liter aluminum, 58 liter, and 103 liter calibration cylinders (cylinders with internal threads) 81-1055RK Regulator, demand flow, for 17 liter and 34 liter steel calibration cylinders (cylinders with external threads) 20 • 35-3001A-01-03 Methane Sample-Draw Detector...
