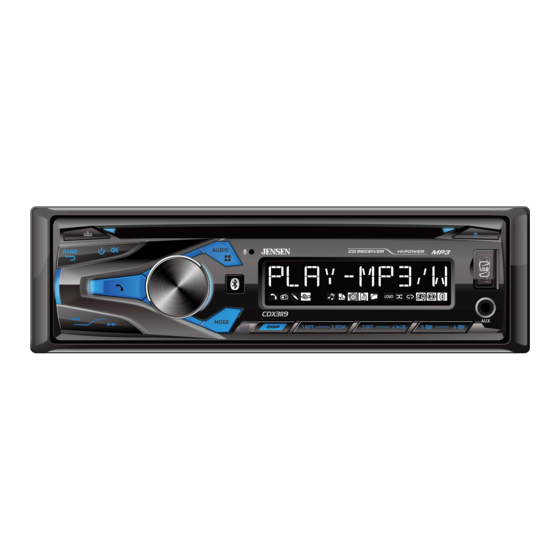

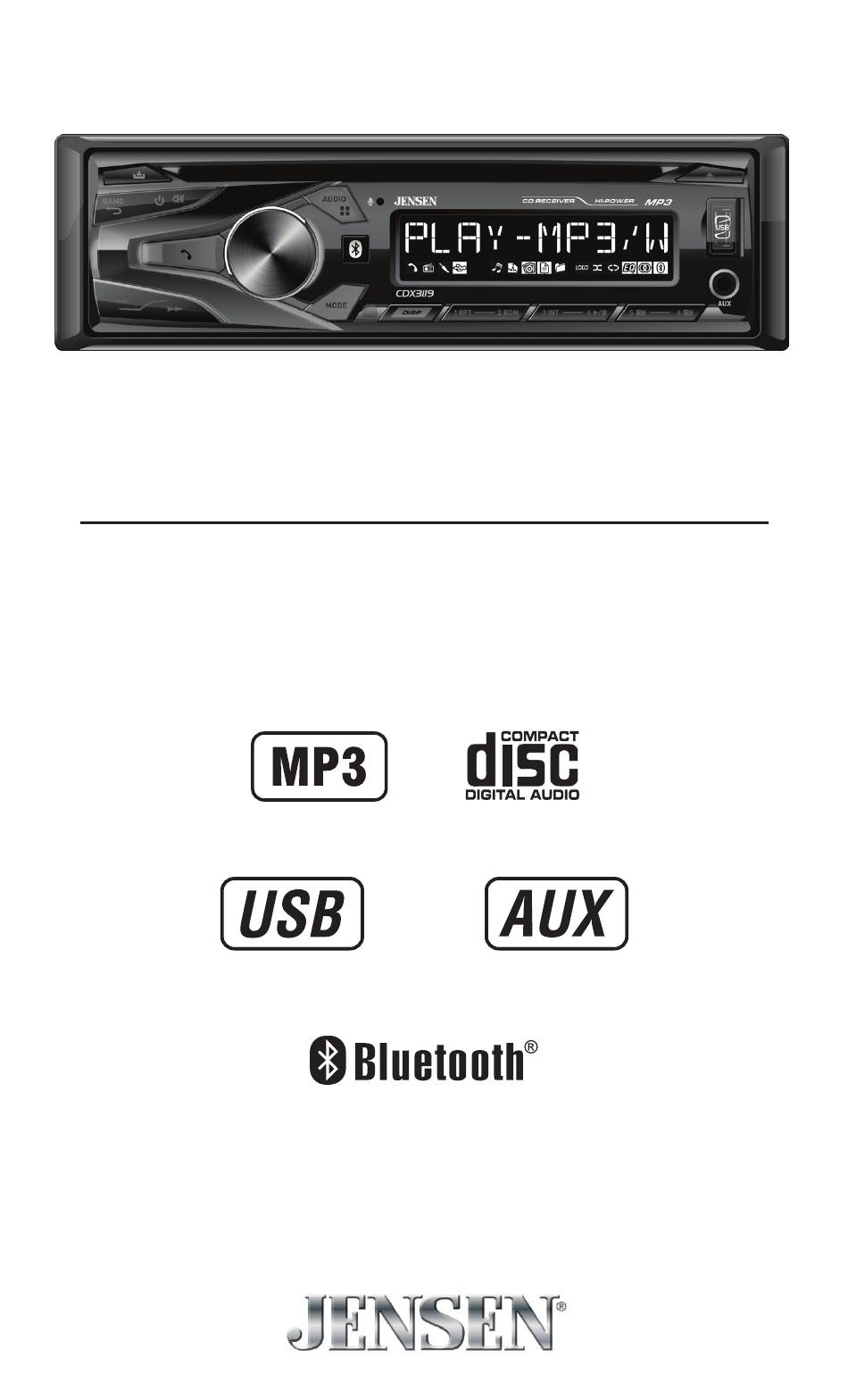

- Page 1 CDX3119 INSTALLATION/OWNER'S MANUAL AM/FM/CD Receiver...
- Page 2 CDX3119 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
- Page 3 CDX3119 INSTALLATION Wiring Diagram Antenna Connector Remote Turn On Connect to amplifier or power antenna. Insulate wire if not used. 10 AMP AGC Fuse FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio.
- Page 4 CDX3119 OPERATION Control Locations Release Preset 6 / Folder Up Band / Go Back Preset 5 / Folder Down Power / Mute Preset 4 / Play / Pause Bluetooth Talk Preset 3 / Intro Volume Knob Preset 2 / Random Audio / Menu...
- Page 5 CDX3119 OPERATION Remote Control Mode Preset 6 / Folder Up Volume Up Mute Power AS/PS Audio Preset 5 / Folder Down Tune / Track Up Preset 4 / Random Volume Down Preset 1 / Play/Pause Band Bluetooth Talk Preset 3 / Repeat...
- Page 6 NOTE: CD and USB modes will not appear unless a CD is inserted or USB device is connected. The CDX3119 offers a 3.5 mm auxiliary input port on the Auxiliary Input front panel of the unit for connecting an audio device, MP3 player, etc.
- Page 7 CDX3119 OPERATION General Operation - Setup Menu Menu Function Options Action Auto Station Press the volume knob to seek and save 6 strong stations in AUTO STORE Store the current band. (Tuner mode only) LOCAL OFF Activates distance tuning (Tuner mode only). Local/Distance Activates local tuning for strong station reception only (Tuner ...
- Page 8 CDX3119 OPERATION General Operation Audio Press AUDIO momentarily to select between Bass, Treble, Balance and Fader. BASS TREBLE BALANCE FADER LOUD SOURCE LEVEL Bass Press AUDIO until BASS appears then rotate volume knob left/right to adjust ( -6 minimum / +6 maximum).
- Page 9 CDX3119 OPERATION AM/FM Tuner Operation Seek Tuning Press TUNE or TUNE momentarily to seek to the next strong station. Manual Tuning Press and hold TUNE or TUNE until "MANUAL" appears, then press TUNE or TUNE momentarily to change radio frequency up or down one step at a time.
- Page 10 CDX3119 OPERATION CD Player Operation Insert CD With the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. Eject CD Press EJECT to eject the CD. The unit will change to previous mode of operation. If the disc is not removed within 10 seconds, the unit will reload the disc.
- Page 11 CDX3119 OPERATION CD Player Operation - MP3 Files Playing an MP3 CD When an MP3 encoded disc is first inserted, “DISC READ" will appear in the display. Depending on the number of files and folders, this may take several seconds. Displaying Information Press DISP to select between song title, artist, file name, folder name, track number, and clock/elapsed time.
- Page 12 CDX3119 OPERATION CD Player Operation - MP3 Files Media Compatibility The following types of discs/files are compatible: • CD-ROM (ISO), CD-R, CD-RW • CD-DA • MP3 data The following types of discs/files are not compatible: • Discs recorded with Track At Once or packet writing • MP3 PRO format •...
- Page 13 CDX3119 OPERATION CD Player Operation - MP3 Files Additional An internal buffer provides ESP (Electronic Skip Protection) MP3Information to virtually eliminate skipping. When playing a disc recorded with regular audio files (CD-DA or .WAV) and MP3 files, the unit will play the MP3 files only.
- Page 14 CDX3119 OPERATION USB Operation Connecting a USB Device To play MP3 files from most USB mass storage devices, line (sold separately) up the USB connector and insert the USB device into the unit's USB port. Playing Music When a USB device is first connected, “USB READ” will appear in the display and playback will begin momentarily.
- Page 15 CDX3119 OPERATION USB Operation Displaying Information When a file is accessed, the clock and elapsed time will be displayed. Press DISP momentarily to select beween song title, artist, file name, folder name, track number and clock/ elapsed time. "NO TITLE" will be displayed if no song title information is available.
- Page 16 CDX3119 OPERATION USB Operation Character Support Maximum character display information • Track name – 32 character maximum • Directory name – 32 character maximum • *Song title – 32 character maximum • *Artist name – 32 character maximum *Song title and artist name will only be displayed if included with the MP3 file.
- Page 17 CDX3119 OPERATION USB Operation Additional Only MP3 files with filename extension (.mp3) can be MP3Information played. Do not attempt to play non-MP3 files with the MP3 extension. Sampling Frequency Rates 8kHz ~ 48kHz Transfer Bit rates 32kbps ~ 320kbps constant Variable bit rates Note: Some files may not play or be displayed correctly, depending on sampling rates and bit rates.
- Page 18 CDX3119 OPERATION Bluetooth Operation ® Before you can use a Bluetooth device, it must be paired and Pairing a New Device connected. Make sure that Bluetooth is activated on your device before you begin the pairing process. The unit broadcasts the pairing signal constantly when no devices are currently connected.
- Page 19 CDX3119 OPERATION Bluetooth Operation ® Recent Calls List Press SELECT from Bluetooth mode to view recent calls dialed, received or missed while connected to the head unit. Turn the volume knob to cycle through the recent phone numbers. Press SELECT or to dial Redialing the last number...
- Page 20 CDX3119 OPERATION Bluetooth Operation ® Streaming Audio Operation The unit supports A2DP (advanced audio distribution profile) wireless streaming audio from your Bluetooth mobile device directly to your head unit. You can also control your music from the front panel of the head unit using AVRCP (audio video remote control profile).
- Page 21 CDX3119 OPERATION Troubleshooting Problem Cause Action Yellow wire not connected or incorrect Check connections for proper voltage Red wire not connected or Unit will not turn on voltage (11~16VDC) incorrect voltage (no power) Black wire not connected Check connection to ground Fuse blown Replace fuse...
- Page 22 CDX3119 OPERATION Limited One Year Warranty This warranty gives you specific legal What to do? rights. You may also have other rights 1. Before you call for service, check the which vary from state to state. troubleshooting guide in your owner’s manual. A slight adjustment of any Dual Electronics Corp.
- Page 23 CDX3119 OPERATION FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 24 CDX3119 OPERATION Specifications CD Player Frequency response: 20Hz-20kHz Channel separation @ 1kHz: >60dB D/A converter: 1 Bit FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 8.5dBf 50dB quieting sensitivity: 10dBf Stereo separation @ 1kHz: >30dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: <42dBu...
- Page 25 CDX3119 OPERATION Notes...
- Page 26 Dual Electronics Corp. Toll Free: 888-921-4088 www.jensenmobile.com ©2019 Dual Electronics Corp. All rights reserved. The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. Other trademarks and trade names are those of their respective owners. NSA0119-V01...
