M26(Rev. 1.1) User Manual

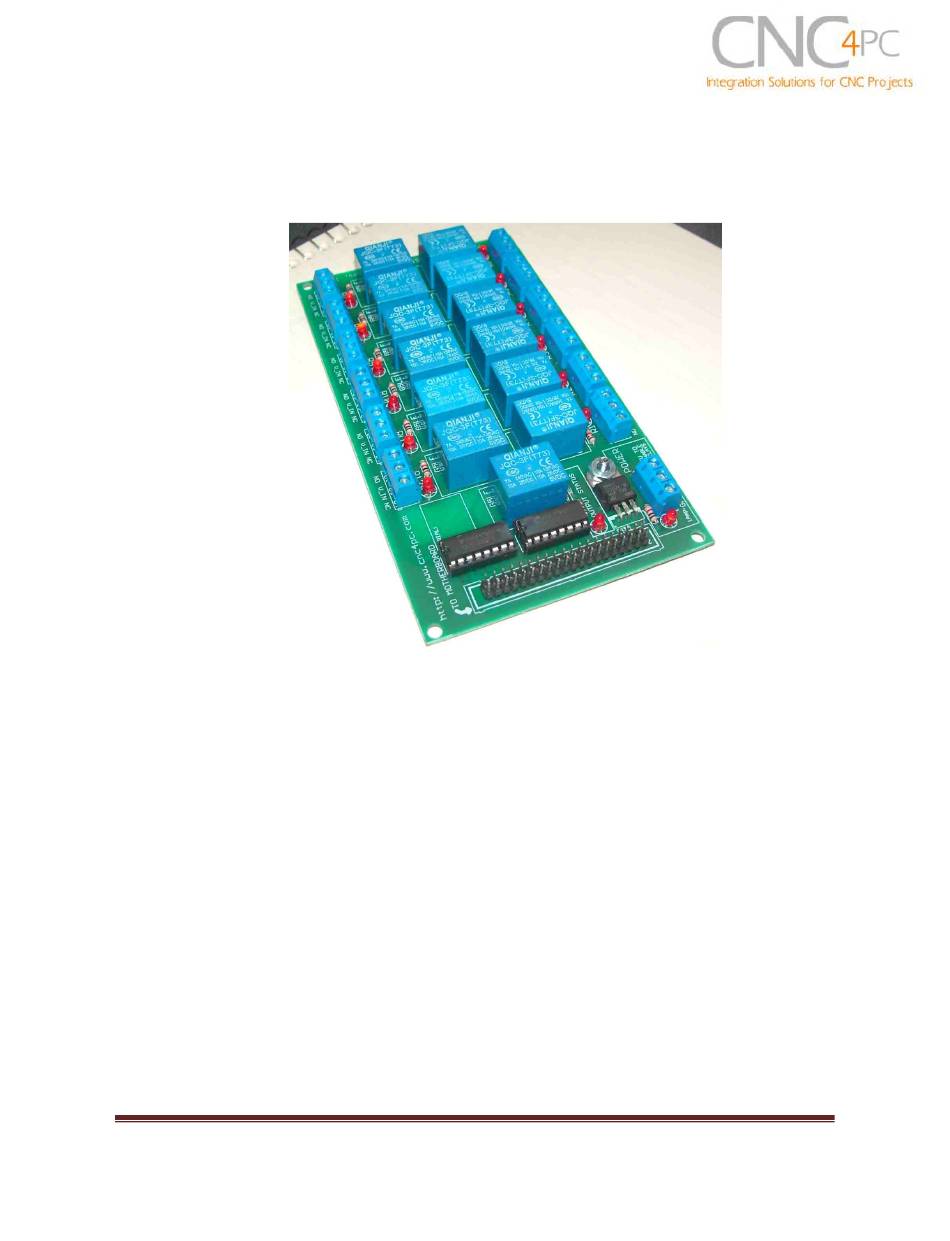

M26- 12R EXPANSION BOARD Rev. 1.1
1. Overview
This board provides 12 electromechanical relays with NO (Normally Open) and NC
(Normally Closed) connections.
2. Features
12
Electromechanical
•
with NO and NC positions.
• Screw-On connections for all
terminals.
Revision: 12/08/2009
User manual Rev. 1
relays
http://cnc4pc.com/TechDocs/M26R1_1_User_Manual.pdf
• Status
LEDs
connections. No more guessing.
You can SEE all your signals.
• External Enable Pin (EN). The
board has a pin that allows you to
enable/disable all the relays at
once.
on
all
relays
1/3
