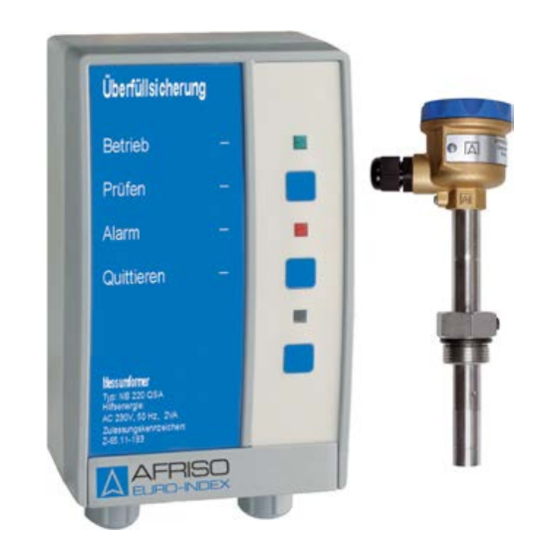

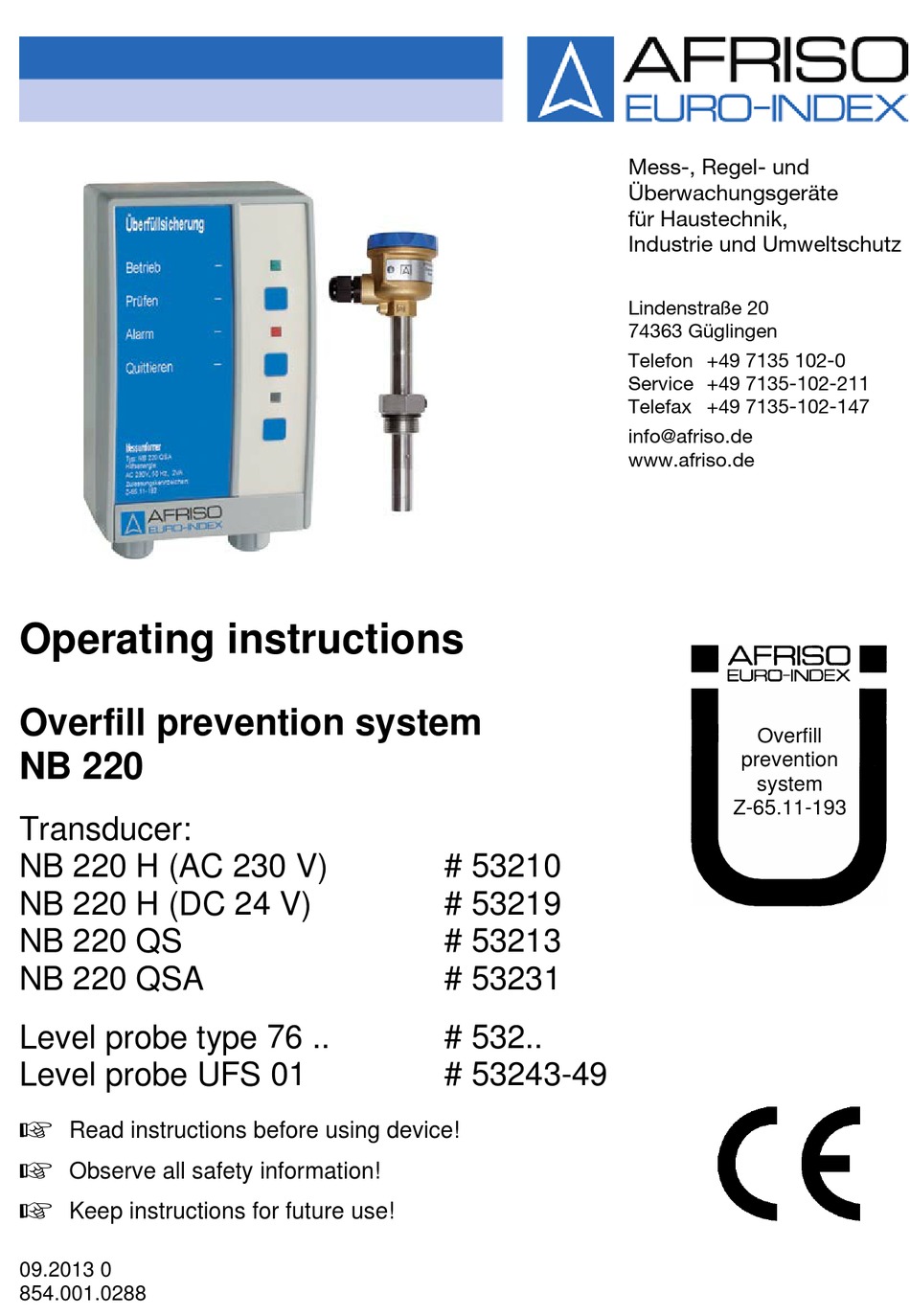

Operating instructions
Overfill prevention system
NB 220
Transducer:
NB 220 H (AC 230 V)
NB 220 H (DC 24 V)
NB 220 QS
NB 220 QSA
Level probe type 76 ..
Level probe UFS 01
Read instructions before using device!
Observe all safety information!
Keep instructions for future use!
09.2013 0
854.001.0288
# 53210
# 53219
# 53213
# 53231
# 532..
# 53243-49
Mess-, Regel- und
Überwachungsgeräte
für Haustechnik,
Industrie und Umweltschutz
Lindenstraße 20
74363 Güglingen
Telefon +49 7135 102-0
Service +49 7135-102-211
Telefax +49 7135-102-147
info@afriso.de
www.afriso.de
Overfill
prevention
system
Z-65.11-193
Advertisement
Table of Contents
Related Manuals for Afriso EURO-INDEX NB 220
Summary of Contents for Afriso EURO-INDEX NB 220
- Page 1 Operating instructions Overfill prevention system Overfill NB 220 prevention system Z-65.11-193 Transducer: NB 220 H (AC 230 V) # 53210 NB 220 H (DC 24 V) # 53219 NB 220 QS # 53213 NB 220 QSA # 53231 Level probe type 76 ..
-
Page 2: Table Of Contents
Function test ....................24 Operation ....................... 25 Maintenance ......................25 Troubleshooting ..................... 26 10 Decommissioning, disposal ................... 26 11 Spare parts and accessories ................. 27 12 Warranty ........................ 27 13 Copyright ....................... 27 14 Customer satisfaction .................... 27 NB 220... - Page 3 15 Addresses ......................27 16 Appendix ........................ 28 16.1 Certificate of expert ..................28 16.2 Approval documents................... 29 NB 220...
-
Page 4: This Instruction Manual
Explanation of symbols and typeface Symbol Meaning Prerequisite for an activity Activity consisting of a single step Activity consisting of a several steps Result of an activity • Bulleted list Indication on display Text Highlighting Highlighting NB 220... -
Page 5: Safety
The overfill prevention system NB 220, consisting of a transducer and a level probe, may only be used to avoid overfilling of contain- ers. The overfill prevention system NB 220 is only suitable for operation with stationary containers and stationary-use containers used for the storage of the following liquids. -
Page 6: Predictable Incorrect Application
Any use other than the application explicitly permitted in this instruc- tion manual is not permitted. Predictable incorrect application The overfill prevention system NB 220 must never be used in the fol- lowing cases: • Hazardous area (Ex) and liquids If the device is operated in hazardous areas, sparks may cause deflagrations, fires or explosions. -
Page 7: Modifications To The Product
The manufacturer shall not be liable for misprints. Product description The overfill prevention system NB 220 consists of a level probe and a transducer. The level probe and the transducer are connected by means of a two-wire signal cable. -
Page 8: Function
+60 °C) and 2 minutes (at an ambient temperature of -25 °C). Transducer type NB 220 H The transducer converts the changes in resistance of the PTC ther- mistor into relay switching with binary signal output. The relay is de-... - Page 9 LED at the transducer signals that the system is ready to operate. In addition, the alarm units mentioned above can also be connected. Transducer type NB 220 QSA The transducer converts the changes in resistance of the PTC ther- mistor into relay switching with binary signal output. The scanner in- tegrated into the transducer continuously monitors the function of the PTC thermistor.
-
Page 10: Operating Modes
Level probe Transducer Fig. 2: Overfill prevention system at stationary containers 1 Transducer 2 AFRISO event reporting system 3 Internet 4 E-mail 5 Mobile phone 6 Fax 7 Telephone Fig. 3: AFRISO event reporting system for remote reporting NB 220... -
Page 11: Versions
UFS 01 Probe tube Ø 16 mm, process connection G¾, stainless steel, -25 °C to +50 °C fluid temperature Table 2: Transducer Type Version NB 220 H Visual alarm, one voltage-free changeover contact NB 220 QS Visual and audible alarm, external connections connected to auxiliary power... -
Page 12: Technical Specifications
Fig. 5: Level probe types 76 A and 76 N Connection cable, 3 m Probe length, embossed Marking groove Screw fitting Locking screw Screw fitting G¾ Probe tube PTC thermistor Response point Response length Probe length Fig. 6: Level probe type 76 E NB 220... - Page 13 Probe length Fig. 7: Level probe type 76 C, 76 M Embossed probe length Marking groove Locking screw O ring Screw fitting G¾ Response point Response length Check dimension Probe length Fig. 8: Level probe for UFS 01 NB 220...
- Page 14 Plastic POM GF 25 % O ring Elastomer Viton Type 76 E Screw fitting Plastic PE-HD Seal Probe tube Stainless steel 1.4301-1.4571 Sensor holder Plastic POM GF 25 % O ring Viton Type 76 M Screw fitting Brass NB 220...
-
Page 15: Dimensional Drawings And Technical Specifications
Probe tube/sensor holder (with- Stainless steel 1.4301-1.4571 out seal) 4.2 Dimensional drawings and technical specifications Probe Green pilot lamp Fig. 9: NB 220 H Relay Green pilot lamp Audible alarm Visual alarm and acknowledge button Fig. 10: NB 220 QS... - Page 16 NB 220 QS 230 V, 50 Hz Power input Max. 4 VA or 6 W Mains fuse NB 220 QSA M 32 mA Output circuit NB 220 H Outputs 1 voltage-free changeover contact ≤ 250 V; ≤ 4 A, cos ϕ ≥ 0.7; max. 500 VA Alternating voltage ≤...
-
Page 17: Approvals, Tests And Conformities
4.0-8.8 mm 8.0-12.5 mm Approvals, tests and conformities NB 220 has the Technical Approval of the German Institute for Build- ing Technology with the approval number Z-65.11-193 and complies with the Construction Products Directive (89/106/EEC), the EMC Di- rective (2004/108/EC) and the Low Voltage Directive (2006/95/EC). -
Page 18: Transport And Storage
Type 76 ..: In the case of short connections, you may also use a smaller cable cross section. The level probes 76 C, 76 E and 76 M are equipped with a cable end 2 x 1 mm², standard 3 m long. Use a suitable terminal box to connect the cable. NB 220... -
Page 19: Adjusting The Level Probe
The response length is embossed in the case of level probes with a fixed response length. The response length is the distance between the hex face and the marking groove at the protective sleeve of the sensor at the lower end of the level probe. NB 220... -
Page 20: Mounting The Transducer
The maximum ambient temperature at the transducer must not be exceeded. In the case of outdoor installation, protect the transducer from direct atmospheric influences and mount it into an additional housing with degree of protection IP 54 or higher. Open the transducer. NB 220... - Page 21 Mount the bottom part to the wall 3 Fixate the control unit by screwing the with the screws shipped with the bottom lug to the wall. unit. Connect the unit electrically, see chapter 6.4, page 22. Close the transducer. NB 220...
-
Page 22: Electrical Connection
Relay Visual alarm Acknowledgement Audible alarm, can be acknowledged Fig. 13: NB 220 QS CAUTION Mains voltage at relay outputs of NB 220 QS. No connection of external voltage possible. Level probe Output, cannot be acknowledged Power supply Max. 500 m, 2 x 1 mm² or max. -
Page 23: Commissioning The Device
Output for connection of signal or control equipment, cannot be acknowledged Output, can be acknowledged Power supply Fig. 15: NB 220 QSA Commissioning the device Level probe and transducer have been mounted as per chap- ter 6, page 18. -
Page 24: Function Test
The overfill prevention system and the connected signal equip- ment must respond. Transducer NB 220 QSA The complete overfill prevention system can be tested with the "Test" button. Hold down the "Test" button for 30 seconds. -
Page 25: Operation
Replacing the mains fuse (NB 220 QSA only) Mains voltage is interrupted and cannot be switched on. -
Page 26: Troubleshooting
The electronic inserts can be easily separated and the device consists of recyclable materials. If you do not have the opportunity to dispose of the used device in accordance with environmental regulations, please contact us for possibilities to return it. NB 220... -
Page 27: Spare Parts And Accessories
Customer satisfaction is our prime objective. Please get in touch with us if you have any questions, suggestions or problems concerning your product. 15 Addresses The addresses of our worldwide representations and offices can be found on the Internet at www.afriso.de. NB 220... -
Page 28: Appendix
Check dimension Y = in the tank (tank type) or as per standard Number of Technical Approval of the German Institute for Building: Manuf. no.: Volume in litres: Owner/Operator + location of system: Installation company: Date, signature: NB 220... -
Page 29: Approval Documents
Appendix 16.2 Approval documents NB 220... - Page 30 Appendix NB 220...
- Page 31 Appendix NB 220...
- Page 32 Appendix NB 220...
- Page 33 Appendix NB 220...
- Page 34 Appendix NB 220...
- Page 35 Appendix NB 220...
- Page 36 Appendix NB 220...
- Page 37 Appendix NB 220...
- Page 38 Appendix NB 220...
- Page 39 Appendix NB 220...
- Page 40 Appendix NB 220...
- Page 41 Appendix NB 220...
- Page 42 Appendix NB 220...
- Page 43 Excerpt from the approval principles of the German Institute for Building Technology Excerpted from "Approval principles for safety equipment of contain- ers and pipes. Overfill prevention systems". Publications of the Ger- man Institute for Building Technology (DIBt), series B, issue 6.2, ver- sion: May 1999. NB 220...
- Page 44 Appendix NB 220...
- Page 45 Appendix NB 220...
- Page 46 Appendix NB 220...
- Page 47 Appendix NB 220...
- Page 48 Appendix NB 220...
- Page 49 Appendix NB 220...
- Page 50 Appendix NB 220...
- Page 51 Appendix NB 220...
