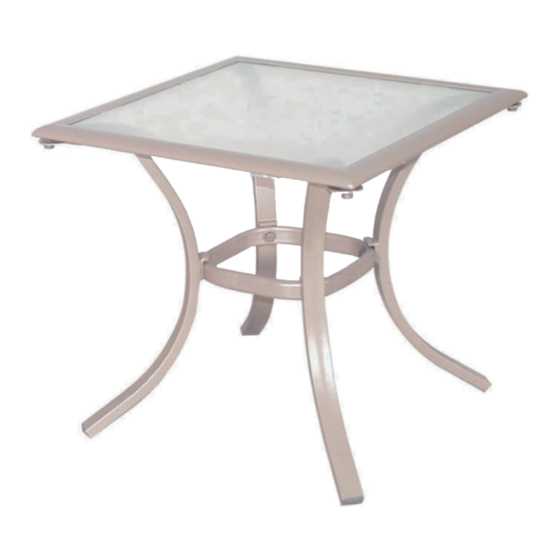

Courtyard Creations TGS20SK Assembly Instructions

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE

PARTS LIST

PART
MATERIAL CODE
NO.
1
TGS20SK-CS01
2
TGS20SK-CS02
3
62TMS20SKY101
4
17C01A0706002Y4
Attention:
Make sure that each bolt needed for all steps
matches the corresponding figure to ensure
proper assembly.
Step 1:
Place the table top (#1) onto a non-abrasive surface,
such as a carpet, with its underside facing upwards.
Use the correct bolts as indicated. Do not tighten any of the bolts until is completely
!
assembled.
Do not sit or stand on this table.
!
Do not discard of any of the packaging until you have checked that you have all of the parts
!
and fittings required.
Keep children away during assembly. This item contains small parts that can be swallowed
!
by children. Children should always be under direct adult supervision while using this
product.
Retain these assembly instructions for future reference.
!
Quote the following FQC NO. when contacting the service center.
!
INTENDED FOR RESIDENTIAL USE ONLY.
TGS20SK
PART Q'TY
1
TABLE TOP
4
LEG
1
CENTER CONNECTOR
4
BOLT M6*16
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
PAGE 1 OF 2
PART
MATERIAL CODE
NO.
5
17C01A0709002Y4
6
17FA05040301-Y4
7
18000337002
8
17KAA0201----Y4
FIGURE 1
COURTYARD CREATIONS INC.
PART Q'TY
4
BOLT M6*25
8
WASHER d6.5*D13*1.0
8
BOLT CAP M6
1
HEX.KEY WRENCH 6MM
