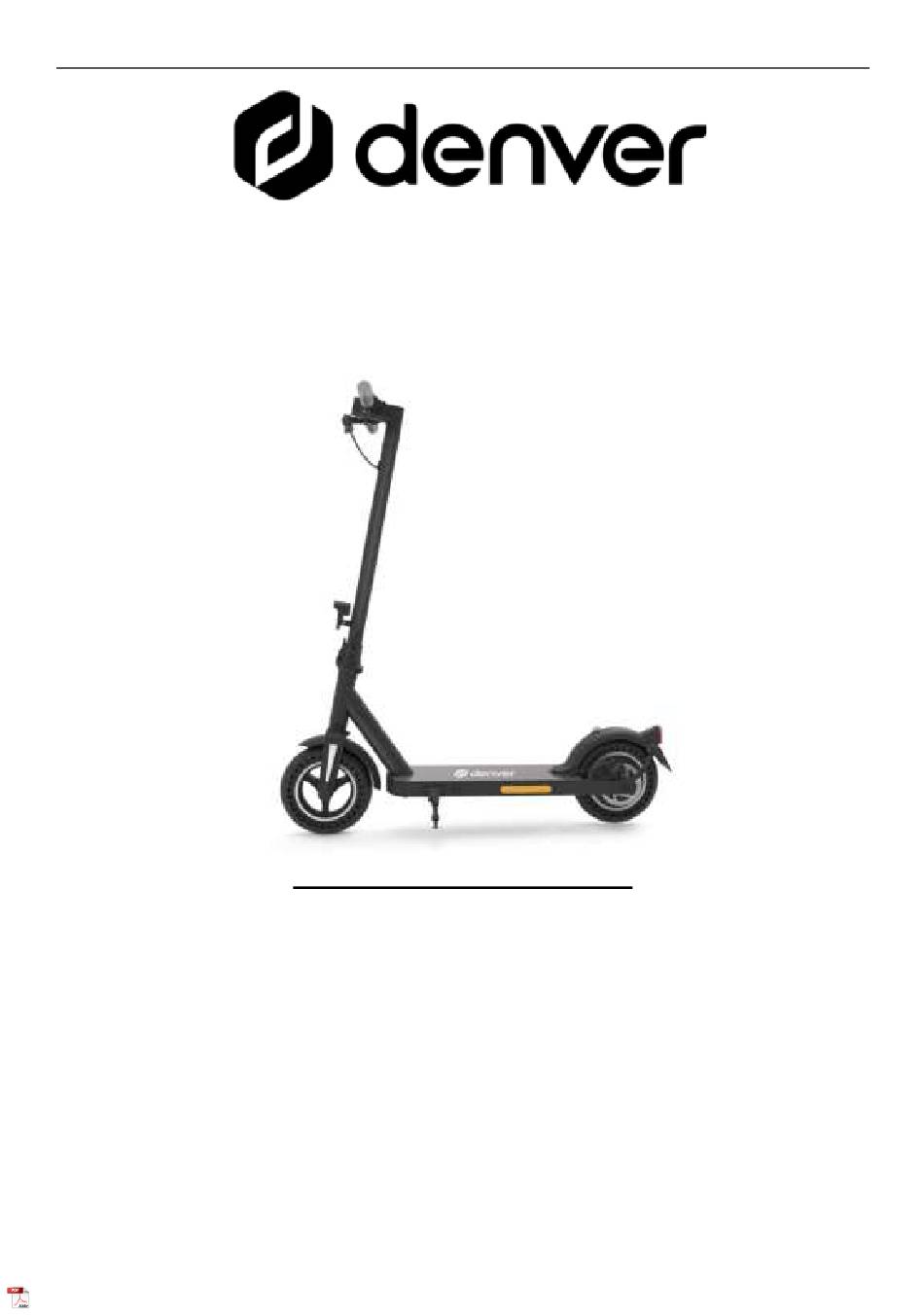

User manual
SEL-10350 ODIN
facebook.com/denverelectronics
Before operating this vehicle, read all the instructions for safe assembly and operations. User's manual can guide you through
the functions and usage of Electric scooter. Before using this Electric scooter, familiarize yourself with how to operate, so
that you can keep the Electric scooter in the best condition possible.
This appliance can be used by children aged from 14 years and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
Version 1.0
1
Advertisement
Table of Contents
Related Manuals for Denver SEL-10350 ODIN
Summary of Contents for Denver SEL-10350 ODIN
- Page 1 User manual SEL-10350 ODIN facebook.com/denverelectronics Before operating this vehicle, read all the instructions for safe assembly and operations. User’s manual can guide you through the functions and usage of Electric scooter. Before using this Electric scooter, familiarize yourself with how to operate, so that you can keep the Electric scooter in the best condition possible.
-
Page 2: Table Of Contents
Table of Contents About the product ..........................3 Product and Accessories ........................55 Unfolding and folding the scooter ......................6 Assembling the device ..........................7 Charging the scooter ..........................9 Intended Use ............................10 Safety Instruction ..........................10 Maintenance ............................11 Operational control ........................ -
Page 3: About The Product
1 About the product Important! This electric scooter must be charged and stored in a safe way. For safety reason and protect battery life, never charge the electric scooter in temperatures below 5°C or above 45°C. Equally, always disconnect the electric scooter with the power cable once fully charged. Always use the supplied power adapter to charge the electric scooter. - Page 4 - Frame structure Always make sure that required maintenance is conducted professionally by certified agents. 1.2 Traffic rules Do not ride the scooter if you are below 14 years of age. Do not ride the scooter with more than 1 person at a time. Do not ride the scooter faster than 20 km/h.
-
Page 5: Product And Accessories
2 Product and Accessories Throttle Bell Display Electric brake Disc Brake Front K-light Back K-light Foldable Front shock absorption 10” wheel size Disc brake Screw for handlebar charger Allen key x 4 attachment x 4... -
Page 6: Unfolding And Folding The Scooter
3 Unfolding and folding the scooter Unfolding the scooter 1）Place the electric scooter on its wheels like below. Unlock the hook on the handlebar. 2) Pull up the handle in a gentle way. Raise the handle slowly. Close the lock lever located on the lower part of the handlebar support tube. 3) The electric scooter is unfolded as soon as you hear the rod clicks into place. -
Page 8: Assembling The Device
4 Assembling the device Before using the scooter it is necessary to install the handlebar on the frame main vehicle. 1). Insert the handlebar into the vehicle frame. 2). After matching the holes in the handlebar with those of the frame, insert the screws and tighten them well;... - Page 9 3). Mounting the front K-light Please Install the K-Light into the light bracket and use the Allen key to fix the screw and nut well.
-
Page 10: Charging The Scooter
5 Charging the scooter Connect the supplied power adapter to the charging port of the electric scooter. Charging port... -
Page 11: Intended Use
6 Intended Use The Electric scooter is neither a means of transport nor sports equipment, but a device for personal entertainment. The Electric scooter for domestic use only and only by a person aged at least 14 with a technically permissible total weight (kg): 120kg. This includes scooter weight 16.5Kg. The other parameters for the permissible operation of the Electric scooter are defined in the section (“10. -
Page 12: Maintenance
loose. This is because the distance between the brake pad and the rear wheel becomes too small, possibly leading to a blocked rear wheel. Avoid applying too much force or stepping on the rear fender permanently. This may cause the fender to loosen or damage the spring holding the fender. - Page 13 Make sure that the battery is charged at regular intervals, even if you do not use the electric scooter for a long time. This is to prevent damage to the battery, caused by low voltage over an extended period. Avoid draining the battery completely. It is best to charge while there is still power on it. This will extend battery life.
- Page 14 Electric scooters come with different wheels but can in general be separated into tires with inflatable inner tubes and solid wheels. For inflatable tires, please make sure to keep the right pressure, as hard tires will last longer. If the wheel seems wobbly even after screws are tightened, the bearings might be worn down and need replacement WARNING Please make sure to check that the steering system is correctly adjusted and that all connection...
-
Page 15: Operational Control
9 Operational control For better operation, please read the instructions carefully. 9.1 Control and display Speed Gear level Front /Back K- Light Battery level 9.2 Button and speed transfer Only power buttons in the display, press”Power” button with 5s, the scooter power on! Press one time to turn on /off the Front /Back K- Light. -
Page 16: Electric Scooter Riding
You have to manually move the Electric scooter with your foot before the accelerator button works. 10 Electric scooter riding Press “Power” buttons to adjust speed level. You have to manually move the Electric scooter with your foot before the accelerator handle are working. -
Page 18: List Of Parameters
Rated input voltage (V) 100-240 Rated output voltage (v) Rated current (A) Charging Time(h) Electric scooter Model: SEL-10350 ODIN Input: 100V-240V~, 50/60Hz, 2.5A(Max) Output: 42V Max Speed: 20km/h Weight: 17.5kg Year Of manufacture: 2021 Technically permissible total weight (kg): 120kg Battery: 36V/10Ah Power Consumption: ≤... -
Page 19: Electric Scooter Safe Parking
12 Electric scooter safe parking Once you have stopped the Electric scooter, get off it and press the side stand down with your right foot to support the Electric scooter. The side stand is located on the left-hand side of the Electric scooter below the foot board. - Page 20 WARNING Do not try to make a turn too fast. WARNING Lithium battery inside. WARNING If the Electric scooter switches off, the system will block the vehicle automatically. It can be released again by pressing On/Off. Use the device only at temperatures between -10 °C and +45 °C. ●...
- Page 21 Do not carry any objects while riding. ● Make sure you have a clear vision in front of you to ride the Electric scooter safely. ● While riding, your feet must always be on the foot board. ● The Electric scooter can accommodate only one person. ●...
- Page 22 The product must not be charged over extended periods. ● Always keep an eye on the device throughout the charging cycle. ● Charge the device only at temperatures between 0 °C and +45 °C. ● When charging at lower or higher temperatures, there is a risk that the battery performance will be ●...
- Page 23 Make sure to read manual carefully before using the Electric scooter. ● The Electric scooter must only be used on dry and level ground ● For domestic use only ● The Electric scooter may not be used by anyone under age of 14 years ●...
- Page 24 Please notice - All products are subject to change without any notice. We take reservations for errors and omissions in the manual. ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.
- Page 25 Use your legs to give speed, for around 100 m, and then connect the charger. The engine in the front wheel will this way help to activate the charging function and it will charge normally. (fully charge takes 3 hours if using this way) Please enter: www.denver-electronics.com to obtain the electronic version of the manual.
- Page 26 WARNINGS Please read the manual completely and the instructions below before using the product. Product names: SEL-10350 ODIN Product type: Electric scooter Year of manufacturing: 2021 • Note: ONLY use the supplied charger labelled XHK-800B-4220 with the following output voltage to charge this Electric scooter: 42V –...
- Page 27 27 Aug, 2021 Inter Sales A/S • Omega 5A, Soeften • 8382 Hinnerup • Denmark • Tel: +45 86 22 61 00 • Fax: +45 86 22 81 00 Homepage: www.denver-electronics.com • A/S Reg. No. 223906 • Vat. No. DK18831678...
