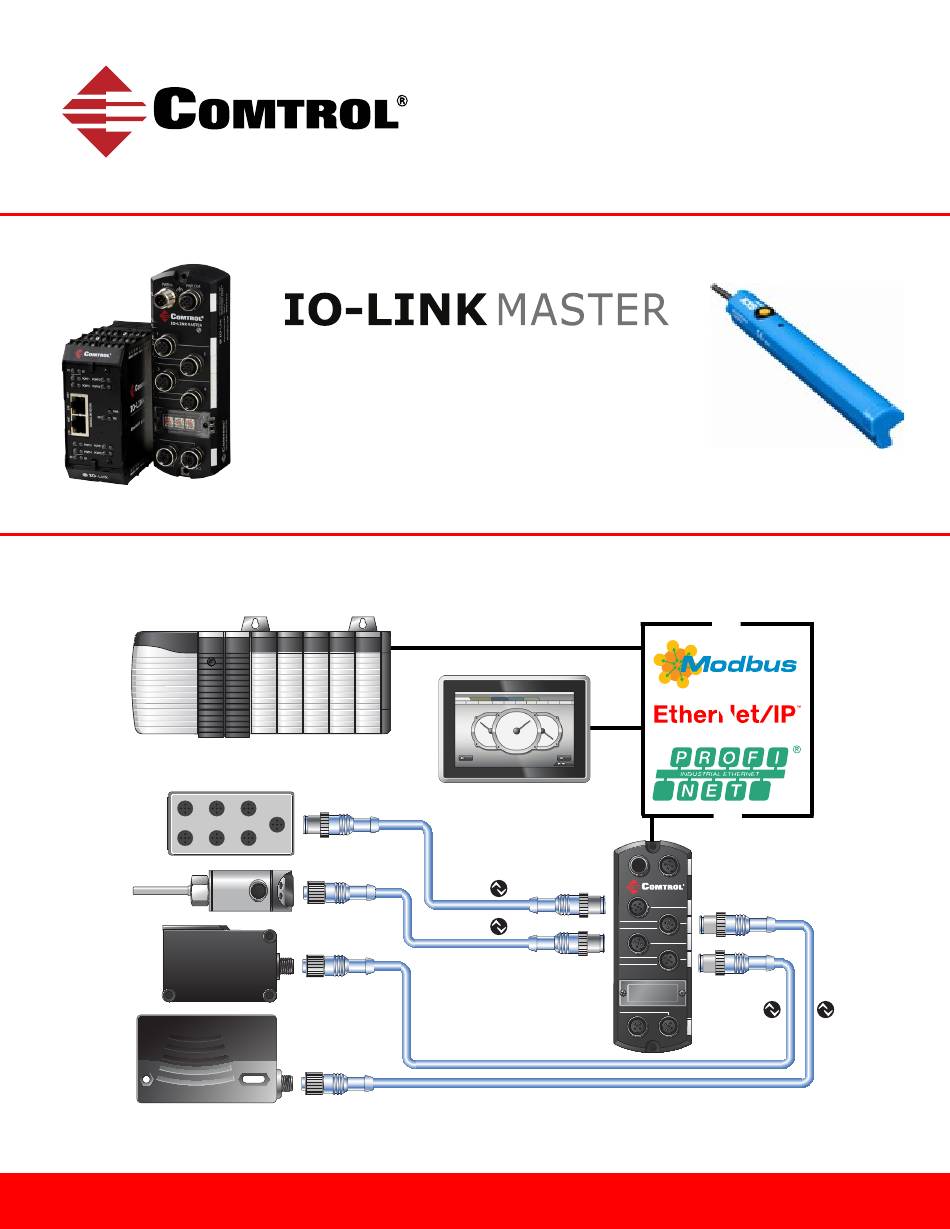

- Page 1 COMPATIBILITY REPORT SICK MPS-032TLTQ0 Magnet Position Sensor IO-LINK SENSORS/ACTUATORS DCS/HMI/SCADA...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ..................................2 Test Report Overview ................................3 IO-Link Master – IO-Link Diagnostics Page ..........................3 Configuring IO-Link Settings Settings ............................. 4 After Configuring Friendly Port Names ..........................5 Setting Up Passwords ................................6 IO-Link Device Configuration ..............................7 Loading the IODD Files ............................... -
Page 3: Test Report Overview
Using the device validation features • This report is based on Application Base v1.3.18 on the IO-Link Master 4-EIP (IP67 machine-mountable). This report does not illustrate all Comtrol IO-Link Master features, such as: EtherNet/IP and Modbus/TCP configuration, uploading the latest software, or network configuration. Nor does this report discuss data storage because after analysis, this v1.1 sensor does not include a list of indexes in Index 3 that dictates the parameters that should be uploaded or downloaded. -
Page 4: Configuring Io-Link Settings Settings
Configuring IO-Link Settings Settings During IO-Link configuration, the Minimum Cycle Time can be left to the default value, as the IO-Link Master negotiates the required Cycle Time with each IO-Link device. The Device Validation feature is discussed later in this report after using the IO-Link Master to configure the IO-Link devices. -
Page 5: After Configuring Friendly Port Names
After Configuring Friendly Port Names You can use the IO-Link Configuration page to customize the Port Name. The IO-Link Diagnostics page now displays friendly port names. 5/21/2015 Comtrol IO-Link Master | SICK MPS-032TLTQ0 Magnetic Position Sensor... -
Page 6: Setting Up Passwords
The IO-Link Master ships from the factory without passwords and administrative permissions are granted. You can use the Advanced | Accounts page to set up passwords for the IO-Link Master. Admin, Operator, and User permissions are defined in the help system on the Accounts page. -
Page 7: Io-Link Device Configuration
IO-Link Device Configuration You can use the Comtrol IO-Link Master to configure the IO-Link device. If an IODD file is loaded, you may want to use the IO-Link Device – Port table (GUI) to change parameter • settings. If an IODD file is not loaded, you can use the IO-Link Device ISDU Interface on the bottom of the IO-Link •... - Page 8 4. Click the UPLOAD button. 5. The IO-Link Master loads only the files required and may issue a message like this, click Ok: 5/21/2015 Comtrol IO-Link Master | SICK MPS-032TLTQ0 Magnetic Position Sensor...
- Page 9 6. Click the IODD FILENAME if you want to view the .xml file. 7. If desired, review the IODD file in your browser. 5/21/2015 Comtrol IO-Link Master | SICK MPS-032TLTQ0 Magnetic Position Sensor...
-
Page 10: Verifying That The Correct Iodd Files Loaded
Verifying that the Correct IODD Files Loaded The IO-Link Master can verify that the correct IODD files for a product have loaded using the IO-Link Device Configuration Summary page. 1. Click Attached Files | Summary. 2. Verify that the port that the device is connected to displays an xml file name in the IODD Name field, as illustrated in this image. -
Page 11: Changing Parameters Using The Io-Link Device - Port Table (Gui)
The appropriate IODD file must be loaded for the port to use the IO-Link Device – Port table (GUI). 1. Click Attached Devices | Port 4 (in this example). The IO-Link device displays as expected in the PORT page. 5/21/2015 Comtrol IO-Link Master | SICK MPS-032TLTQ0 Magnetic Position Sensor... - Page 12 2. Click the EDIT button and change several parameters and click SAVE. 5/21/2015 Comtrol IO-Link Master | SICK MPS-032TLTQ0 Magnetic Position Sensor...
- Page 13 3. Click the REFRESH button to verify the changes have occurred. 4. In this case, click the EDIT button and then click the Key Unlock button. 5/21/2015 Comtrol IO-Link Master | SICK MPS-032TLTQ0 Magnetic Position Sensor...
- Page 14 5. Click the CANCEL button so that the changes take effect. 6. Optionally, click the REFRESH button to verify the change was made. 5/21/2015 Comtrol IO-Link Master | SICK MPS-032TLTQ0 Magnetic Position Sensor...
-
Page 15: Changing Parameters Using The Isdu Interface
• You must enter the decimal value for the ISDU Block Index and ISDU Sub-index. • The following screenshots do not illustrate the system responses. The IO-Link Master responds with a command • executed notification. This illustrates using the GET command to determine the index format. - Page 16 2. This shows changing Index 24 to **********. Enter the value and click SET. 3. Optionally, verify that the values were changed. 4. Optionally, click the REFRESH button. 5/21/2015 Comtrol IO-Link Master | SICK MPS-032TLTQ0 Magnetic Position Sensor...
-
Page 17: Using The Device Validation Feature
This feature prevents any IO-Link device other than the MPS-032TLTQ0 sensor to function on this port. 1. Click Configuration | IO-Link. 2. Click EDIT and set Device Validation mode to Compatible. 3. Click the GET ATTACHED button. 4. Click SAVE. 5/21/2015 Comtrol IO-Link Master | SICK MPS-032TLTQ0 Magnetic Position Sensor... - Page 18 5. Remove the sensor from the port and connect another IO-Link device (not a MPS-032TLTQ0). 6. The IO-Link LED on the IO-Link Master is now flashing red to indicate that an incompatible device is connected to the port. In addition, the IO-Link Diagnostics page displays that an incompatible device is attached to the port.
-
Page 19: Compatible Device Attached To Port
This feature permits any MPS-032TLTQ0 sensor to function on this port. 1. Click Configuration | IO-Link. 2. Click EDIT and set Device Validation mode to Compatible. 3. Click the GET ATTACHED button. 4. Click SAVE. 5/21/2015 Comtrol IO-Link Master | SICK MPS-032TLTQ0 Magnetic Position Sensor... - Page 20 5. Remove the sensor from the port and connect another MPS-032TLTQ0. 6. Observe that the IO-Link port is operational and that the IO-Link Diagnostics page displays the other sensor as operational. 5/21/2015 Comtrol IO-Link Master | SICK MPS-032TLTQ0 Magnetic Position Sensor...
-
Page 21: Identical Device Validation
1. Click Configuration | IO-Link. 2. Click EDIT, set Device Validation mode to Identical. 3. Click the GET ATTACHED button. 4. Click SAVE. 5. Connect the other MPS-032TLTQ0 (S/N: 15070117). 5/21/2015 Comtrol IO-Link Master | SICK MPS-032TLTQ0 Magnetic Position Sensor... - Page 22 6. The IO-Link LED on the IO-Link Master is now flashing red to indicate that the identical device is not connected. In addition, the IO-Link Diagnostics page displays the port status as Inactive and that the Wrong Sensor is displayed in the Last Events field at the bottom of the page.
-
Page 23: Configuring Data Validation
1. In the IO-Link Configuration page, click EDIT, set Data Validation mode to Strict or Loose. 2. Click the GET ATTACHED button. 3. Click SAVE. If the sensor does not meet the criteria, the port shuts down and an error is issued. 5/21/2015 Comtrol IO-Link Master | SICK MPS-032TLTQ0 Magnetic Position Sensor...
