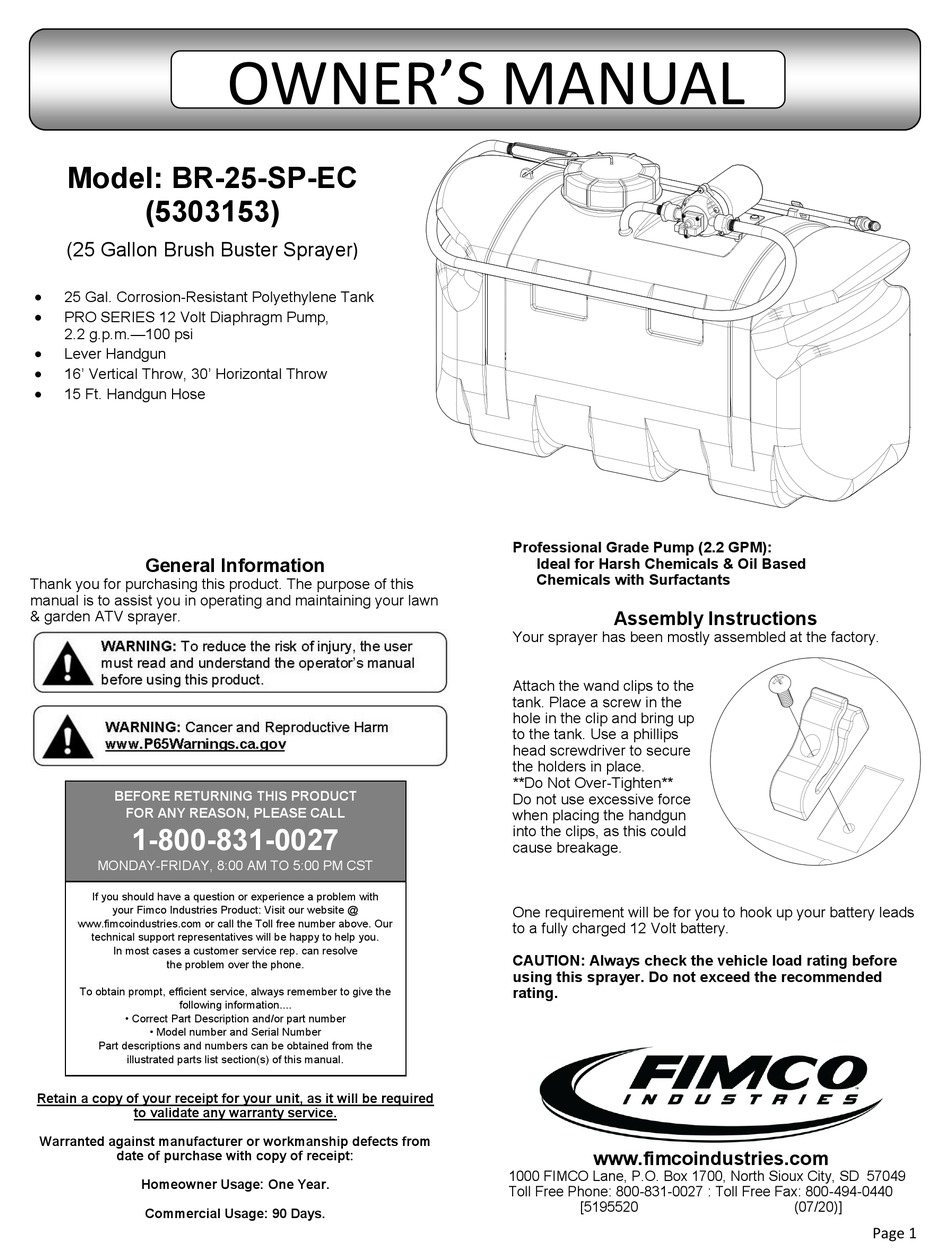

AG SPRAY BR-25-SP-EC Owner's Manual

Model: BR-25-SP-EC
(5303153)
(25 Gallon Brush Buster Sprayer)

25 Gal. Corrosion-Resistant Polyethylene Tank

PRO SERIES 12 Volt Diaphragm Pump,
2.2 g.p.m.—100 psi

Lever Handgun

16' Vertical Throw, 30' Horizontal Throw

15 Ft. Handgun Hose

General Information

Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden ATV sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your unit, as it will be required
to validate any warranty service.
Warranted against manufacturer or workmanship defects from
date of purchase with copy of receipt:
Homeowner Usage: One Year.
Commercial Usage: 90 Days.
OWNER'S MANUAL
Professional Grade Pump (2.2 GPM):
Ideal for Harsh Chemicals & Oil Based
Chemicals with Surfactants

Assembly Instructions

Your sprayer has been mostly assembled at the factory.
Attach the wand clips to the
tank. Place a screw in the
hole in the clip and bring up
to the tank. Use a phillips
head screwdriver to secure
the holders in place.
**Do Not Over-Tighten**
Do not use excessive force
when placing the handgun
into the clips, as this could
cause breakage.
One requirement will be for you to hook up your battery leads
to a fully charged 12 Volt battery.
CAUTION: Always check the vehicle load rating before
using this sprayer. Do not exceed the recommended
rating.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5195520 (07/20)]
Page 1
