FuzzDog HellGazer II Quick Start Manual

Twin circuits to destroy your delicate sensibilities

Advertisement

Quick Links

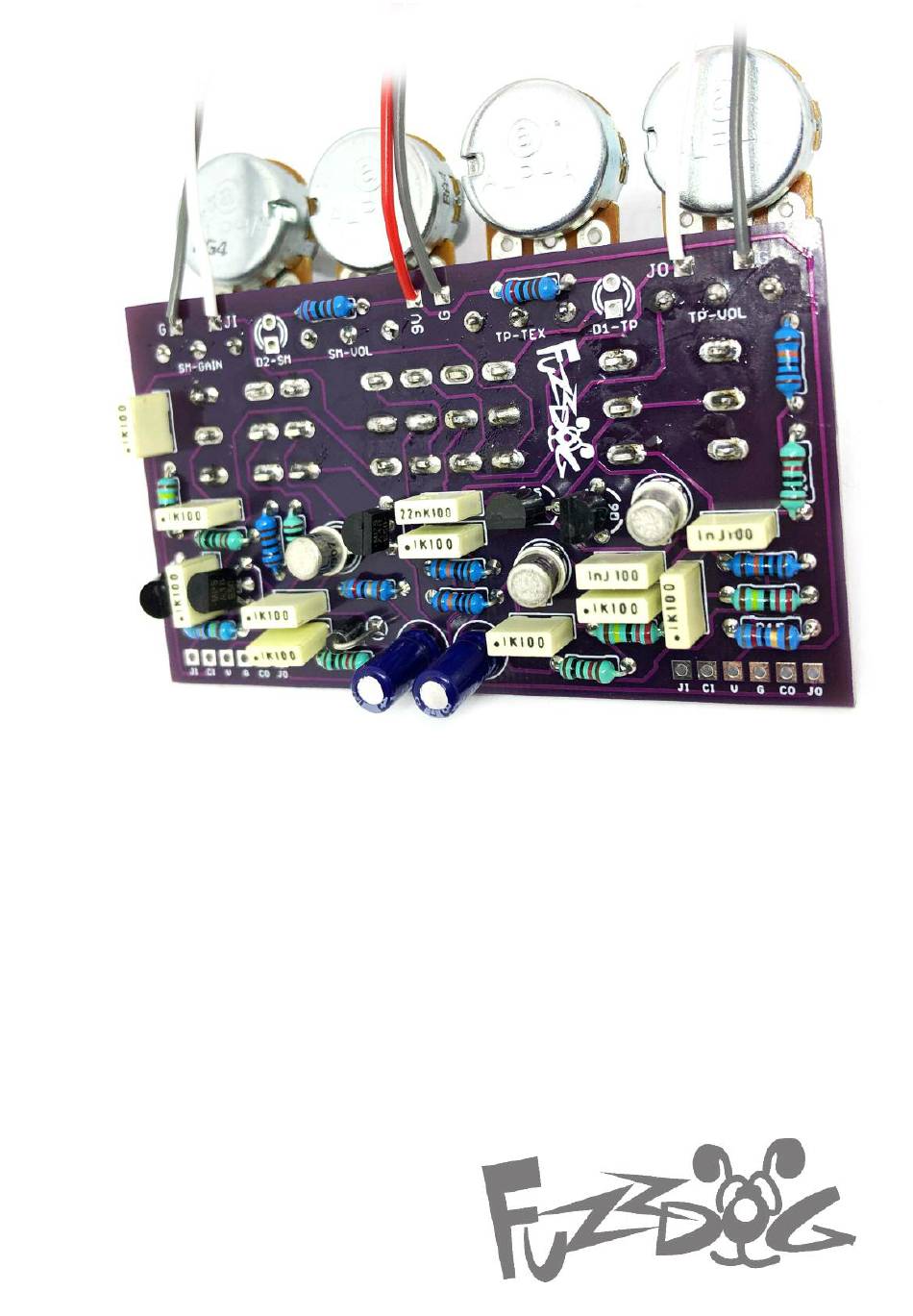

HellGazer II
Twin circuits to destroy your
delicate sensibilities
Contents of this document are ©2021 Pedal Parts Ltd.
No reproduction permitted without the express written
permission of Pedal Parts Ltd. All rights reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the HellGazer II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for FuzzDog HellGazer II

  • Page 1 HellGazer II Twin circuits to destroy your delicate sensibilities Contents of this document are ©2021 Pedal Parts Ltd. No reproduction permitted without the express written permission of Pedal Parts Ltd. All rights reserved.
  • Page 2: Important Notes

    Important notes If you’re using any of our footswitch daughterboards, DOWNLOAD THE DAUGHTERBOARD DOCUMENT • Download and read the appropriate build document for the daughterboard as well as this one BEFORE you start. • DO NOT solder the supplied Current Limiting Resistor (CLR) to the main circuit board even if there is a place for it.
  • Page 3 Schematic + BOM 47u elec 1N4001 100n 100n Q1-3 MPSA18 100n 2N2907 100n Q5-6 MPSA18 100n Q7-8 2N2222 100n SM-GAIN 100KA 100n SM-VOL 100KA 100n TP-TX 500KA 100K TP-VOL 100KA 100K 100n 100K 47u elec SWITCHES ALL ON-ON 47-100K* CLR-SM 2K2** CLR-TP 2K2**...
  • Page 5 The power and signal pads on the PCB conform Be very careful when soldering the diode, to the FuzzDog Direct Connection format, so can transistors and LEDs. They’re very sensitive to be paired with the appropriate daughterboard for heat. You should use some kind of heat sink quick and easy offboard wiring.
  • Page 6: Toggle Switches

    Toggle Switches If you aren’t using some of the toggle switches you need to place jumpers instead. ORDER SWITCHER Place jumpers from the centre pads to the lower pads as shown in red above. This will give you the standard format of right hand fuzz circuit (Soda) into left hand drive circuit (Ripper). If you’re really strange you can reverse that order by connecting the centre pads to the upper pads instead.
  • Page 7 JOINING THE BOARDS Connect the two footswitch daughterboards to the main PCB with wires or ribbon cables. Ensure the pads correspond, i.e. don’t get the switch boards upside down! Don’t forget the current limiting resistors (CLRs) for the LEDs. The fit vertically in the two pads marked CLR on the daughterboards, same side as the footswitches.
  • Page 9: Drilling Template

    6 mm This template is a rough guide only. You should ensure correct marking of your enclosure before drilling. You use this template at your own risk. Pedal Parts Ltd can accept no responsibility for incorrect drilling of enclosures. FuzzDog.co.uk...
