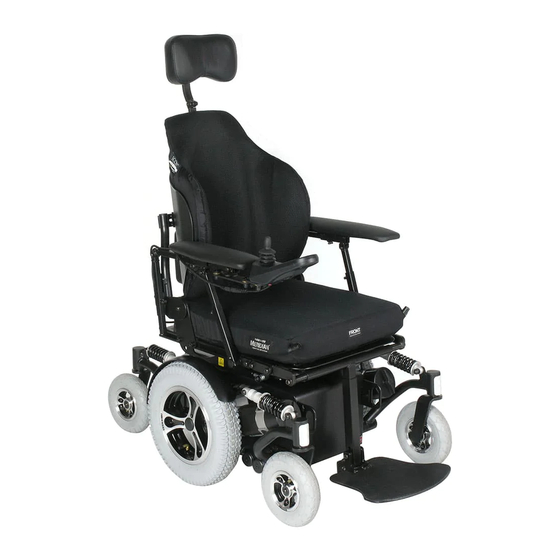

Electric wheelchair
Model
TA IQ RWD
Model
TA IQ FWD
Model
TA IQ MWD
Operating manual
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TA IQ RWD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TA Service TA IQ RWD

  • Page 1 Electric wheelchair Model TA IQ RWD Model TA IQ FWD Model TA IQ MWD Operating manual...
  • Page 2: Table Of Contents

    Use with products from other manufacturers When the electric wheelchair is used by another person Product life span Base position Overview Model TA IQ RWD Model TA IQ FWD Model TA IQ MWD Handling and care of the electric wheelchair Securing the wheelchair...
  • Page 3 Preparation for use Inspection before driving Charging the battery Position of the control module Description of functions Swing the control module out to the side of the armrest. Position of the armrest Checking the locking feature Leg supports Centralised leg support Electronic height adjustment Electronic folding of the footplate Adjusting the footplate height...
  • Page 4 Back support Electronically adjustable back support Back cushion Mechanically adjustable back support Angle adjustment via gas shocks Manual back support configuration Seat Seat cushions Adjusting seating comfort Seat rocker Adjustment of an electronic seat rocker Seat lift Headrest Adjusting the headrest Use of the headrest in disability vehicles Securing bags Safety belt...
  • Page 5 Operating range Driving characteristics when negotiating gradients Applicable standards Specifications in conformance with ISO 7176-15 for model TA IQ RWD Supplementary technical data for model TA IQ RWD Specifications in conformance with ISO 7176-15 for model TA IQ FWD Supplementary technical data for model TA IQ FWD...
  • Page 6 DOCUMENTATION OF SERVICING Warranty/guarantee Proof of warranty Service documentation upon sale or transfer...
  • Page 7: Symbols Key

    This Operating manual applies to the fol- wheelchair for the first time and follow lowing models: the instructions carefully. Model TA IQ RWD If children or teenagers will be using the Model TA IQ FWD wheelchair, they should first read this...
  • Page 8: Delivery And Arrival

    – joint contractures/joint injuries ☞ Ask your doctor, therapist or authorised distributor about these and any other – or other conditions risks concerning your electric wheel- When purchasing a particular product, you chair. should furthermore take into account the DELIVERY AND ARRIVAL disabled individual’s physical and mental condition, age, home living conditions and All products undergo strict quality control...
  • Page 9: Adjustment

    strong sunlight, extreme cold or salt without using the original manufacturer’s water. parts, this may constitute a resale of the wheelchair. This means that your distrib- – Sand, dust, dirt or other particles may utor may need to re-assess the terms and embed themselves in moving parts, conditions of sale and undertake a new risk causing the components to stop work-...
  • Page 10: Product Life Span

    The authorised distributor’s Service and maintenance manual contains information about the reuse and re-purposing of your wheelchair. PRODUCT LIFE SPAN We estimate that the product should have an expected average life span of 5 years in- sofar as the product is used for the intended purpose and all maintenance and service requirements are adhered to.
  • Page 11: Overview

    OVERVIEW Model TA IQ RWD The overview shows the main components and controls of the electric wheelchair. No. Name (1) Headrest (2) Back support (3) Armrest (4) Seat cushion (5) Footplate (6) Swivel castor (7) Drive/push mode lever (8) Locking armrest handle...
  • Page 12: Model Ta Iq Fwd

    Model TA IQ FWD The overview shows the main components and controls of the electric wheelchair. No. Name (1) Headrest (2) Back support (3) Armrest (4) Seat cushion (5) Calf support (6) Footplate (7) Drive wheel (8) Front headlight (9) Locking armrest handle (10) Control module (11) Drive/push mode lever (12) Nameplate...
  • Page 13: Model Ta Iq Mwd

    Model TA IQ MWD The overview shows the main components and controls of the electric wheelchair. No. Name (1) Headrest (2) Back support (3) Armrest (4) Seat cushion (5) Calf support (6) Footplate (7) Front swivel castor (8) Drive/push mode lever (9) Locking armrest handle (10) Drive wheel (11) Control module...
  • Page 14: Handling And Care Of The Electric Wheelchair

    HANDLING AND CARE BRAKES OF THE ELECTRIC Always brake in a careful and timely man- WHEELCHAIR ner, especially when driving toward peo- ple or going downhill! Securing the wheelchair Service brake The electric wheelchair must be secured as follows so that it does not accidentally roll: The electric motors work as a mechanical brake, stopping the wheelchair smoothly 1.
  • Page 15: Activating The Brakes

    Activating the brakes The wheelchair should not be able to be pushed while the brakes are engaged. To apply the brakes, move the drive/push mode levers on both sides approximately 45° toward the wheelchair chassis and into the drive (upright) position [1]. ☞...
  • Page 16: Main Circuit Breakers For All Electrical Functions

    Main circuit breakers for all electrical functions As a standard feature, all TA Service wheel- chairs manufactured after 26/05/2021 come equipped with a main circuit breaker for all electrical functions, also known as a Flight kit [3]. Removing the key from the Flight kit allows you to interrupt the wheelchair’s power...
  • Page 17: Drive/Push Mode

    Drive/push mode The electric wheelchair should only be set on push mode or pushed for the sake of manoeuvring or in emergency situations. This should only be done on flat terrain, with the chair in a standstill position. ☞ In push mode, the electromagnetic brakes are deactivated.
  • Page 18: Setting The Chair On Drive Mode

    Setting the chair on drive mode 1. Activate the brakes [2]. ☞ Follow the instructions in Activating the brakes on page 15. 2. Turn on the control module. ☞ See the ‘Control module’ chapter in the Operating manual. Now the electric wheelchair can be driven.
  • Page 19: Preparation For Use

    PREPARATION FOR USE Perform the following consecutive steps to prepare your electric wheelchair for use. ☞ Using the control module, charge the batteries before making your first trip. 1. Complete your preparations for driving. Move the levers into drive mode [1] to activate the motors.
  • Page 20 3. Check the position of the control mod- ule. ☞ For ordinary driving, move the control module forward and inward until it set- tles into the stop position [3]. 4. Turn on the control module. ☞ Depress the on/off button (4) on the control module.
  • Page 21: Inspection Before Driving

    Inspection before driving Before driving, you should inspect the fol- lowing: ☞ The charge level of the battery ☞ The configuration of the maximum speed setting – See the ‘Control module’ chapter in the Operating manual. Charging the battery Do not place any objects in the sock- et aside from the battery charger plug! –...
  • Page 22 3. Turn on the battery charger/plug the battery charger power cord into an ap- propriate socket. ☞ The charging process has now start- ☞ The battery will not charge if the ther- mal fuse is turned off (2)! 4. Once the charging process is complete, disconnect the battery charger from the mains and pull the charger plug out of the control module socket.
  • Page 23: Position Of The Control Module

    Position of the control module For ordinary driving, move the control mod- ule forward and inward [1]. Description of functions The push buttons and symbols on the mod- ule are all described in detail in the Operat- ing manual in the ‘Control module’ chapter. Swing the control module out to the side of the armrest.
  • Page 24: Leg Supports

    LEG SUPPORTS Before transferring to the electric wheel- chair, it must be secured to prevent acci- dental movement. ☞ Follow the instructions in Securing the wheelchair on page 14. Centralised leg support To make it easier to climb in and out of the chair, the single footplate [1] or dual foot- plates [2] can be folded up [3]+[4].
  • Page 25: Electronic Height Adjustment

    Electronic height adjustment When using the leg support, keep your hands away from any movable parts. – Risk of a crushing injury! If you place your feet on the footplate be- fore the leg support has fully descended, there is a - Risk of a crushing injury! Make sure that the leg supports have ad- equate ground clearance! ☞...
  • Page 26: Adjusting The Footplate Height

    Adjusting the footplate height When adjusting the height of the foot- plate(s), never touch or handle the adjust- ment mechanism or the underside of the footplate(s). – Risk of a crushing injury! Make sure that the leg support and the footplate(s) have adequate ground clear- ance! ☞...
  • Page 27: Moving A Leg Support To The Side

    Moving a leg support to the side The leg supports can be swung out to the sides to enable easier transfer to/from the electric wheelchair or to allow you to drive close to e.g. a cupboard, bed, bathtub or similar [1]. –...
  • Page 28: Electronic Adjustment Of The Leg Support Angle

    Electronic adjustment of the leg support angle When using the leg support, keep your hands away from any movable parts. – Risk of a crushing injury! Use the control module to raise [1] or lower [2] the angle of the leg support to a suitable level.
  • Page 29: Armrests

    ARMRESTS Avoid using the armrests [1] to carry or lift the wheelchair. Driving with the armrest in an upright or backwards position is dangerous [4]! Rocker armrests Folding up the armrests To fold up an armrest, depress the button lock (2). This allows the armrest to be guid- ed upwards [3].
  • Page 30: The Armrest's Locking Feature

    The armrest’s locking feature Risk of a crushing injury when the armrest engages with the button lock! For drive mode, the armrests should be swung forward and down [1]. Checking the armrest’s locking feature Check that the locks are functional by brief- ly tugging on the armrest.
  • Page 31: Swingable Armrest

    Swingable armrest When swinging the armrest back to the base position, keep your hands away from the surrounding area – Risk of a crushing injury! Swinging the armrest toward the chair 1. To swing the armrest in [2], loosen the tightening handle (1).
  • Page 32: Back Support

    BACK SUPPORT Whenever you adjust the back support, always make sure that the electric wheel- chair is on a level surface. Otherwise, there is a risk that the wheelchair may flip over on an incline! Electronically adjustable back support The back support [1] can be adjusted elec- tronically.
  • Page 33: Mechanically Adjustable Back Support

    Mechanically adjustable back support Angle adjustment via gas shocks The angle of the back support [1] is adjust- able [2]+[3]. 1. Pull down the gas shock’s locking lever (4) to adjust the angle of the back sup- port. 2. With the lever (4) in this unlocked po- sition, move the back support to the desired angle.
  • Page 34: Manual Back Support Configuration

    Manual back support configuration The angle of the back support is adjustable [1]+[2]. 1. Pull out the adjusting bolt (3) to config- ure the angle of the back support. 2. With the adjusting bolt (3) pulled out slightly, move the back support to the desired angle.
  • Page 35: Seat

    SEAT Seat cushions The seat cushion [1] is mounted to the baseplate with a Velcro band and is remov- able [2]. After cleaning or maintenance, put the seat cushion back on and secure it [1]. – Velcro fastening Adjusting seating comfort The air pressure can be adjusted for im- proved comfort by opening and closing the valves (3).
  • Page 36: Seat Rocker

    Seat rocker The seat rocker [4] should only be adjust- ed while the electric wheelchair is on a flat, horizontal surface. There is a risk that the wheelchair flips over on an incline. Move the leg support(s) into the base po- sition before adjusting the seat rocker.
  • Page 37: Seat Lift

    Seat lift Before adjusting the seat height, make sure that the surrounding area is free of obstructions. – Risk of injury! Do not touch or come into contact with the bottom of the seat before or during seat height adjustment – Risk of a crush- ing injury! Adjustment of the seat lift must only be done with the wheelchair securely parked...
  • Page 38: Headrest

    HEADREST The headrest is completely removable and both the height and angle are adjustable. Adjusting the headrest To adjust the height of the headrest or re- move it, loosen [2] the tightening handle (1). Use of the headrest in disability vehicles This headrest is approved for transport in motorised disability vehicles!
  • Page 39: Safety Belt

    SAFETY BELT Make sure no objects get stuck under the belt! – This prevents unpleasant pressure points. Aftermarket installation of a seat belt must only be done by an authorised re- pair centre. The belt must not be used as a restraint system for securing either the user or the wheelchair during transport in a motor vehicle.
  • Page 40: Lights

    LIGHTS If used outdoors or on public roads, the electric wheelchair should be equipped with an LED lighting system (1)+(2). The lights can be operated via the control module. ☞ See the ‘Control module’ chapter in the Operating manual. ☞ If visibility is poor, especially in the dark, the lights should be turned on so that you can see better and are more easily seen.
  • Page 41: Transfer And Transport

    TRANSFER AND TRANSPORT The electric wheelchair must not be lifted by its back support, leg supports, armrest or upholstery! Keep the seat height and seat tilt in the base position during transport! Always turn the electric wheelchair off before lifting it! Loading/unloading Any parts that have been dismantled for loading should be stored in a safe place...
  • Page 42: Personal Transport In Motor Vehicles

    Personal transport in motor vehi- cles Keep the seat height and seat tilt in the base position when transporting passen- gers in a motor vehicle! The nameplate on your electric wheelchair indicates whether the chair is approved as a car seat for motor vehicle transport. ☞...
  • Page 43: Dahl Docking System

    TYRES Dahl docking system If the electric wheelchair is equipped with The tyres are made of a rubber compound a Dahl docking system for secure transport, and may leave marks that are difficult or im- follow the instructions in the docking sys- possible to remove on some surfaces (incl.
  • Page 44: Service Plan

    Service plan WHEN WHAT COMMENT Before driving In general: Perform the inspection alone or together with a helper. Check for proper function- ing. Inspecting the electro- Perform the inspection alone magnetic brake or together with a helper. Move drive/push If the electric wheelchair can mode levers on both sides be pushed, then the brake is to the ‘drive’...
  • Page 45 WHEN WHAT COMMENT Every 6 months Check See Cleaning on page 52. (depending on how – Cleanliness Perform this alone or together often the wheelchair is with a helper. – Overall condition used) Inspection Manufacturer’s recom- Performed by the distributor. mendation: –...
  • Page 46: Main Fuse

    Main fuse The thermal fuse’s fail-safe button must be pushed in. The main fuse consists of a thermal fuse (1) that pops out in the event of a current over- load. If the fuse (1) pops out, it must be pushed in again.
  • Page 47: Lights

    Lights The bulbs (1) + (2) are long-life LED bulbs. ☞ Any defective LED bulb must be re- paired by an authorised repair shop immediately. Running lights The lights must be adjusted so that the low- er edge of the beam lies approx. 3 metres ahead of the wheelchair with the seat tilt down in the base position.
  • Page 48: Troubleshooting

    Troubleshooting Malfunction Cause Solution The control module’s The battery fuse is defec- Change the defective fuse / battery indicator does tive or improperly mount- clean the contacts and insert not light up when con- it properly. nected. The power plug is not con- Inspect the connectors.
  • Page 49: Basic Safety Precautions

    BASIC SAFETY In direct sunlight, the seat cover/cushion, PRECAUTIONS armrest cushions, leg supports and han- dles/levers can reach temperatures above 41 °C. – This may injure unprotected skin! These safety precautions are an excerpt Park in the shade to prevent the surfaces of the Safety precautions and general in- on your electric wheelchair from getting structions for use, which is available on our...
  • Page 50: Exiting The Electric Wheelchair

    Exiting the electric wheelchair There is a risk of overturning when driving through curves or turning on an upward or Drive the wheelchair as close as possible to downward slope. where you plan to exit the chair. Avoid driving on upward or downward gra- ☞...
  • Page 51: Electrical System

    Carriage in public transport tions involving e.g. slopes and driving sur- faces with side gradients. Your electric wheelchair is not designed for Drive around obstacles, such as cracks or passenger transit in public transit vehicles. grooves in the roadway, railway tracks, sew- There may be limitations.
  • Page 52: Driving On Public Roads

    CLEANING Driving on public roads Comply with all national regulations for driv- Always turn off the electric wheelchair ing on public roads and ask your authorised before beginning any cleaning. distributor about any required accessories. Non-ionic detergents, solvents and es- The electric wheelchair can be delivered pecially alcohol may react with synthetic with accessory lights.
  • Page 53: Treated Surfaces

    Disinfection Always keep the lights clean and check that they are functioning properly before driv- If the product is used by multiple individu- ing. als (e.g. at a care institution), ordinary disin- ☞ Always protect the electrical compo- fectant should be used. nents from water and moisture! ☞...
  • Page 54: Repairs

    REPAIRS Precautions for long-term storage The following precautions are necessary if In principle, repairs should only be per- the wheelchair will not be used for a longer formed by authorised distributors. period of time: ☞ Charge the batteries for 16 hours at Assembly least once a month.
  • Page 55: Operating Manual For Distributors

    Operating manual for distribu- Programming driving characteristics tors The electric wheelchair’s driving character- istics can be configured via a programming On our website ‘www.ta-service.dk’ you can unit. find a Service and maintenance manual for this electric wheelchair that includes the ☞...
  • Page 56: Technical Data

    TECHNICAL DATA Operating range Our indicated nominal data are realistic, All the information in the ‘Technical data’ provided that ISO 7176-4 is fully complied chapter applies to the standard model. with. Measurement tolerances ±15 mm, ± 2° The operating range largely depends on Calculating the max.
  • Page 57: Applicable Standards

    Applicable standards The electric wheelchair fulfils the following standards: – EN 12184: 2014 – ISO 7176-8: 2014 – ISO 7176-19: 2008 ☞ Crash test evaluations, where the wheelchair was attached via the vehicle's braking system, were per- formed in accordance with the test- ing methods in Annex D.
  • Page 58: Specifications In Conformance With Iso 7176-15 For Model Ta Iq Rwd

    Specifications in conformance with ISO 7176-15 for model TA IQ RWD min. max. Overall length (measured with a 0° seat tilt) 940 mm 1060 mm Overall width 630 mm 720 mm Total weight 300 kg User weight (incl. payload) 140 kg...
  • Page 59 min. max. Top forward driving speed 6 km/h 12 km/h (depends on equipment) Minimum braking distance at top speed 2810 mm Operating range (at 6 km/h) 40 km (depends on battery capacity) Operating range (at 10 km/h and 12 km/h) 35 km (depends on battery capacity) Axle, horizontal position...
  • Page 60: Supplementary Technical Data For Model Ta Iq Rwd

    Supplementary technical data for model TA IQ RWD min. max. Noise level 70 dB(A) IP class IPX4 Min. turning radius 1150 mm Drive controller output 24 V/120 A Engine output 2 x 350 W Main fuse 80 A Lights (accessory)
  • Page 61 min. max. Drive wheel Tyres, max. 2.5 bars (36 psi/250 kPa) 364 x 75 mm diameter (14” x 3.5”) puncture-proof Batteries 2 x 12 V 75 Ah (5 h) / 80Ah (20 h) Enclosed, maintenance-free Max. battery dimensions (L x W x H) 260 x 168 x 215 mm Charging current...
  • Page 62: Specifications In Conformance With Iso 7176-15 For Model Ta Iq Fwd

    Specifications in conformance with ISO 7176-15 for model TA IQ FWD min. max. Overall length (measured with a 0° seat tilt) 985 mm 1100 mm Overall width 630 mm 720 mm Total weight 300 kg User weight (incl. payload) 140 kg User weight 136 kg When the product is used for seating in a motor vehicle...
  • Page 63 min. max. Operating range (at 6 km/h) 40 km (depends on battery capacity) Operating range (at 10 km/h and 12 km/h) 35 km (depends on battery capacity) Axle, horizontal position – mm – mm...
  • Page 64: Supplementary Technical Data For Model Ta Iq Fwd

    Supplementary technical data for model TA IQ FWD min. max. Noise level 70 dB(A) IP class IPX4 Min. turning radius 1170 mm Drive controller output 24 V/120 A Engine output 2 x 350 W Main fuse 80 A Lights (accessory) 24V LED type Payload 5 kg...
  • Page 65 min. max. Drive wheel Tyres, max. 2.5 bars (36 psi/250 kPa) 364 x 75 mm diameter (14” x 3.5”) puncture-proof Batteries 2 x 12 V 75 Ah (5 h) / 80Ah (20 h) Enclosed, maintenance-free Max. battery dimensions (L x W x H) 260 x 168 x 215 mm Charging current...
  • Page 66: Specifications In Conformance With Iso 7176-15 For Model Ta Iq Mwd

    Specifications in conformance with ISO 7176-15 for model TA IQ MWD min. max. Overall length (measured with a 0° seat tilt) 985 mm 1100 mm Overall width 630 mm 720 mm Total weight 305 kg User weight 140 kg User weight 136 kg When the product is used for seating in a motor vehicle (Dahl docking system, crash tested in accordance with ISO 7176-19)
  • Page 67 min. max. Operating range (at 6 km/h) 40 km (depends on battery capacity) Operating range (at 10 km/h and 12 km/h) 35 km (depends on battery capacity) Axle, horizontal position – mm – mm...
  • Page 68: Supplementary Technical Data For Model Ta Iq Mwd

    Supplementary technical data for model TA IQ MWD min. max. Noise level 70 dB(A) IP class IPX4 Min. turning radius 1150 mm Drive controller output 24 V/120 A Engine output 2 x 350 W Main fuse 80 A Lights (accessory) 24V LED type Payload 5 kg...
  • Page 69 min. max. Drive batteries 2 x 12 V 63 Ah (5 h) / 80Ah (20 h) Enclosed, maintenance-free Max. battery dimensions (L x W x H) 260 x 168 x 215 mm Charging current...
  • Page 70: Explanation Of The Labels On The Electric Wheelchair

    Explanation of the labels on the electric wheelchair Attention! Read the Operating manual and attached documentation. Do not lift the electric wheelchair by the armrests or leg sup- ports. Do not lift the wheelchair by any detachable parts. Drive mode Push mode Only push the wheelchair on a level surface.
  • Page 71: Explanation Of The Symbols On The Nameplate

    Explanation of the symbols on the nameplate Manufacturer Order number Serial number Date of production Allowable user weight Allowable total weight Allowable axle pressure Allowable upward gradient Allowable downward gradient Max. allowable speed The product is approved for use as a car seat. Max.
  • Page 72: Explanation Of The Washing Instruction Symbols

    Explanation of the washing instruction symbols (The symbols are in compliance with European standards.) Wash on gentle cycle at the maximum indicated temperature (°C). Wash on normal cycle at the maximum indicated temperature (°C). Hand wash only. Do not bleach. Not suited for the dryer.
  • Page 73 DOCUMENTATION OF Recommended safety inspection: 1st year (after no later than 12 months) SERVICING Stamp of speciality dealer: Vehicular data: Model: Signature: Packing slip no.: Location, date: Serial no. (SN): Next safety inspection in 12 months Date: Recommended safety inspection: 2nd year Recommended safety inspection: 3rd year (after no later than 12 months) (after no later than 12 months)
  • Page 74 WARRANTY/GUARANTEE steam-cleaning equipment or deliberate or accidental exposure of the components to Any lack of compliance with the Oper- water. ating manual or unprofessionally per- No liability shall be assumed for defects or formed maintenance work, especially malfunctions due to sources of radiation with respect to technical modifications such as high-transmission mobile phones, and add-ons (installed parts) without our...
  • Page 75 Proof of warranty Please complete! Can copy this as needed and send it to your distributor. Warranty/guarantee Model name: Packing slip no.: SN (refer to the nameplate): Date of delivery: Distributor’s stamp: Service documentation upon sale or transfer Vehicular data: Serial no.
  • Page 76 Your distributor TA Service A/S ta-service@ta-service.dk Centervej Syd 2 4733 Tappernøje www.ta-service.dk DENMARK +45 56 72 57 77 UM iQ - DK - 06.2021, vers. 1:0. We reserve the right to make technical changes. Original Operating manual.
