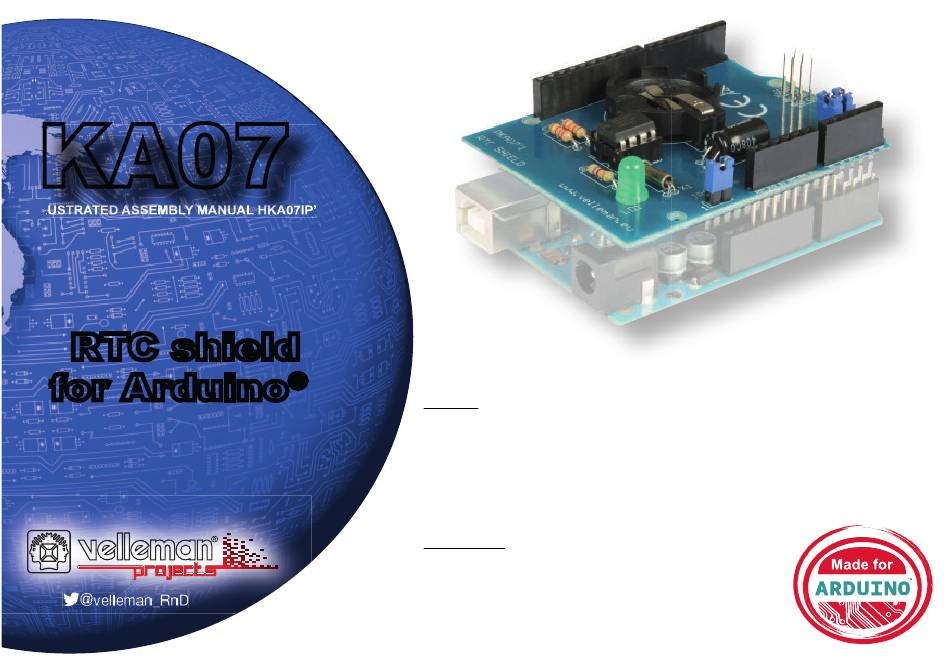

KA07
ILLUSTRATED ASSEMBLY MANUAL HKA07IP'1
RTC shield
Add a real time clock shield to your projects to ensure
accurate and easy timekeeping. While the shield keeps track
of time and date, the controller can focus on other tasks.
for Arduino
®
Features
• based on Maxim-Dallas DS1307 IC
• counts seconds, minutes, hours, date of month, day of the week, year and leap-year
• 12 or 24h system selectable
• AM/PM indication
• large user community
• requires 1 Arduino UNO™ (not included)
• stackable design: the shield can be stacked with other shields
Specifi cations
• I2C interface
• accuracy: 20ppm (depends on crystal)
• power consumption: 1.5mA
• with backup battery holder (500nA when running on battery)
• dimensions: 68 x 53mm / 2.67 x 2.08"
Advertisement
Related Manuals for Velleman KA07
Summary of Contents for Velleman KA07
- Page 1 KA07 ILLUSTRATED ASSEMBLY MANUAL HKA07IP’1 RTC shield Add a real time clock shield to your projects to ensure accurate and easy timekeeping. While the shield keeps track of time and date, the controller can focus on other tasks. for Arduino ®...
- Page 2 Subscribing our newsletter?, visit www.vellemanprojects.eu Forum Forum Participate our Velleman Projects Forum...
- Page 3 Velleman N.V. Legen Heirweg 33 9890 Gavere (België)
- Page 4 assembly 1. Assembly (Skipping this can lead to troubles ! ) Ok, so we have your attention. These hints will help you to make this project successful. Read them carefully. hints 1.1 Make sure you have the right tools: • A good quality soldering iron (25-40W) with a small tip. •...
- Page 5 DO NOT BLINDLY FOLLOW THE ORDER OF THE COMPONENTS ON THE TAPE. ALWAYS CHECK THEIR VALUE ON THE PARTS LIST! - 5 -...
-
Page 6: Electrolytic Capacitor
Construction IC-socket CONSTRUCTION Watch the position Resistors of the notch! Watch the polarity! R... IC1: 8p C (-) LD1: Green (5mm) Electrolytic capacitor R1: 470 (4 - 7 - 1 - B) Male headers R2: 2K2 (2 - 2 - 2 - B) Watch the ... - Page 7 Construction Female headers Watch the position Do not cut the of the notch! connector pins! 2 x 8p IC1: DS1307 2 x 6p Solder Solder SK6: 2 x 3p - 7 -...
-
Page 8: General Information
General information General information Download the library from www.vellemanprojects.eu. Back-up battery: provides power to the shield when the Arduino Uno is not active. Place jumpers JP2 and JP3 when using the shield with the Arduino Uno rev2 or Arduino 2009. The library allows you to manage the frequency of the LED. - Page 9 Schematic diagram 100Á 100n ARDUINO UNO LED5MM 32.768K SQW/OUT MISO MOSI VBAT ARDUINO UNO BATTERY RESET CR2032 DS1307 - 9 -...
- Page 10 - 10 -...
-
Page 11: Open Collector Outputs
Leds and how to use them Leds feature a specifi c voltage Never connect leds in parallel drop, depending on type and colour. Check the datasheet for exact voltage drop and rated current ! How to Calculate the series resistor: Example: operate a red led (1.7V) on a 9Vdc source. - Page 12 The new Velleman Projects catalogue is now available. Download your copy here: www.vellemanprojects.eu Modifi cations and typographical errors reserved - © Velleman nv. HKA07’IP Velleman NV, Legen Heirweg 33 - 9890 Gavere.
