Visionary Boards
ASSEMBLY INSTRUCTIONS
INSTRUCCIONES DE ENSEMBLAJE
INSTRUCTIONS DE MONTAGE
DO NOT THROW AWAY!
NO LA TIRE
NE PAS JETER
UPDATED AS OF: 09/14/2021
1 of 7

Advertisement

loading
Need help?

Need help?

Do you have a question about the Visionary and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mooreco Visionary

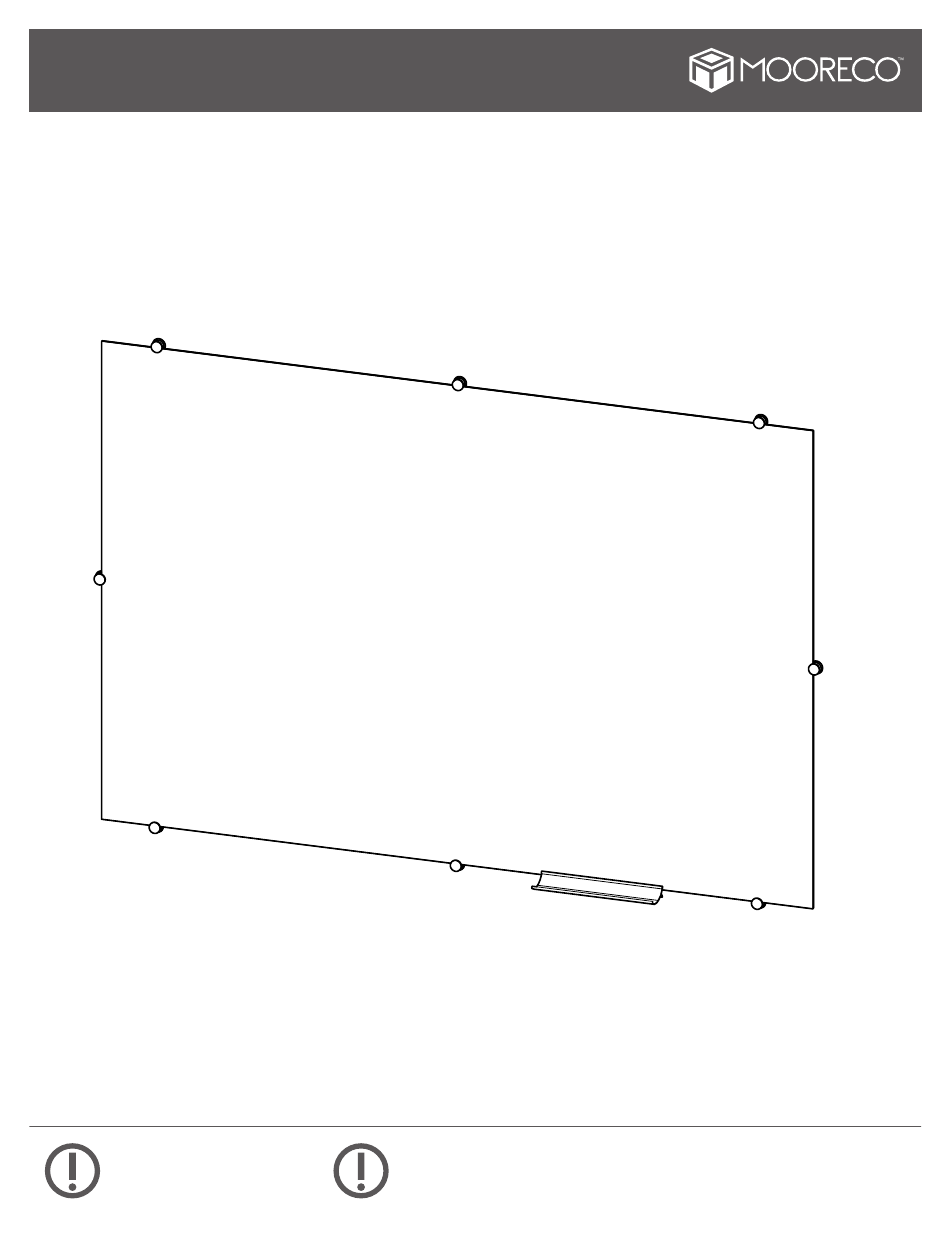

  • Page 1 Visionary Boards ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE ENSEMBLAJE INSTRUCTIONS DE MONTAGE DO NOT THROW AWAY! NO LA TIRE NE PAS JETER UPDATED AS OF: 09/14/2021 1 of 7...
  • Page 2 Parts List Hardware P1 - Glass Board A - Outer Cap x6/8/10 B - Wall Mount x6/8/10 P2 - Tray Mount C - M5 x 34mm x8/10/12 P3 - Tray D - Drywall Anchor x6/8/10 E - Masonry Anchor x6/8/10 F - M6 x 10mm UPDATED AS OF: 09/14/2021 2 of 7...
  • Page 3: Warranty

    WARNINGS AND DISCLAIMERS ADVERTENCIAS Y RENUNCIAS AVERTISSEMENTS Review full assembly instructions and Previo a comenzar el proceso de Avant de commencer l’ assamblage check that all parts are present before ensamblaje favor revisar veuillez consulter instructions beginning assembly. Heavy or large instrucciones y asegurarse que cuenta con complètes et vérifier si vous avez toutes furniture may require multiple persons in...
  • Page 4 Measure your board dimensions and draw an outline of where the board will be located STEP 1 on your wall. Predrill holes for wall mount clips at the locations shown below. Drill 1/8” holes where studs are located and 1/4” holes when drilling into drywall. If installing board in masonry drill only 1/4”...
  • Page 5 With caps removed, attach the wall mounts with necessary hardware as required for STEP 3 installation. Do not screw any of the mounts so tightly that they are unable to slide. After installation slide all mounts outward so that each screw is at inside edge of slot. Screws should be tight enough to hold all mounts in place.
  • Page 6 Drill two holes 3” apart, 1” above the bottom edge of where your board will be. Tray - STEP 1 Secure the Tray Mount (P2) with two screws (D) and inserts, as required. 3” 1” Tray - STEP 2 UPDATED AS OF: 09/14/2021 6 of 7...
  • Page 7 Remove adhesive backer from pads. Place board into lower mounts and secure the STEP 5 outer caps, then tilt back into the top mounts and push them down. Screw in top outer caps to hold panel in place. Finally push in left and right side mounts and screw in outer caps to secure panel.
