WARNING!
When using this electrical equipment, adhere to all basic safety precautions. Please
observe the following:
Follow all applicable electrical codes, including proper bonding procedures.
Turn off power at main source before making any electrical connections or
servicing the unit.
To reduce the risk of electric shock, injury or death, disconnect unit from power
supply when servicing.
UV EXPOSURE & PROTECTION:
UV-A and UV-B radiation can have adverse short and long term effects on the eyes
and skin. Never look directly at a UV lamp that is connected to a power source.
Avoid UV skin exposure at all times
Read and follow these instructions. Ensure manual stays with facility owner for future
reference. Maximum recommended operating pressure is 50 PSI.
Installation INSTRUCTIONS

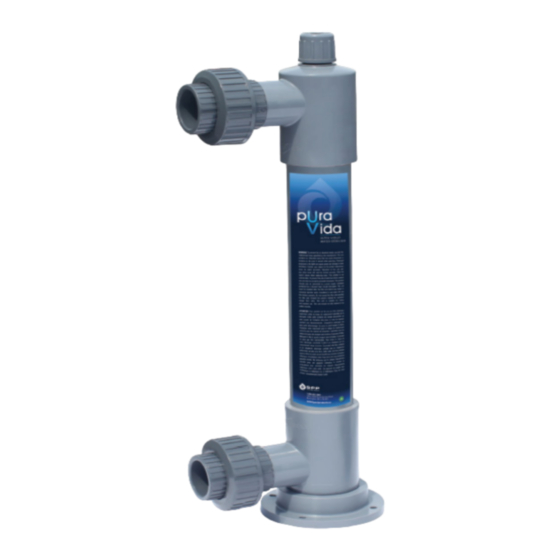

PSII-48PV / PMIII-82PV
FOLLOW EXACT ASSEMBLY
INSTRUCTIONS. IMPROPER ASSEMBLY
OF THE QUARTZ TUBE & BULB WILL
CAUSE DAMAGE TO THE UNIT AND
VOID WARRANTY.

IMPORTANT SAFETY INSTRUCTIONS:

READ COMPLETELY BEFORE PROCEEDING

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSII-48PV and is the answer not in the manual?

Questions and answers

Summary of Contents for Pura Vida PSII-48PV

  • Page 1 INSTALLATION INSTRUCTIONS PSII-48PV / PMIII-82PV FOLLOW EXACT ASSEMBLY INSTRUCTIONS. IMPROPER ASSEMBLY OF THE QUARTZ TUBE & BULB WILL CAUSE DAMAGE TO THE UNIT AND VOID WARRANTY. IMPORTANT SAFETY INSTRUCTIONS: WARNING! READ COMPLETELY BEFORE PROCEEDING When using this electrical equipment, adhere to all basic safety precautions. Please observe the following: •...
  • Page 2 INSTALLATION: WARNING! Install the UV unit in a readily accessible and well lit area to facili- tate inspection and maintenance. The UV should be installed after the filter and before the heater. Figure 1 Inspect for hidden electrical wiring or plumbing prior to drilling any Correct holes.
  • Page 3 Parts List: PSII-48PV PMIII-82PV Item Description Part # Part # Water Proof Strainer PG13.5 PG13.5 Top Nut Lamp Socket & Lead Wire 4P180 4P180 UV Lamp T565HO T585 Rubber O-Ring 21835 21835 Quartz Tube 245750 245910 Chamber UP89730 UP114890 Ballast...
  • Page 4 Carefully unscrew the drain plug (12) counter clockwise. (See Figure 4) Tip the unit on an angle to remove any standing water. Storing the entire unit in a dry and warm location is highly recommended. Dimensions: inlet / outlet PSII-48PV PMIII-82PV 31.7” 38” 23.8” 29.3”...
