User Manual
V
10.4" LCD
iAP-1000
Aluminum front bezel
iNAP-1000
Front NEMA4/IP65
iOP-1000

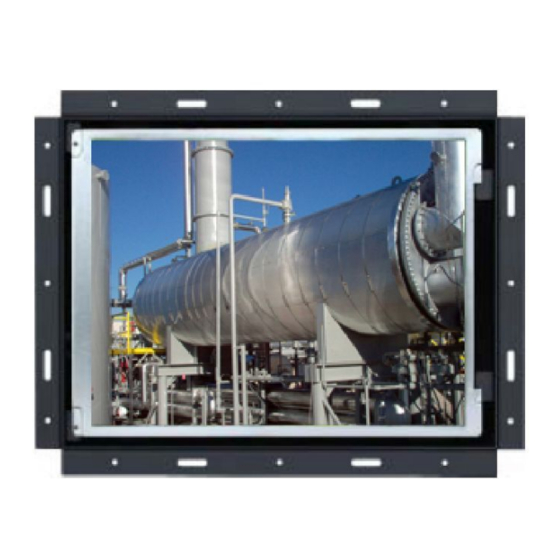

Universal Mounting Open Frame
i-Tech Company LLC
TOLL FREE: (888) 483-2418 • EMAIL:
Dedicated LCD display solutions
^
F€ C€ sr «
info@iTechLCD.com
• WEB:
^
L A C H
J
www.iTechLCD.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for iTech Company iAP-1000
Summary of Contents for iTech Company iAP-1000
- Page 1 Dedicated LCD display solutions User Manual 10.4" LCD iAP-1000 Aluminum front bezel iNAP-1000 Front NEMA4/IP65 iOP-1000 Universal Mounting Open Frame F€ C€ sr « L A C H i-Tech Company LLC TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB:...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
- Page 3 Contents <Part. 1 > iAP-1000 / iNAP-1000 Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & Installation P.4 - 5 <Part. 2 > iOP-1000 Package Content Structure Diagram & Dimension P.7 - Mounting Hardware & Installation < Part. 3 >...
- Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
- Page 5 < Part 1 > 10.4" LCD Display < 1 . 1 > Package Content - i A P - 1 0 0 0 / i N A P - 1 0 0 0 i A P - 1 0 0 0 / i N A P - 1 0 0 0 10.4"...
- Page 6 Packing Dimension Model Weight (W x D x H) (W x D x H) Weight 4.6 kg 284.7 x 62.8 x 222 mm 515x 117x429 mm 2.6 kg iAP-1000 iNAP-1000 11.2x2.5x8.7 inch 20.3x4.6x16.9 inch 5.7 lbs 10.1 lbs P. 2...
- Page 7 10.4" LCD Display < 1.2 > Dimension - i A P - 1 0 0 0 / i N A P - 1 0 0 0 Front View Side View iAP-1000 iNAP-1000 56.8 213.5 35.6 62.8 284.7 Rear View UNIT: mm 1mm = 0.03937 inch...
- Page 8 < 1.3 > Panel Mount Installation - i A P - 1 0 0 0 / i N A P - 1 0 0 0 M4*50mm screw M4*6mm Mounting screw bracket x 4 pcs x4 pcs x2 pcs l£ Hardware set part no. UV-BK#1 Steps ■...
- Page 9 < 1.3 > VESA mount Installation - iAP / i N A P - 1 0 0 0 10.4" LCD Display —±. M4 screw VESA mount ( 75*75mm ) Hardware and M4*4 pcs for VESA mount are not provided...
- Page 10 < Part 2 > < 2.1 > Package Content iOP-1000 i O P - 1 0 0 0 10.4" LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Basic I/O AV1.2 upgrade I/O BNC VGA BNC VGA Audio...
- Page 11 10.4" LCD Display < 2.2 > S t r u c t u r e D i a g r a m - i O P - 1 0 0 0 Front view Rear view (T) Rear case ez^i I = J ©...
- Page 12 < 2.2 > Dimension - i O P - 1 0 0 0 Front View Side View 30.4 30.3 £ iOP-1000 211.2 281.7 UNIT: mm Rear View 1mm = 0.03937 inch -M4*4pcs <f 250.7 Bottom View 281.7 • o o o o o o F "...
- Page 13 < 2.3 > Installation - i O P - 1 0 0 0 10.4" LCD Display ( 1 ) Universal mount 3 0 ^ ( I I ) VESA mount ( 75*75mm ) M4 screw 75 °, \" SQQQQQQQQQQQQQQQQQQQQQQOP Hardware and M4*4 pcs for VESA mounting are not provided...
- Page 14 < Part 3 > < 3.1 > Product Specifications iOP-1000 Mechanical Mechanical Mechanical Mechanical Mechanical Mechanical i A P / i N A P - 1 0 0 0 Design Design Design Design Design Design Black, RAL 9005 Front Panel Black.
- Page 15 10.4" LCD Display iOP-1000 Physical Physical Physical Physical Physical I A P / iNAP-1000 Specification Specification Specification Specification Specification Product (W x D x H ) 281.7x56.8x219 mm 284.7x62.8x222 mm 11.1 x 2.2x8.6 inch 11.2x2.5x8.7 inch Packing ( W x D x H ) 515x117x429 mm 515 x117 x429 mm 20.3 x 4.6 x 16.9 inch...
