PARTS CATALOGUE / TECHNICAL GUIDE

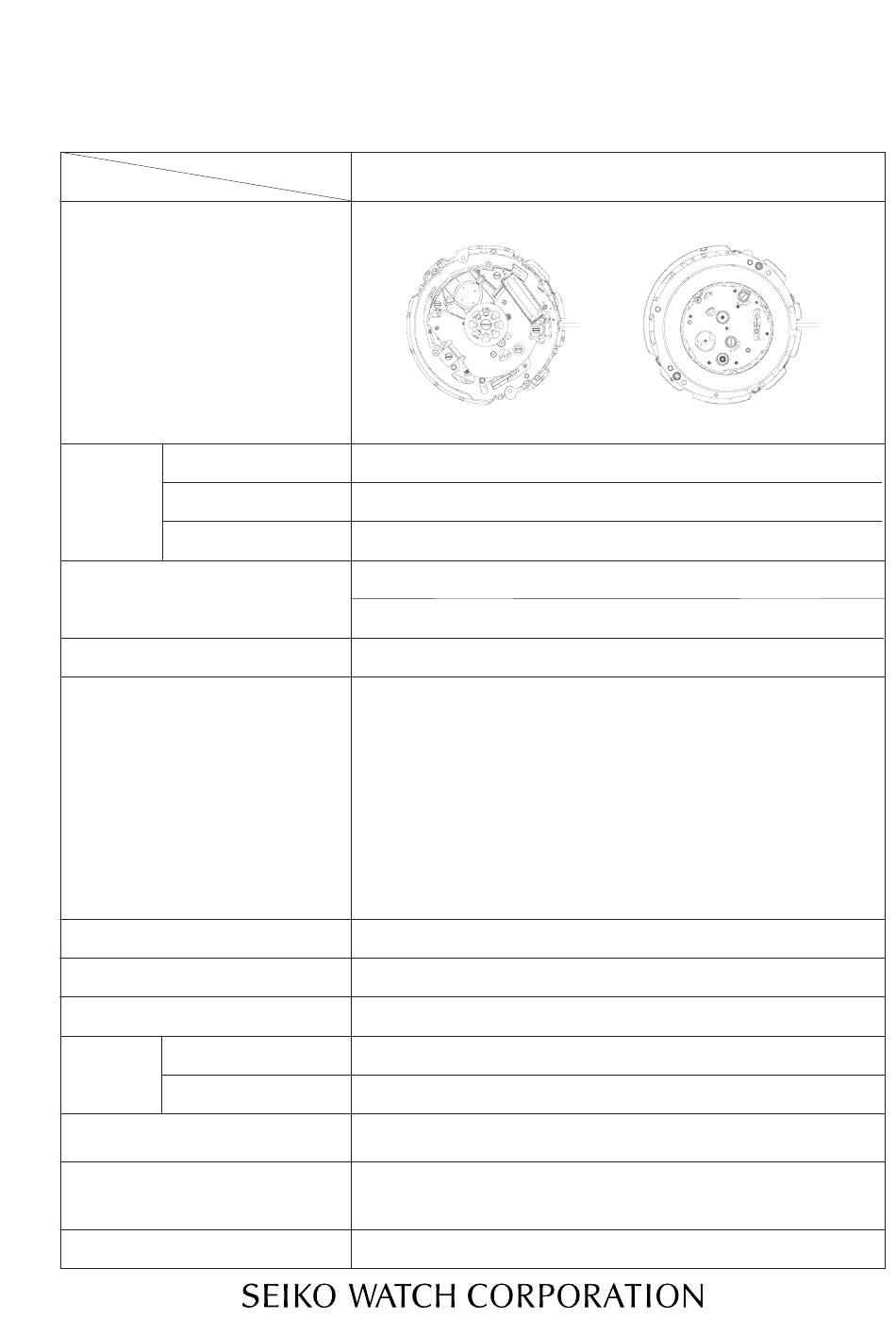

[SPECIFICATIONS]
Item
Movement
Outside diameter
Movement
Casing diameter
size
Time indication
( Movement intervals)
Driving system
Additional mechanism
Loss/gain
Regulation system
Measuring gate by quartz tester
Power generator
Power
Supply
KINETIC E.S.U
Operating voltage range
Duration of operation
Jewels
Cal. 7L22A
Cal. No.
Height
Main time : Hour, minute and small second hands ( 1second)
Stopwatch : Stopwatch minute and 1/5 second hands (0.2 second)
• Electronic circuit reset switch
• Train wheel setting device
• Date calendar
• Instant setting device for day
calendar
• Stopwatch function
45 minutes measurement in 1/5 second increments
Accumulated elapsed time measurement
Heartcam fly-back Reset
Monthly rate within normal temperature range: less than 15 seconds
Step motor, 2 pieces (Load compensated driving pulse type)
10-second gate
Automatic generating system
Titaniume lithium ion rechargeable battery
0.45 ~ 2.5 V
From full charge to stoppage : Approximately 5 months
7L22A
ø32.0 mm
ø30.0 mm
6.4 mm
• Automatic generating system
• Energy depletion forewarning
function
• Overcharge prevention
function
Nil
8 jewels
(x 1.0)
