SOAP & DISINFECTANT
TOUCH FREE DISPENSER
. . .
PRODUCT DETAILS, TECHNICAL DETAILS
AND MOUNTING INSTRUCTIONS

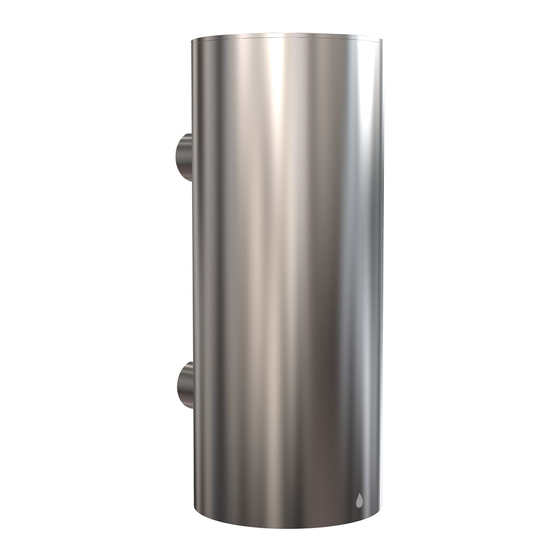

The FROST Soap & Disinfectant Touch Free Dispenser consists of a touch free dispenser
and additional table and floor dispenser stands. The refillable container holds 500 ml (17 oz) liquid soap or
hand disinfection gel, equivalent to approx. 600 doses. The dosage is released once when
your hand is held 5-15 cm (2-6 in) below the dosage nozzle.
By choice, the dispenser is either wall mounted or easily fixed to the table
or floor dispenser stands.
The FROST Soap & Disinfectant Touch Free Dispenser combines hygiene with aesthetics
and offers an elegant minimalistic design solution for the modern interior space.
The design compliments all FROST products.
The dispenser is available in all nine FROST finishes.
The stands are available in Matt Black or Matt White.
The FROST Soap & Disinfectant Touch Free Dispenser is part of
the NOVA2 series designed by Bønnelycke mdd.
www.frost.dk
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for FROST N1978
Summary of Contents for FROST N1978
- Page 1 PRODUCT DETAILS, TECHNICAL DETAILS AND MOUNTING INSTRUCTIONS The FROST Soap & Disinfectant Touch Free Dispenser consists of a touch free dispenser and additional table and floor dispenser stands. The refillable container holds 500 ml (17 oz) liquid soap or hand disinfection gel, equivalent to approx. 600 doses. The dosage is released once when your hand is held 5-15 cm (2-6 in) below the dosage nozzle.
- Page 2 Stainless Steel Height: 217 mm Diameter: Ø89 mm Projection: 112 mm Brushed Brushed Brushed Brushed CC: 114 mm Stainless Copper Gold Black N1978 N1978-BOC N1978-BMG N1978-BCB Polished Polished Polished Matt Matt Stainless Copper Gold Black White...
- Page 3 Sensing distance: 5-15 cm (2-6 in) CC 114 mm The dispenser is made from stainless steel AISI 304. The dispenser stands are made from stainless steel AISI 304. NOTE: The dispenser stands are sold separately. 112 mm Ø89 mm Ø180 mm Ø250 mm WWW.FROST.DK...
-
Page 4: Mounting Instructions
Before mounting, please read instructions on the following pages. NOTE: Do not mount the dispenser in the shower. Stainless steel tube Solid stainless steel base M10 countersunk stainless steel hex key bolt WWW.FROST.DK... -
Page 5: Step 1: Mounting The Dispenser
When the lid is removed simply fill the container with liquid soap or disinfection gel. NOTE: Always use liquid with low viscosity, hence do not to use shampoo, conditioner or shower gel etc. Feel free to use the enclosed soap and disinfection gel stickers on for instance, the dispenser lid. WWW.FROST.DK... - Page 6 On the bottom of the dispenser the LED will flash 5 times and enter Normal Operation Mode. NOTE: The LED will automatically start flashing when the batteries needs to be replaced. Remove the protective sticker from the Sensor and the dispenser is ready for use without any further settings. protective sticker WWW.FROST.DK...
- Page 7 Place the palm of your hand below the Sensor within the required sensing distance from the dispenser bottom and hold while the LED flashes. NOTE: The sensing distance must be between 5-15 cm (2-6 in). 5-15 cm (2-6 in) When the LED flashes stops, the Proximity Sensor Setting is complete. WWW.FROST.DK...
- Page 8 When the LED flashes place the palm of your hand below the Sensor to activate it. Remove your hand when you reach the metered dose of your request. NOTE: The metered dose must be between 0,8 - 6,5 ml. When the LED flashes stops, the Liquid Output Setting is complete. WWW.FROST.DK...
- Page 9 When the LED stops the dispenser has entered Sleep Mode. Press and hold the Settings Button for 2 seconds for the dispenser to return to Normal Operation Mode. press and hold for 2 sec. For other languages, DE, NL, FR, SE and DK please see our website www.frost.dk WWW.FROST.DK...
-
Page 10: Simple Troubleshooting
Insufficient liquid output Induction time is too short Adjust the liquid output settings The liquid is too viscous Please change into low viscosity liquid Liquid solidification or blockage Please use it several times continuously until the liquid can be ejected normally WWW.FROST.DK... - Page 12 FROST A/S BAVNE ALLÉ 32 DK – 8370 HADSTEN T +45 8761 0032 info@frost.dk www.frost.dk facebook.com / FROSTdenmark twitter.com / FROSTdenmark instagram.com / FROSTdenmark pinterest.com / FROSTdenmark...
