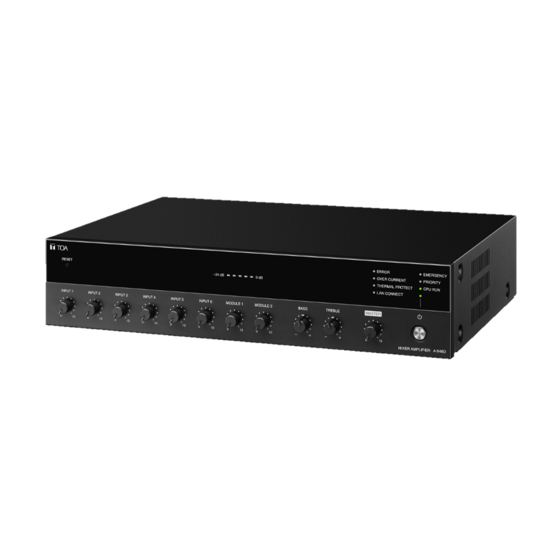

- Page 1 800D Series Mixer Amplifier LOG DATA REFERENCE SHEET (INTERNAL USE ONLY) Page 1 of 9...
- Page 2 Simplified chart for log data Revision ＃ Date Contents 2021/3/31 Original Page 2 of 9...
- Page 3 1. Summary The document is reference purpose for 800D of log data contents which consists of Code # and Opt #. 2. Simplified chart for log data All of log data indicates contents as below. Log data indicates as follows and it can refer each content with Code # and Opt #.
-
Page 4: Command Details
COMMAND DETAILS Code Description (Code) Description (opt) Remark Command details 00: False (Connection check) 01: True Command details (Power 00: OFF control) 01: ON 00 ～60 Command details Attenuation (dB: negative (DEC), (Software master volume sign omitted) FF(-∞) control) bit 0 Command details (Switch 0: Standard Control mode the mode) - Page 5 Command details (Set the 0: Unmute, 1: Mute Opt number is necessary to bit 0 priority broadcast 2) For Audio Input 1 calculate from Hexadecimal to bit 1 For Audio Input 2 Binary number. bit 2 For Audio Input 3 bit 3 For Audio Input 4 92 : 10010010...
- Page 6 00 ～60 Total Volume value has Attenuation (dB: negative 67 30 = Total volume amount is (DEC), been adjusted sign omitted) -30 dB FF(-∞) The output impedance has 00: Low-z mode been changed 01: Hi-z mode Auto Sync 00: WebSocket end 01: WebSocket start PROTOCOL RESPONSE Code Opt...
- Page 7 bit 0 Priority broadcast setting Abnormal status Opt number is necessary to （0：Normal、1：Abnormal） error calculate from Hexadecimal to bit 1 Detect Audio Input 1 Binary number （0：Normal、1：Abnormal） bit 2 Detect Audio Input 2 E8 20 = E8 00100000 （0：Normal、1：Abnormal） bit 3 Detect Module 1 Emergency Broadcast setting （0：Normal、1：Abnormal）...
- Page 8 2-1 Command opt number is necessary to convert from Hexadecimal to Binary number and 2 contents are including. First 3 digits is action and last 5 digits is contents. Example; Log data indicates Code is 90 and opt is 44. Opt 44 converts to Binary number : 01000100 It divides first 3 digits “010”...
- Page 9 10101 Firmware 10110 10111 Reset 11000 Soft volume memory 11001 Default-priority 11010 Start auto sync 11011 Auto sync 11100 Close auto sync 11101 Flash 11110 Test 11111 SPI flash 01110 01111 10000 Setting 10001 Input priority 10010 10011 Input priority-edit 10100 Network 10101...
