Hdd Module Installation - Acer Aspire 7750Z Service Manual

4. Remove module (A) and mylar (C) from brackets.

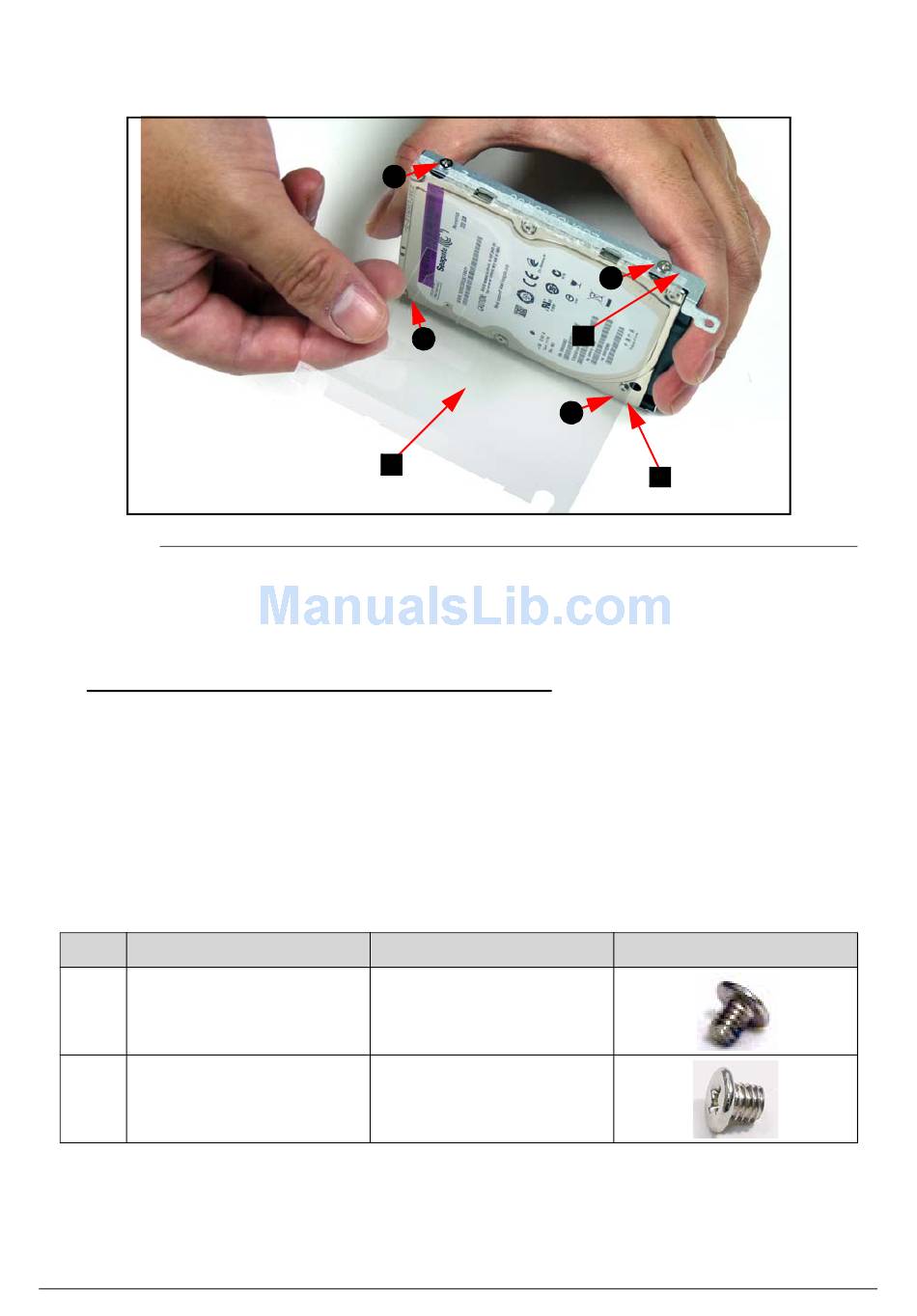

Figure 3-7. HDD Brackets
5. Repeat steps 1 to 4 for secondary module B.

HDD Module Installation

1. Place module (A) into brackets (F).
2. Install and secure module to brackets with four (4) screws (E) (Figure 3-7).
3. Insert module into bay, connecting module to mainboard connector.
4. Install and secure two (2) screws (D)
5. Repeat steps 1 to 4 for secondary module B.
6. Install base door.
ID Size
D M2.5*3 Ni
E M3*3 Ni
Machine Maintenance Procedures
E
E
C
Quantity
4
8
E
F
E
F
Screw Type
0
3-13
