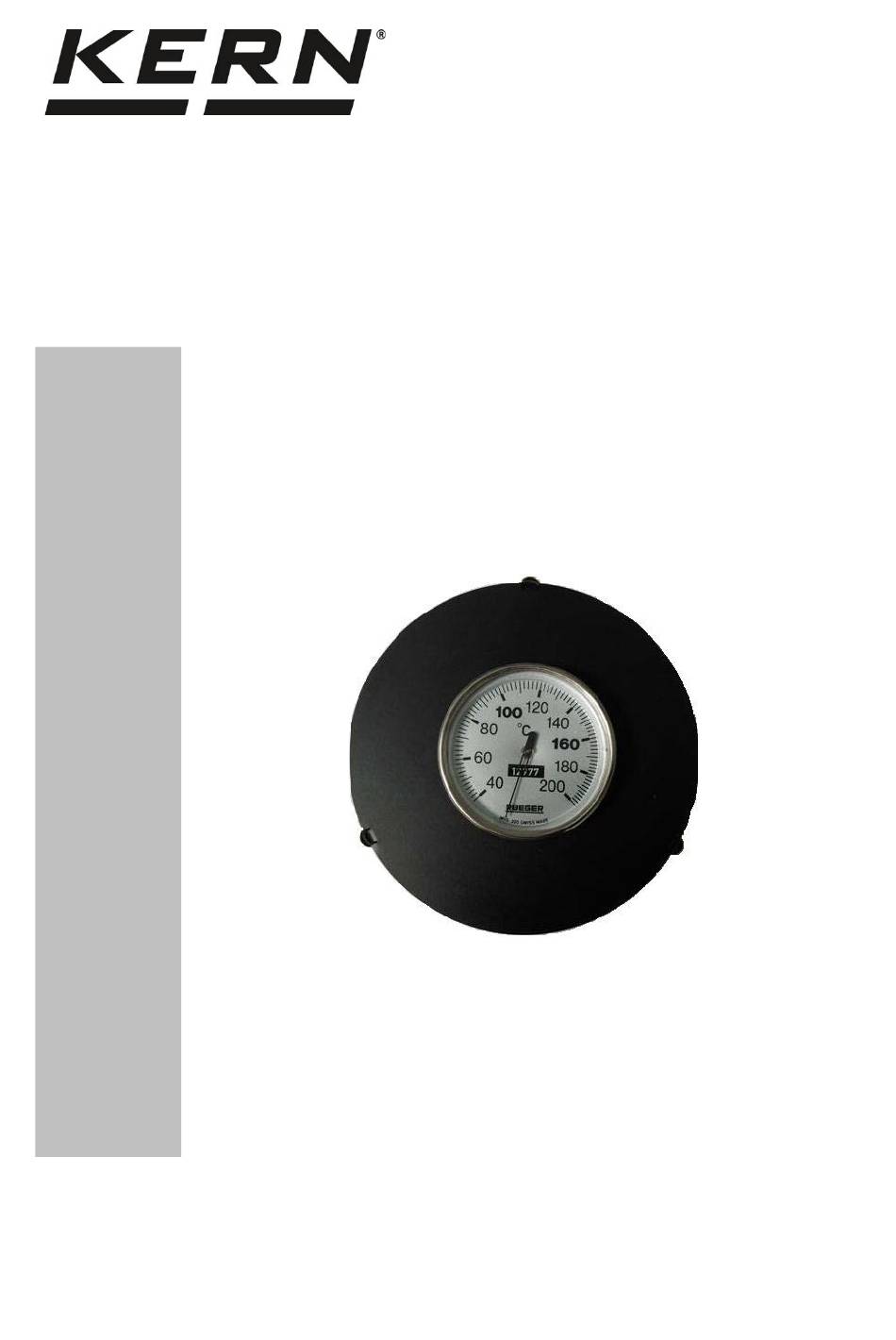

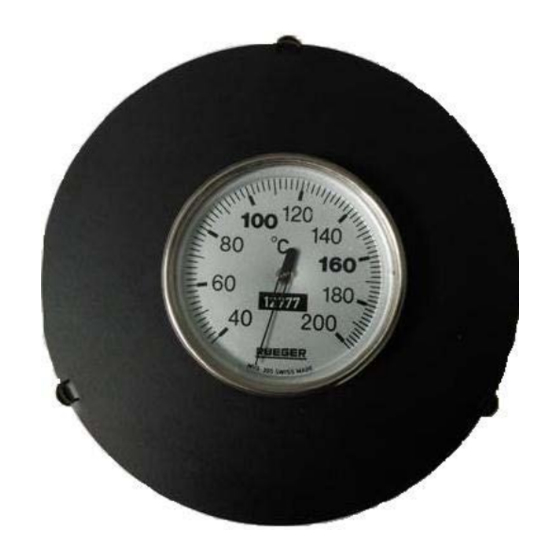

- Page 1 KERN & Sohn GmbH Ziegelei 1 Phone: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@kern-sohn.com Internet: www.kern-sohn.com Operating instructions Temperature Calibrating set KERN DLB_A01N Version 1.1 2020-12 DLB_A01N-BA-e-2011...
-
Page 2: Table Of Contents
KERN DLB_A01N Version 1.1 2020-12 Operating manual Temperature Calibrating set Contents P reparation ......................3 T DL G 160-3-A ..................... 4 C alibration of temperature value ..............4 Adjus tment of temperature value ..............5 DL B 160-3 ......................7 C alibration of temperature value .............. -
Page 3: Preparation
1 Preparation We recommend sometimes to check the temperature value of the models using the optional temperature calibrating set DLB-A01N. Before you do this, allow the device to cool down for at least 30 minutes after the last heating phase. ... -
Page 4: Tdlg 160-3-A
2 TDLG 160-3-A 2.1 Calibration of temperature value During temperature calibration only a check is carried out, i.e. no values are changed. In the start display press the F1-key, the main menu will appear. Press to select the menu item <6 - Temperature Test> . Acknowledge by Press to acknowledge the following instruction how to use a temperature... -
Page 5: Adjustment Of Temperature Value
2.2 Adjustment of temperature value If in temperature calibration the admitted divergence is exceed or not reached, the temperature of the instrument can be adjusted as described below. In the start display press the F1-key, the main menu will appear. Press to select the menu item <7 –... - Page 6 Temperature calibration for the first point takes 15 min. Compare the temperature displayed on the DLB-A01N with that of the moisture analyzer. If the two values do not match, read off the value at the temperature calibration set and enter with the help of Confirm by , the second heating phase is started.
-
Page 7: Dl B 160-3
3 DLB 160-3 Invoke service function: In weighing mode press the MENU button and keep it pressed until the acoustic signal gets mute. Release the button and the menu item “units“ will appear. Press repeatedly the MENU button until „Service“ will be displayed. ... -
Page 8: Calibration Of Temperature Value
3.1 Calibration of temperature value During temperature calibration only a check is carried out, i.e. no values are changed. Invoke service function „Tmp test“, see chap. 3 Confirm by pressing the PRINT button. The current setting will be displayed. Use the navigation buttons ... -
Page 9: Adjustment Of Temperature Value
3.2 Adjustment of temperature value The temperature is measured at two selectable points and it is possible to correct it there. Invoke service function „Tmp Adj“, see chap. 3 Confirm by pressing the PRINT button. The current setting for the first temperature point is displayed.
