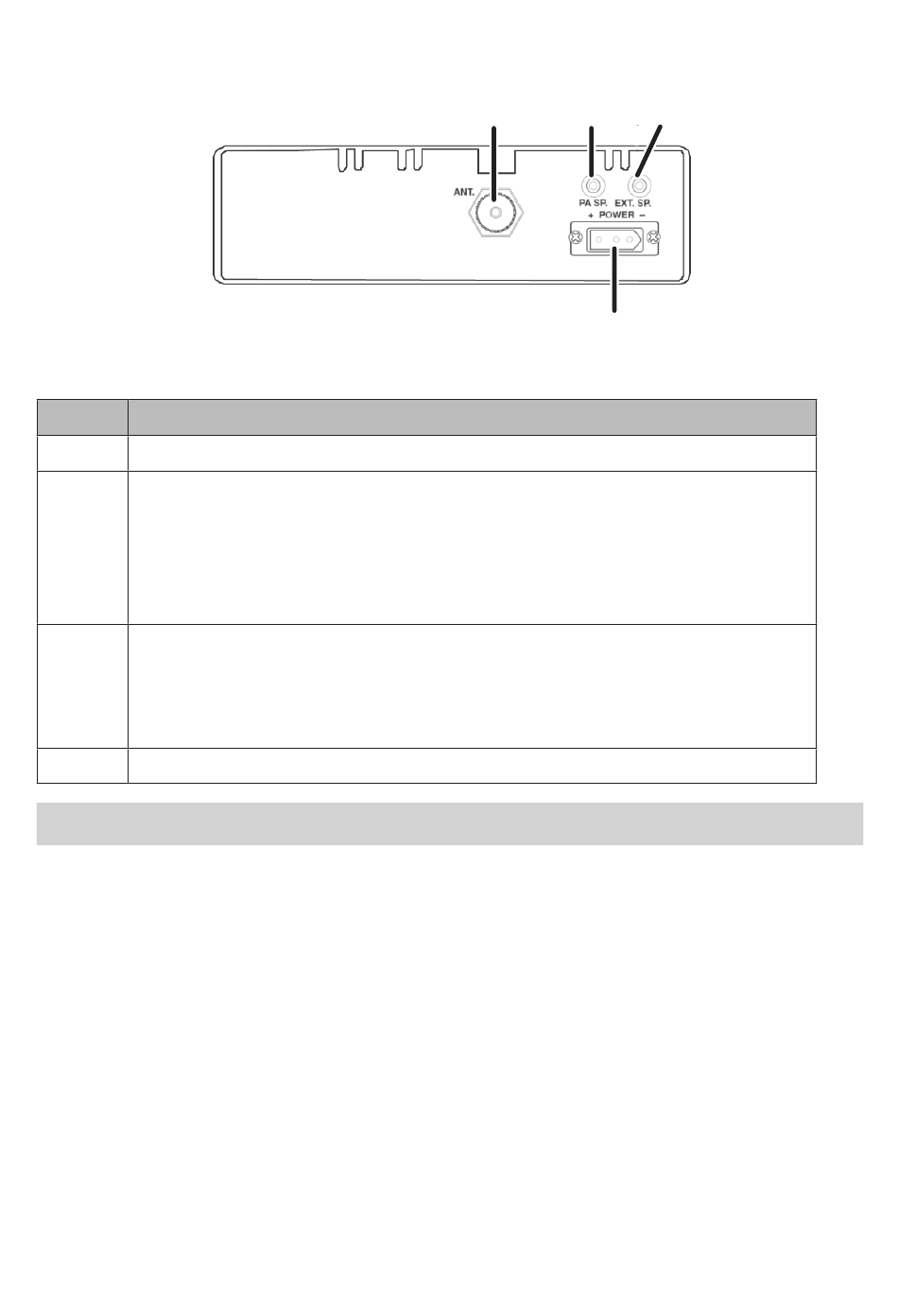

REAR VIEW
Item
Definition
16
Antenna Jack
PA SP: Connects optional external 8-ohm, 4-watt speaker for use as a public
17
address system.
To prevent acoustic feedback, separate the microphone
from the speaker when operating the PA at high output
levels.
EXT. SP: Connects an 8-ohm 4-watt speaker to remotely monitor the
18
receiver.
When the external speaker is plugged in, the internal
speaker is off.
POWER: Connects DC power to transceiver.
19
INSTALLATION
MOBILE INSTALLATION
Plan the location of the transceiver and microphone bracket before
beginning installation.
1. Select a location that is convenient for operating the radio but
does not interfere with the driver or passenger.
2. Install bracket with self-tapping screws provided.
3. Connect power cords (see page 8).
4. Attach the microphone bracket to side of the radio.
5. Attach radio to bracket.
16
17
19
7
18
