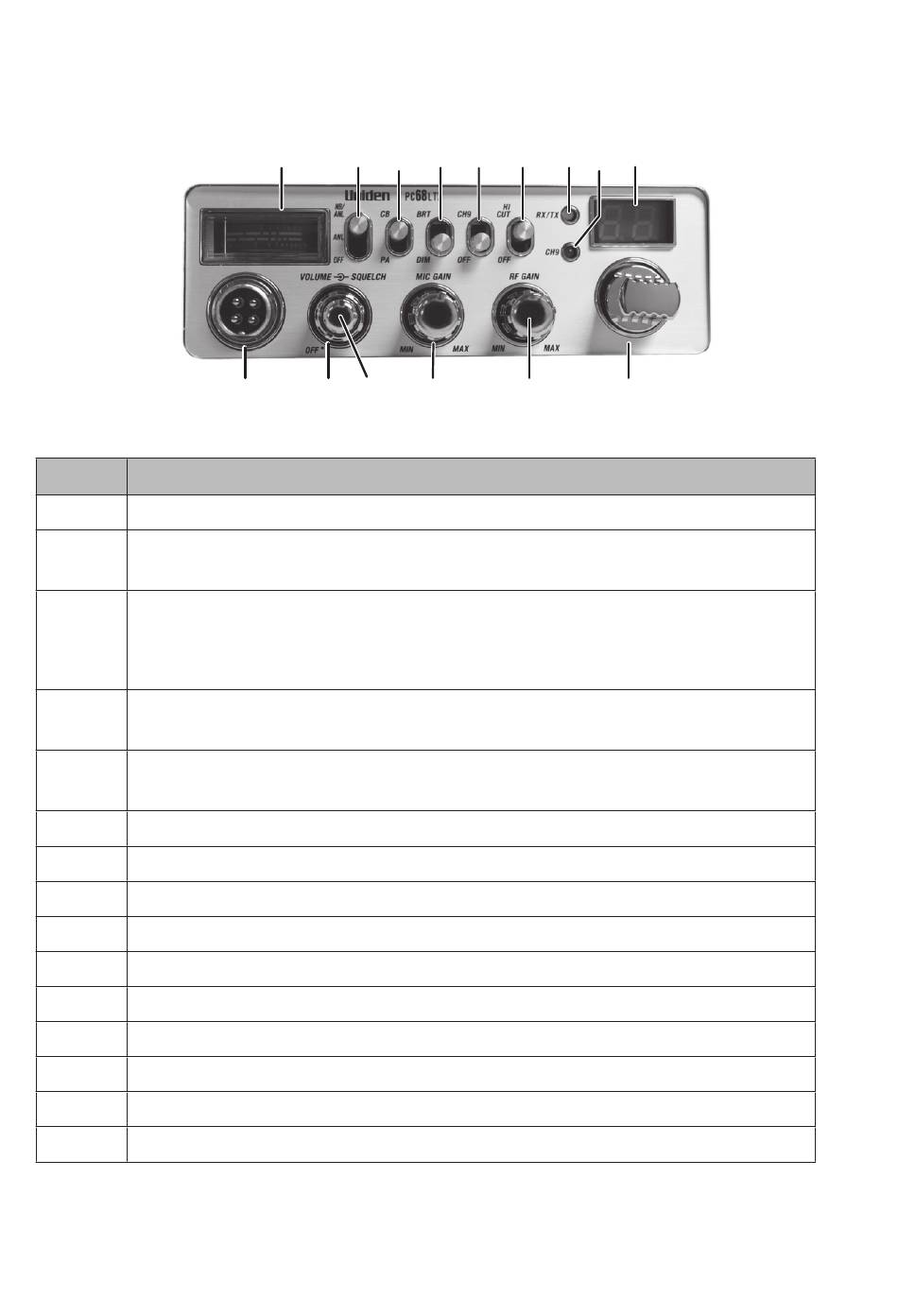

FRONT VIEW

Item Definition
1 Function Meter: Measures RF and S signal strength.
NB/ANL/ANL/OFF: Reduces external noise and interference from vehicle
2
ignition systems. Select OFF to turn off this function.
CB/PA: Selects the PA (Public Address) or CB (Citizens Band).
3
Do not use PA function unless an external speaker is
connected.
BRT/DIM: Adjusts the brightness of LED Channel Display and RF Signal
4
Meter.
CH9/OFF: Instantly tunes to emergency CB Channel 9. Turn off to resume
5
normal channel operations.
HI CUT/OFF: When turned on, cuts high audio frequencies.
6
7 RX/TX Indicator: Red-transmitting; green-receiving.
8 CH 9 Indicator: Red-Channel 9 switch is on.
9 Channel Display: Displays current channel selection.
Channel Knob: Selects transmission and reception channels.
10
RF GAIN: Improves reception in strong signal areas.
11
MIC GAIN: Adjusts microphone sensitivity.
12
On/Off - Volume:Turns the radio on or off and adjusts the speaker volume.
13
SQUELCH: Reduces background noise when there is no incoming signal.
14
15 Microphone Jack
1 2 3
15 14 13
4 5 6 7
12 11
6
8 9
10
