Dormakaba BEST Switch Core Installation Instructions Manual

Switch™ Core
Installation Instructions
BEFORE YOU BEGIN:
It is critical to ensure that Switch™ Core is compatible with your Lock Hardware. Please carefully review page 4 and page 5 of this
document [Switch™ Core Compatibility Guide] to ensure that you are installing Switch™ Core into appropriate Lock Hardware.
OV E RV I E W
Compatible
Android™ 5+
Devices:
A
Lever Handle
B
Throw Member*
C
Core 7-Pin
D
Control Key
E

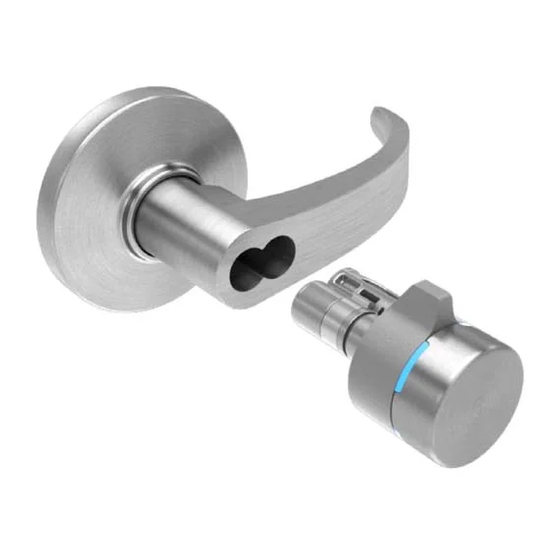

Switch™ Core
F
Battery
Sw i tc h ™ C o re I n sta l l at i o n I n st r u ct i o n s
1
DISENGAGE CONTROL LUG
D
Insert the control key (D), and rotate 15° clockwise to
disengage the control lug.
BEST is a trademark of dormakaba USA Inc.
iOS: 11.0+
G
Battery Cap
H
Hex Key 1/16"
Battery
I
Removal Tool
D
H
included
D
15°
*NOTE:
The throw
member (B)
A
will be reused.
*B
C
E
F
G
REMOVE CORE AND
2
15°
D
NOTE: Keep the
throw member (B)
to reuse.
With the control key (D) rotated 15°, remove the core (C) and
the throw member (B). If the throw member (B) or the throw
pins do not come out with the core (C), leave them in the lock.
1/20
I
not included
THROW MEMBER
B
T91407_A ©2020 All rights reserved.
