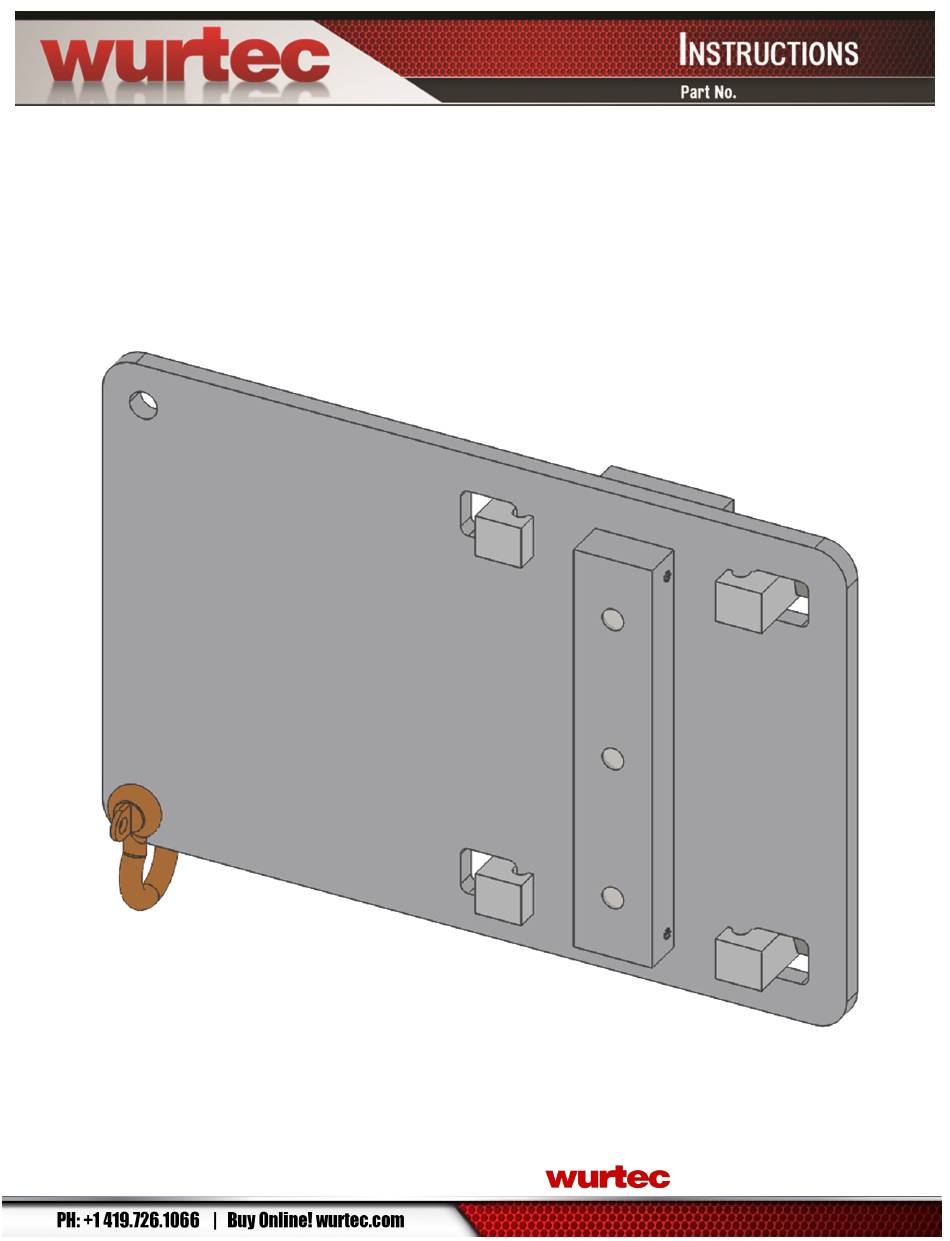

- Page 1 16-296 70-180 MEGA OIST 70-180 Rev. 0 - 1/5/2017 | Release - 6200 Brent Drive | Toledo, Ohio 43611...
-
Page 2: Table Of Contents
16-296 70-180 Table of Contents Overview ................................3 Hazards ................................3 Description ................................. 4 Features and Functions ............................. 4 Installation ..............................6 Necessary Tools ............................6 Set Up ................................6 Opposite Side Configuration ..........................7 Recommended Inspection and Maintenance ..................... 8 Hex-Bolts ............................... -
Page 3: Overview
Installation and Proper Use instructions; Recommended Maintenance and Inspection Criteria. After reading this manual, the reader will be able to properly install the Omega Hoist Rig on an omega rail and use it to safely hoist materials in an elevator hoistway. CAUTION! The equipment covered in this manual should only be installed, used, and serviced by qualified personnel trained in proper work and safety procedures. -
Page 4: Description
FEATURES AND FUNCTIONS: The Omega Hoist Rig clamps onto the omega rail via four (4) Gripper Blocks engaged by two (2) 5/8-11 X 7” Hex Bolts. There is an anchor shackle attached to the Hoisting Plate which provides a hoisting point. - Page 5 16-296 70-180 The Tap Block which lies on the inside of the omega rail contains four (4) Round Grippers. These provide grip points on the inside bends of the omega rail when the Gripper Blocks are drawn together by the hex bolts.
-
Page 6: Installation
16-296 70-180 Installation Necessary Equipment 15/16” Socket Torque Wrench Anti-Seize Lubricant (such as Dow Corning Molykote 1000, Loctite Moly-50, Spider Black) Set Up 1. Loosen the Hex Bolts to spread the Gripper Blocks as far apart as possible. Apply a thin, even coating of anti-seize lubricant to the bolt threads. -
Page 7: Opposite Side Configuration
Plate as a hoist point. WLL: 1000 Lbs (454 kg) Opposite Side Configuration The Omega Hoist Rig can be used with the hoist point on either the right or the left side of the omega rail. To switch to opposite configuration: 1. -
Page 8: Recommended Inspection And Maintenance
16-296 70-180 Recommended Inspection and Maintenance Hex Bolts Inspect the Hex Bolts before each use. Check for damaged threads or cross-threading into the Tapped Gripper blocks. En- sure that the threads of the Hex Bolts have sufficient lubrication on so that they are able to travel smoothly in either di- rection of the thread path. -
Page 9: Tap/Block Grippers
16-296 70-180 Tap Block / Grippers Ensure that there are four (4) Grippers in place in the Tap Block. -
Page 10: Bill Of Materials
16-296 70-180 Bill of Materials...
