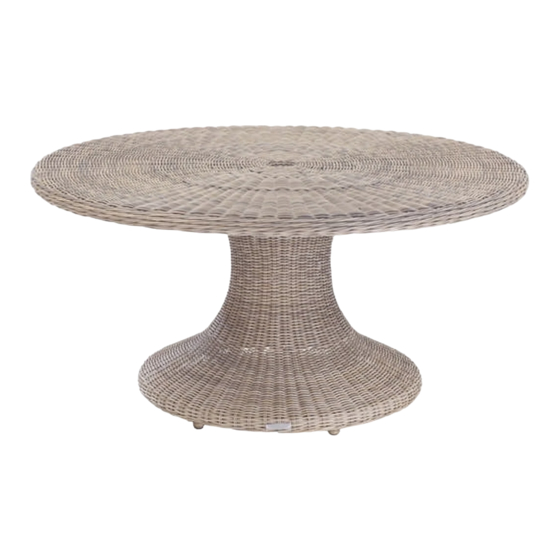

kingsley-bate SH-52 Assembly Instructions

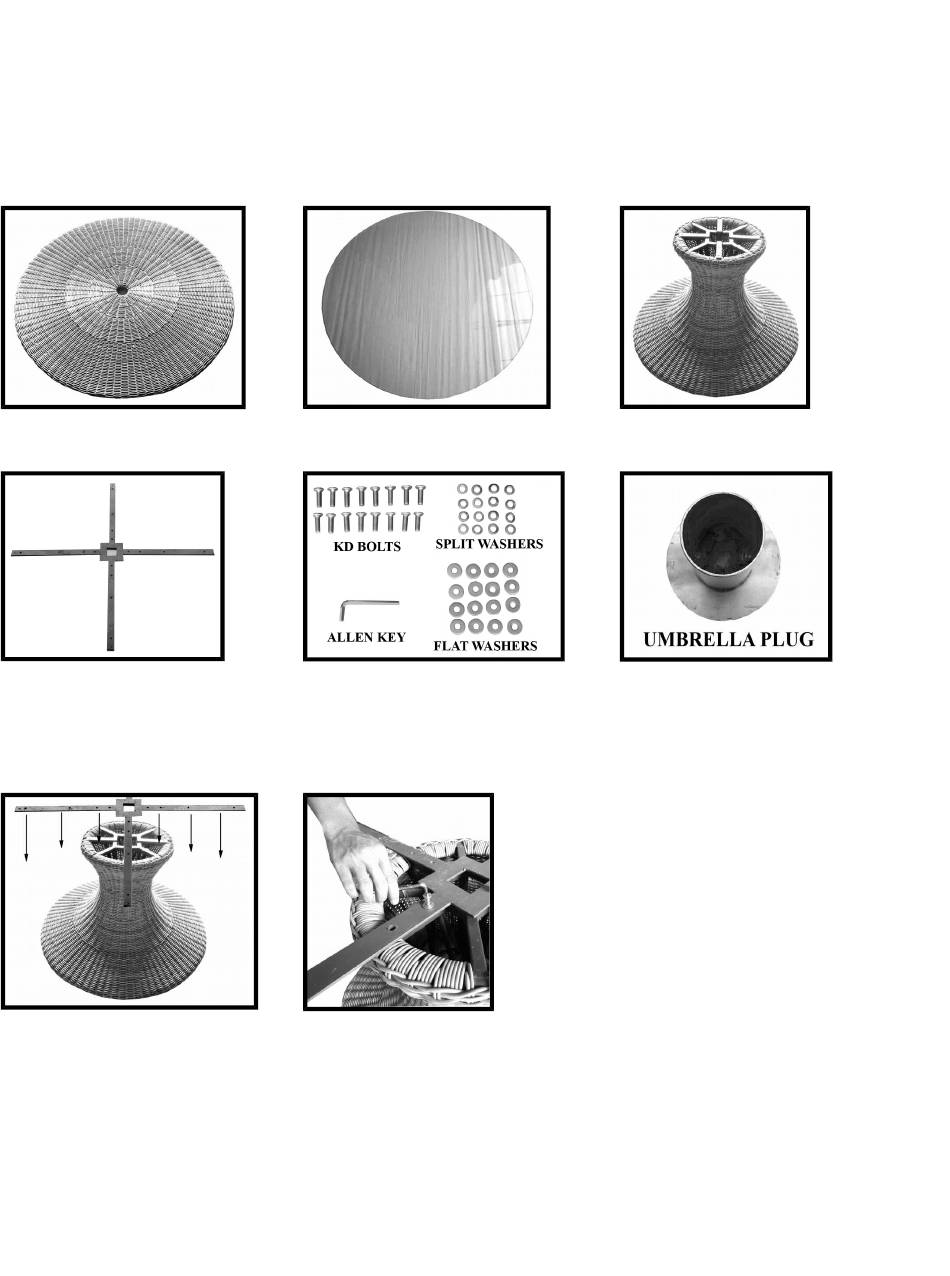

ASSEMBLY INSTRUCTIONS FOR THE SH-52/61

TABLE TOP

CROSS BRACKET

STEP-I

Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid marring the wicker.

provided. NOTE: it is easiest if you attach and lightly tighten all bolts first to make sure they

catch properly; then evenly tighten them the rest of the way down until completely secure.

KINGSLEY~BATE

Fine Garden Furniture

GLASS TOP

BASE

Line up the CROSS BRACKET to the

BASE assembly holes using the stickers

as guides.

Slide the flat washers followed by the

split washers onto the KD (knock-down)

BOLTS and secure all KD BOLTS as

shown in photographs with the allen key

Table of Contents

Do you have a question about the SH-52 and is the answer not in the manual?

Page 1 KINGSLEY~BATE Fine Garden Furniture ASSEMBLY INSTRUCTIONS FOR THE SH-52/61 TABLE TOP GLASS TOP BASE CROSS BRACKET STEP-I Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid marring the wicker. STEP-II Line up the CROSS BRACKET to the BASE assembly holes using the stickers as guides.
Page 2 IF YOU HAVE ANY QUESTIONS REGARDING THE ASSEMBLY OF YOUR KINGSLEY-BATE FURNITURE, PLEASE CONTACT THE KINGSLEY-BATE DEALER NEAREST TO YOU OR KINGSLEY-BATE DIRECTLY. WE THANK YOU FOR CHOOSING OUR FURNITURE. * KINGSLEY-BATE WILL NOT TAKE RESPONSIBILITY FOR DAMAGE...

Sh-61
