Rev. 2021/9/1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ON-Lap 2101H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GeChic ON-Lap 2101H

Summary of Contents for GeChic ON-Lap 2101H

  • Page 1 Rev. 2021/9/1...

  • Page 2: Table Of Contents

    —2 Section 2 Accessories Description —3 Chapter 2 Installation Instructions —5 Section 1 Set up and Put away On-Lap 2101H Monitor Section 2 Use USB Type-C Port to Connect to MacBook or —5 Other PCs —5 Section 3 Use USB Type-C Port to Connect to Smartphone —6...
  • Page 3 目次 —IV —V 日 —V 本 語 —13 —13 —14 —17 —17 —19 —19 —20 —21 —22 —22 —23 —23 —23 LED OSD —23 2. OSD —25 —25 —26 —27 —27...

  • Page 4: Notices, Cautions & Warranty Exclusions -I

    If you need to use this monitor in an abnormal environment such as high temperature, high humidity, confined space, low atmospheric pres- sure, etc., please contact Gechic customer service center for further advice on usage environment.

  • Page 5: Lcd Pixel Statement -Ii

    Please read the warranty terms below carefully, and follow the usage guide and precautionary notes. Please keep this manual for future reference. GeChic does not warrant uninterrupted or error-free operation of this Prod- uct. The warranty only covers failure /malfunction under normal use condi- tions during warranty period.
  • Page 6 Consult the dealer or an experienced radio/TV technician for help. Caution: Changes or modifications not expressly approved by GeChic Corp. could void the user's authority to operate the equipment. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.

  • Page 7: Chapter 1 Parts Of On Lap Product & Accessories -1

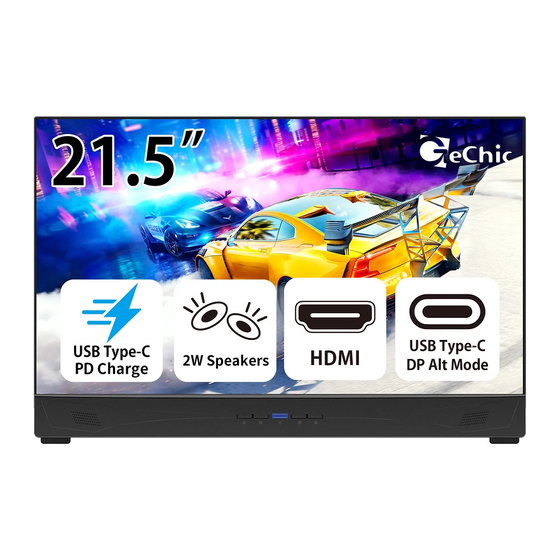

    Chapter 1 Parts of On Lap Product & Accessories Section 1 Parts Description Front Back Input& Output Ports...

  • Page 8: Section 2 Accessories Description -2

    Section 2 Accessories Description Power Cord AC/DC Power Supply Adapter(19V-4.6A) Warning! This adapter is used for 2101H monitor only. Please DO NOT connect it to other products. HDMI-A Video Cable (1.5m) USB Type-C Video Cable (1.0m) Monitor Carrying Bag (21A1)

  • Page 9: Chapter 2 Installation Instructions -3

    Chapter 2 Installation Instructions Section 1 Set up and Put away On-Lap 2101H (1)Please follow the steps below to set up the On-Lap2101H monitor. ◆ Step 1 ◆ As shown below, pull out the magnetic buckle, erect the I/O Watch How to’s Base, and fit the tenon on the magnet buckle into the slot.
  • Page 10 73 degrees. ○ the viewing angle is about 67 degrees. (2)Please follow the steps below to put the On-Lap 2101H monitor into the monitor carrying bag (21A1). ◆ Step 1 ◆ Turn off the monitor and unplug all the cables.

  • Page 11: Section 2 Use Usb Type-C Port To Connect To Macbook Or Other Pcs -5

    And the USB Type-C port on the PC must support USB PD power input to receive the output current from the monitor. Please power on the PC and the On-Lap 2101H first, as shown below, connect the USB Type-C video cable to the On-Lap 2101H and the PC. The USB-A port (USB 2.0) can be connected to a mouse...

  • Page 12: Section 4 Connect To Nintendo Switch® -6

    "No" is selected, Switch® will not output images. 1. Use USB Type-C port to connect to Nintendo Switch® Console As shown on the right, please turn on the Nintendo Switch® and On-Lap 2101H firstly, and then connect the USB Type-C video cable to the On-Lap 2101H and Nintendo Switch®...

  • Page 13: Section 5 Use Hdmi-A Port To Connect To Pc, Game Console, Etc. -6

    3. Use the Monitor Carrying Bag(21A1) to carry the monitor and Nintendo Switch® As shown in the figure, put the 2101H monitor, power supply adapter, power cord, USB Type-C video cable, Switch console and Joy-con into the monitor carrying bag. ◆...

  • Page 14: Section 6 The Function Of Usb

    2101H. Note: If the current required by the streaming device is greater than 5V 2.4A, then ◆ the USB-A port on On-Lap 2101H cannot be used to power it. Please use an additional 5V charger to power the streaming device.

  • Page 15: Section 8 Instruction For Connecting To Headphones Or

    2. As shown in the fig., insert Microsoft® HDMI Wireless Display Adapter to the HDMI-A port and USB-A port on the On-Lap 2101H. Section 8 Instruction for Connecting to Headphones or Speakers Please insert the 3.5mm plug of the earphone into the headphone out on the moni- tor’s base.
  • Page 16 2. Hot Keys Description Press this power button to turn on the monitor, and press it again to turn off the power. Power Reset: Press and hold for 5 seconds to reset the OSD settings to default Press this button to open the Input Source Menu, and then press Exit to switch the input source.
  • Page 17 3. Advanced Settings 1) Auto Power Off: Select "On" to activate this function. When there is no image input, the monitor will enter Standby mode, and power off itself after 270 seconds. The power but- ton shall be pressed to turn on the monitor again.

  • Page 18: Chapter 4 Product Specification -10

    7. Information: Show Frequency of the input image, On-Lap model name, firmware version, etc. 1) Reset: Select "Yes" to reset to defaults. Chapter 4 Product Specification Section 1 General Specification Item On-Lap 2101H Panel Wide screen 21.5” (16:9) True Resolution 1920x1080 Color Depth 16.7M Colors...

  • Page 19: Section 3 Supported Video Modes -11

    Section 2 Supported Operating Modes Refresh Rate Horizontal Frequency (kHz) Vertical Frequency (Hz) Resolution 640x480 60Hz 31.469 59.940 720x480 60Hz 29.855 59.710 800x600 60Hz 37.879 60.317 848x480 60Hz 31.02 60.000 960x600 60Hz 37.212 59.635 1024x768 60Hz 48.363 60.004 1152x864 60Hz 53.783 59.959 1280x600...

  • Page 20: Chapter 5 Troubleshooting -12

    HDMI format supported by 2101H. If the input source exceeds the resolution and frequency supported by 2101H monitor, the images cannot be displayed properly. GeChic Corporation 11F-3, No. 138, Zhongming S. Rd., West Dist., Taichung, Taiwan Customer Service: service@gechic.com...
  • Page 21 21A1) USB-A USB Type C Nintendo Switch® 5~35 45~85 Gechic...
  • Page 22 99.99 0.01 WEEE Rear Dock VCCI-B...
  • Page 25 On-Lap2101H On-Lap2101H USB Type-C HDMI...
  • Page 26 On-Lap2101H 21A1)
  • Page 27 1.PC Type-C DisplayPort DP Alt) USB PD USB Type-C DisplayPort DP Alt Mode) USB Type-C USB PD USB Type-C On-Lap 2101H USB Type-C -Lap 2101H USB-A USB 2.0) USB Type-C USB-A USB Type-C USB-A 5V 2A 2. PC Type-C DisplayPort Alt Mode (DP Alt)
  • Page 28 USB Type-C 2101H USB 2.0) Power Output to Power Output to PC Switch® Nintendo Switch® On-Lap 2101 USB Type-C On-Lap 2101H Nintendo Switch® Switch® Switch USB Type-C Switch Switch Switch 2101H 2101H Switch Switch SWITCH HDMI-A Nintendo Switch®...
  • Page 29 2101H USB Type C Switch Joy-con Nintendo Switch® Nintendo Switch® HDMI-A 2101H HDMI...
  • Page 30 USB Type-C On-Lap 2101H On-Lap 2101H On-Lap 2101H 5V 2.0A 5V 2A 9V 2A 15V 2A 20V 2.25A Google Chromecast HDMI-A Lap 2101H USB-A USB Type-C Microsoft® HDMI HDMI HDMI-A USB-A 2101H USB-A...
  • Page 31 3.5mm Headphone Out) 2.0W 5.1ch On-Lap Language Select...
  • Page 33 On-Lap 2101H HDMI-A, USB Type-C 出力 3.5mm mini jack) 2W(Max) x2 < <...
  • Page 34 On-Lap 2101H 4.62A 500mA (USB Type-C USB-A Max.) 2.4A (USB Type-C 2A/ 9V 2A/ 15V 2A/ 20V 2.25A USB-C Max.) 35 、 90%RH( 60 、 : 10 90% RH( W/H/T) 489mm*326mm*7.5mm~33.8mm( 2,348g R53848 RoHS 640x480 60Hz 31.469 59.940 720x480 60Hz 29.855...
  • Page 35 1920x1080P 50Hz/59.94Hz/60Hz 1280x720P 50Hz/59.94Hz/60Hz 720x480P 59.94/60Hz 640x480P 59.94/60Hz GeChic Corporation 11F-3, No. 138, Zhongming S. Rd., West Dist., Taichung, Taiwan Customer Service: service@gechic.com Rev. 2021/9/1...
  • Page 36 保証規定...
