- Page 1 Wireless LCD NVR System Quick Start Guide Zosi Smart App (IOS/Android) Please set a password and keep it in mind. Default password is blank. Password (Write down after setup) __________________________ Please keep this guide properly for future use when logging in to the device and remote viewing.

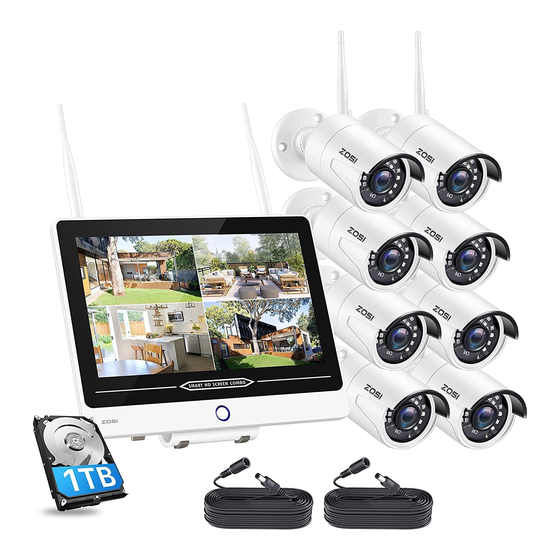

- Page 2 Gallery & Specs 1.1 NVR Screen Power Switch 1.2 Camera Antenna Lens...
- Page 3 System Connection 2.1 Connect NVR to the Internet (1) Connect NVR to router using a network cable. (2) Connect the included USB mouse to the USB port of NVR. (3) Connect NVR to 12V power supply. (4) Press down the screen power switch. After the system starts, pair camera to the system (maximum support 8 channels).
- Page 4 A: Camera Installation Diagram Mounting Hole Template Intall wall plugs Mount the screws No need of wall plug if it's wooden wall B: How to test the network status of NVR? (1) Right click Mouse > Go to Main Menu > Setting > Network (2) Tick 'Obtain an IP Adress Automatically' (3) Click 'Test', if 'OK' is displayed, tick ‘DHCP’...
- Page 5 Zosi Smart App (IOS/Android) 2.3 Run the App A: Install the free ZOSI Smart App. B: Click Register and enter your email box to get verification code, click next to set up password and save it, registration completed. C: Login the App, get into the main interface (My Device), tap “+”in the upper right corner to add devices.
- Page 6 F: Go back to the Device list > Tap the device > Tap “+” to select channel (all selected) > Tap Confirm to start live streaming. Open the App Register Tap “+”to add devices 'Device ID' Scan QR code on the device Add device Select channel to view live...
-
Page 7: Device Management
AVSS PC Client 3.1 Install AVSS on PC Get the AVSS software from www.zositech.com or from your agent. Double-click the icon AVSS to open, select the language and click Login. Note: The user name is the account and password registered on the App in 2.3. 3.2 Device Management Click the Add Device button in the device list to add/edit/configure/search for the device. -
Page 8: Live View
3.3 Live View Select channel on ‘Live’ page, right click to watch live streaming. 3.4 Remote Video Playback Select ‘Playback’, select device, channel, date, time, click the play button to start replaying recorded video. - Page 9 Device Rematch 4.1 Camera Setup Note: The system is already paired by default before leaving the factory. Please do not perform the following operations unless you have special needs. (1) Enter the NVR interface and right click the mouse to open the main menu, as shown in 4.1. Figure 4.1 (2) Select "IPC Channel Configuration"...
- Page 10 (3) Click 'Search', the system will automatically pair the camera as shown in Figure 4.3. Figure 4.3 (4) Click "Add All" on the interface to complete the camera configuration, as shown in Figure 4.4. Figure 4.4...
-
Page 11: Hard Drive
Hard Drive Some camera kits may not include hard drive, depending on the camera kit you purchase. This kit support most 3.5” HDD. Note: Please skip this step if your recorder has a pre-installed hard disk. ① Power off the NVR, unscrew and remove the back cover of recorder. ②... -
Page 12: Motion Detection Settings
Live Display and Video Record 6.1 Live Display After the camera is configured successfully, the real-time monitoring video, time, and WiFi signal of the camera will be displayed on the screen. 6.2 Motion Detection Settings Setting up motion detection, NVR will only record when it detects movement or activity. Right-click the mouse>... -
Page 13: Video Playback
6.3 Video Playback Go to Main Menu > Search, the system will display as follows: Video Playback Menu Bar Previous Record: move to last recorded event Next Record: move to next recorded event Fast Forward: video can be played at different speed, from 1/4 times to 16 times. Rewind: video play can be rewinded at 1 time, 8 times and 16 times. - Page 14 FAQs Q: Why can't I search for devices when adding cameras? A: Make sure that the device and the mobile device are in the same LAN. Q: Why can't my device connect to the network? A: Please check: · Is the device connected to the Internet? ·...
