C COPYRIGHTS 1998
REMACO TECHNOLOGIES PTE LTD
Installation Guide
AVA-320-RF
Control Button
F2
Learning Button
F1
LED
AVA-351-RX

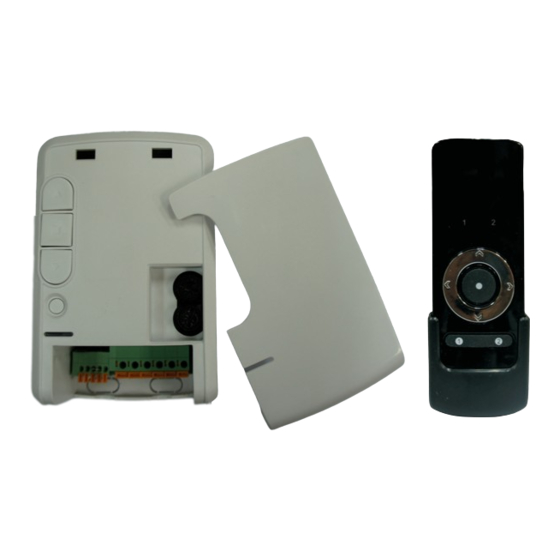

(For AVA-351- RX RF Receiver and AVA-320-RF Remote)
AVA-351-RX
and
Cover
CLOSE
Voltage AC (Volts)
Power
Frequency (MHZ)
Built-in fuse
Temperature (Celsius)
* Black jumper must be connected at all times
(If jumper remove motor move momentary,
it will move when button is press and hold)
CLOSE
OPEN
GND
(STOP)
+24V
DOWN
OPEN
No
Use
No Use
Jumper must be connected
at all times
Other Equipments
Website: www.remacotech.com
220V / 50Hz
1470 Watts
(2 horse - power)
433.92
Motor (10 Amp) F1
PBC Board (0.5 Amp) F2
.
.
-20 C to +60 C
UP
COM
E
N
AC220V
Motorized Projector Lift
V: 2.0
L
Advertisement
Table of Contents
Related Manuals for Remaco AVA-351-RX
Summary of Contents for Remaco AVA-351-RX
- Page 1 C COPYRIGHTS 1998 REMACO TECHNOLOGIES PTE LTD Website: www.remacotech.com V: 2.0 Installation Guide (For AVA-351- RX RF Receiver and AVA-320-RF Remote) Voltage AC (Volts) 220V / 50Hz 1470 Watts Power (2 horse - power) 433.92 Frequency (MHZ) Motor (10 Amp) F1 Built-in fuse PBC Board (0.5 Amp) F2...
- Page 2 Safety Instruction 1) For security, please read the instructions carefully before initial operation; making sure that the power is off before connection. 2) Please clear the memory of RF Receiver before initial operation. 3) Do not learn the remote control when the motor is operating in order to avoid mis-operation. 4) The received signal may be interfered by other communication devices.
