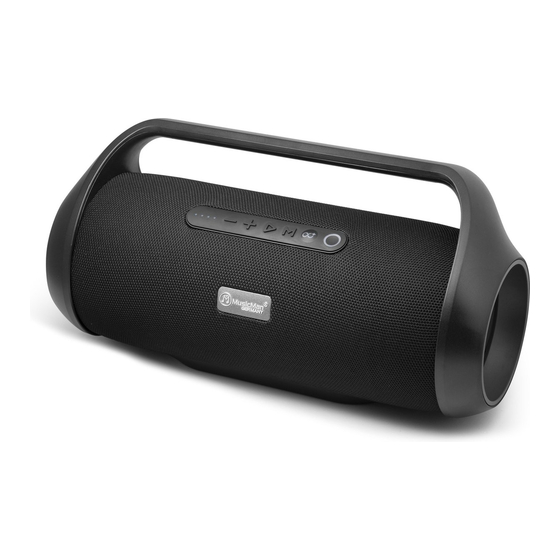

MusicMan SoundBlaster BT-X55 User Manual

MusicMan SoundBlaster BT-X55 User Manual

Advertisement

Quick Links

The manufacturer Technaxx Deutschland GmbH & Co.KG hereby
declares that this device, to which this user manual belongs, complies
with the essential requirements of the standards referred to the Directive
RED 2014/53/EU. The Declaration of Conformity you find here:
www.technaxx.de/ (in bar at the bottom "Konformitätserklärung").
Before using the device the first time, read the user manual carefully.
Service phone No. for technical support: 01805 012643 (14 cent/minute
from German fixed-line and 42 cent/minute from mobile networks).
The support hotline is available Mon-Fri from 9am to 1pm & 2pm to 5pm!
This device has a rechargeable battery. It must be fully charged
before first use. NOTE: Charge the battery of the device every 2–3
Keep this user manual for future reference or product sharing carefully.
Do the same with the original accessories for this product. In case of
warranty, please contact the dealer or the store where you bought this
product.
Enjoy your product. *Share your experience and opinion on one of

Features

• Bluetooth V4.2 loudspeaker with 2x 35W
• TWS function – can be used as a stereo system
(two SoundBlaster required)
• Splash-proof SoundBlaster according to IPX5
• Passive bass radiator on the sides
• Integrated FM-radio
• Built-in battery
• Practical carrying handle
• Optimized Google Assistant and Siri voice control
• Hands-free Mic for easy picking up the call
• Line-in function
• USB support
®
MusicMan
SoundBlaster BT-X55
Free Email: support@technaxx.de
month if it is not used!
the well-known internet portals.
* User Manual
Warranty 2 years

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SoundBlaster BT-X55 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MusicMan SoundBlaster BT-X55

  • Page 1 ® MusicMan * User Manual SoundBlaster BT-X55 The manufacturer Technaxx Deutschland GmbH & Co.KG hereby declares that this device, to which this user manual belongs, complies with the essential requirements of the standards referred to the Directive RED 2014/53/EU. The Declaration of Conformity you find here: www.technaxx.de/ (in bar at the bottom “Konformitätserklärung”).
  • Page 2 IP X5 (splash water proofed) Material ABS plastic & fabric Weight / Dimensions 2.53kg / (L) 36.6 x (W) 14.3 x (H) 18.8cm MusicMan SoundBlaster BT-X55, Micro Package Contents USB charging cable, AUX–IN cable, user manual Hints for Environment Protection: Packages materials are raw materials and can be recycled.
  • Page 3 Product overview 2 3 4 5 6 7 1 Battery indicator 5 Mode button 2 Backward/Volume down 6 TWS pairing button 3 Forward/Volume Up 7 Power On/Off USB port, charging jack, 4 Play/Pause AUX-In port...
  • Page 4 (blinking power button). To pair the SoundBlaster with your smartphone, tablet or PC, start the Bluetooth search on your device and connect it with “MusicMan BT-X55”. The power button stops blinking and the SoundBlaster makes a tone once connected.
  • Page 5 • Long press forward button (3) or backward button (2) to adjust volume up and down. Short press for switch title. • Press play/pause (4) on the device to play/pause the music. • Long press play/pause (4) to activate the voice assistant of your connected smartphone.
  • Page 6 TWS Function Turn on two BT-X55 SoundBlaster speakers you want to pair. Both speakers have to be in Bluetooth mode without any device connected. Short press the TWS pairing button (6) on a speaker. A tone will be audible and TWS button will keep lighting after paired successfully.
  • Page 7 Phone call The BT-X55 SoundBlaster will ring with your set ringtone in Bluetooth-mode. To answer the call, press the play/pause button (4). Talk into the direction of the speaker for best voice transmission. Long press play/pause button to reject the call. To end a call, short press play/pause button or operate on mobile phone to end the call.
  • Page 8 The BT-X55 powers off or does not turn on again could be either a low battery or a problem with the power supply. Charge the BT- X55. (We suggest charging the BT-X55 all 2–3 month if it is not used for a long time.) If the speaker has problems to play from USB sound files, please check the correct formatting of the sources.
