OPERATION MANUAL
Model. EWM-75
Order Code S225
Edition No
: EWM-75-1
Date of Issue
: 02/2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EWM-75 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MetalMaster EWM-75

Summary of Contents for MetalMaster EWM-75

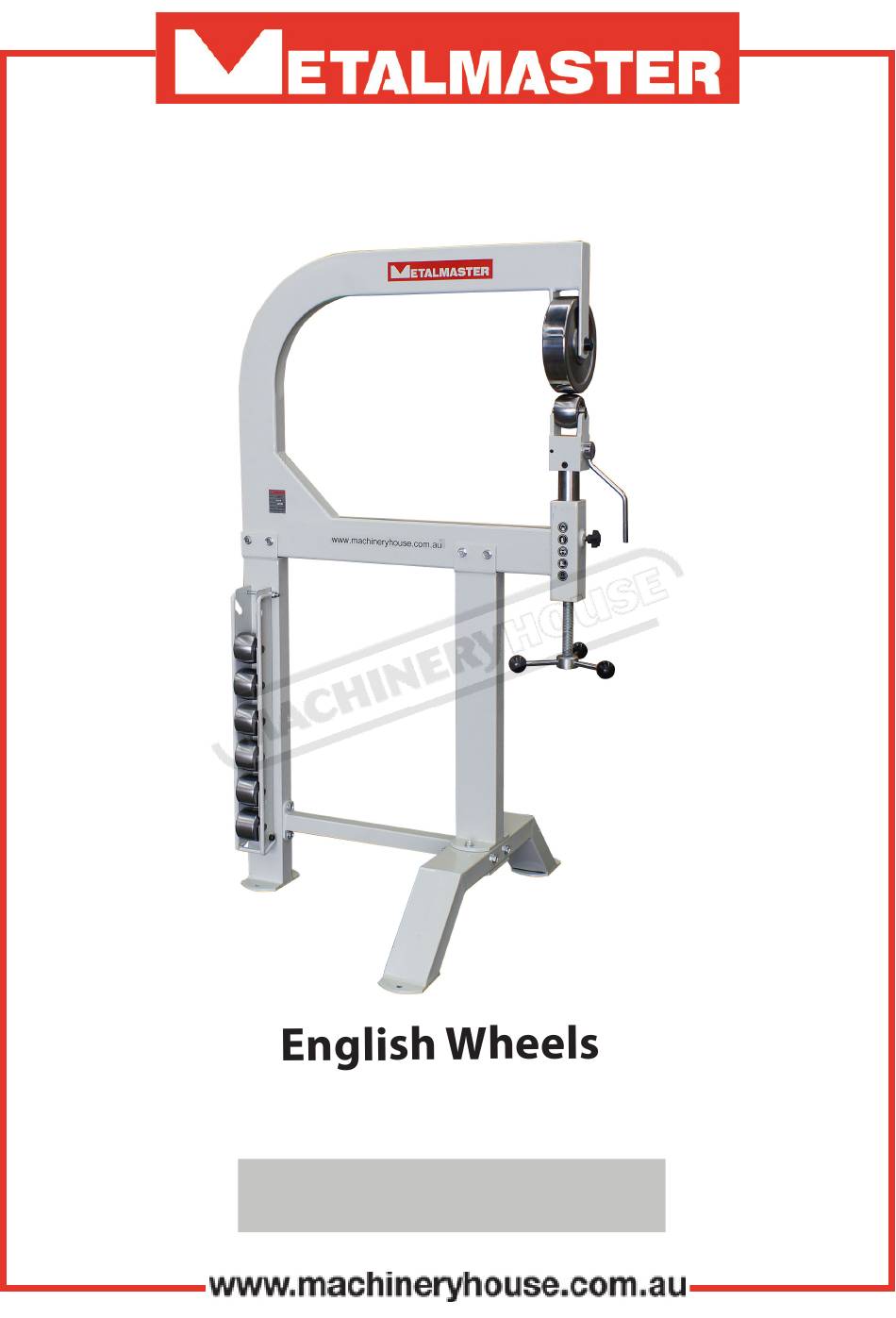

  • Page 1 OPERATION MANUAL Model. EWM-75 Order Code S225 Edition No : EWM-75-1 Date of Issue : 02/2021...
  • Page 2 This manual is only for your reference. Owing to the continuous improvement of the Metalmaster machine, changes may be made at any time without obligation or notice. Please ensure the local voltage is the same as listed on the specification plate before operating any electric machine.

  • Page 3: Table Of Contents

    OPERATION MANUAL C O N T E N T S: 1. GENERAL MACHINE INFORMATION 1.1 Specifications.............. 4 1.2 Accessories Included..........4 1.3 Identification............... 5 2. IMPORTANT INFORMATION 2.1 General Metalworking Machine Safety..... 6 2.2 Specific Safety For English Wheels...... 8 3.

  • Page 4: Specifications

    OPERATION MANUAL 1.1 SPECIFICATION Order Code S225 MODEL EWM-75 Operation (Type) Hand Operated Mild Steel - Capacity (mm/gauge) 1.6 / 16 Copper - Capacity (mm/gauge) Throat Depth (mm) Top Anvil Size (mm) Ø203 x 50 Radius Dies (mm) 50, 73, 101, 152, 203, 305...

  • Page 5: Identification

    OPERATION MANUAL 1.3 IDENTIFICATION Main Frame Adjusting Handle Bottom Die Top Die Handle Stand Locking Knob Bottom Die Rack...

  • Page 6: General Metalworking Machine Safety

    OPERATION MANUAL 2.1 GENERAL METALWORKING MACHINE SAFETY When using any tool, basic safety precautions should always be followed to reduce the risk of personal injury and damage. Read the instruction manual before using any tool or machine! 1. Keep work area clean. Cluttered areas invite injuries. 2.
  • Page 7 OPERATION MANUAL 2.1 GENERAL METALWORKING MACHINE SAFETY 14. Replacement parts and accessories. When servicing, use only identical replacement parts. The use of any other parts will void the warranty. Only use accessories intended for use with the machine or tool. 15.

  • Page 8: Specific Safety For English Wheels

    OPERATION MANUAL 2.2 SPECIFIC SAFETY FOR ENGLISH WHEELS DO NOT use this machine unless you have been instructed in its safe use and operation and have read and understood this manual. Safety glasses must be worn at Close fitting protective clothing or all times in work areas.

  • Page 9: Setup

    3.2 ASSEMBLY THE METALMASTER English Wheel will require minor assembly prior to operation. It is import- ant that the entire manual is read to become familiar with the unit BEFORE you assemble and use the Machine.

  • Page 10: Operation

    OPERATION MANUAL 3. SETUP 10. Insert the Eccentric Shaft (7#), with the Handle (6#), into the hole of Bottom Die Yoke (8#). 11. Thread each Handle Lever (20#) into the Thread Rod (14#). and securely tighten. Thread on to the Handle the Balls (21#). 12.

  • Page 11: Tracking Patterns

    OPERATION MANUAL 4.2 TRACKING PATTERNS Move Between When metal passes between the upper and lower Feed Following the the dies Pattern dies, a “track” or shiny line is pressed into the metal. Various tracking patterns can be used to shape work- pieces depending upon their shape or size.

  • Page 12: Spare Parts

    OPERATION MANUAL SPARE PARTS SECTION Model. EWM-75 Order Code S225 Edition No : EWM-75-1 Date of Issue : 02/2021 The following section covers the spare parts diagrams and lists that were current at the time this manual was originally printed. Due to continuous improvements of the machine, changes may be made at any time without notification.
  • Page 13 OPERATION MANUAL SPARE PARTS DIAGRAM...
  • Page 14 OPERATION MANUAL SPARE PARTS LIST ITEM DESCRIPTION QTY. ITEM DESCRIPTION QTY. FRAME BACK STAND TOP DIE PLATE SHAFT LINK BRACKET KNOB HANDLE LEVER STEEL TUBE HANDLE BALL HANDLE WASHER 20MM ECCENTRIC SHAFT BOLT M10X80 BOTTOM DIE YOKE WASHER 10MM BEARING BOLT M10X85 SHAFT NUT M10...

  • Page 15: Risk Assessment Sheets

    General Machinery Safety Instructions Machinery House requires you to read this entire Manual before using this machine. 1. Read the entire Manual before starting 14. Use correct amperage extension cords. machinery. Machinery may cause serious injury if Undersized extension cords overheat and lose not correctly used.
  • Page 16 English Wheel Safety Instructions Machinery House requires you to read this entire Manual before using this machine. 1. Maintenance. 8. Work area hazards. Make sure all moving parts are Keep the area around the locked down before any inspection, adjustment or English Wheel machine clean from oil, tools, chips.
