- Page 1 – Twin 4XL I nstallation / User Manual...

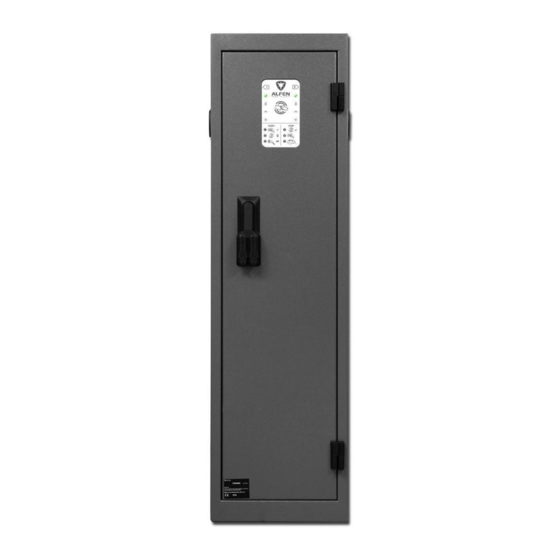

- Page 2 EXTERIOR VIEW (ART. NO. 934452-502 / -505 / -550)
- Page 3 INTERIOR VIEW (ART. NO. 934452-502 / -505 / -550) 335 mm...
- Page 4 EXTERIOR VIEW (ART. NO. 934452570) REMARK - The socket type E and socket shutter type 2 on the right side of the charging station cannot be used simultaneously. - Switching between the sockets is not possible during the charging process. - When both sockets are occupied at the beginning of a charging process, the socket shutter type 2 for EV charging will always take priority over the socket type E.
- Page 5 INTERIOR VIEW (ART. NO. 934452570) 335 mm...
- Page 6 Twin 4XL manual | Version 2.9 | July 2021...
- Page 7 Step-by-step Twin 4XL – installation and commissioning Thank you for purchasing this Alfen charging station for electric vehicles! We advise you to carefully read the contents of this manual, to ensure a safe and proper installation and enable you to fully use all the advanced features of this product.
-
Page 8: Table Of Contents
5.1 Backoffice management systems 5.2 Establishing a connection 5.2.1 Wireless connection 5.2.2 UTP (Ethernet) connection 5.3 Registering your ICU EZ account 5.4 Registering your charging station within your own backoffice management system Twin 4XL manual | Version 2.9 | July 2021... -
Page 9: Safety And Usage Instructions
1. SAFETY AND USAGE INSTRUCTIONS 1.1 Purpose and intended audience In the following cases, Alfen ICU B.V. shall not be liable The Alfen Twin 4XL charging station is exclusively intended in any possible way for any kind of damages while all... -
Page 10: Product
Main switch 4-pole (refer to fig. 2 for detailed the number of phases, maximum charging current and location) voltage Identification number of the charging station (refer to Article number of the charging station description under paragraph ‘Identification label’) Twin 4XL manual | Version 2.9 | July 2021... -
Page 11: Status Indications On The Interface
Figure 4: Display of the Alfen Twin 4XL during a charging session (charge point on the left in use) Status and information interface;... -
Page 12: Using The Charging Station
- Switching between the sockets is not possible during the charging process. - When both sockets are occupied at the beginning of a charging process, the type 2 shutter socket for EV charging will always take priority over the type E socket. Twin 4XL manual | Version 2.9 | July 2021... -
Page 13: Technical Specifications Alfen Twin 4Xl
Type E socket, conform IEC 60884-1, CEE7/5, NF C 61-314 Charging mode Mode 2 Nominal output voltage (+/- 10%) 230VAC, 1-phase Nominal current Max. 16A Nominal power Max. 3.6 kW, 1-phase Twin 4XL manual | Version 2.9 | July 2021... -
Page 14: Input / Power Supply
Integrated in firmware, shutdown at: 105% after 1,200 seconds; Overcurrent protection 112% after 100 seconds; 120% after 5 seconds; 150% after 2 seconds Short-circuit per outlet: fuses 3x 40A gG protection Twin 4XL manual | Version 2.9 | July 2021... -
Page 15: Charging And Access
In case of higher temperatures, the charging station will automatically decrease the charging capacity to stabilize Twin 4XL manual | Version 2.9 | July 2021... -
Page 16: Casing
Various backoffice management systems available upon request * Communication via * Autodetect GPRS UTP/LAN The settings marked with an asterisk *) may incur additional costs. The default settings are always mentioned first,. Twin 4XL manual | Version 2.9 | July 2021... -
Page 17: Accessories
1x Wiska cable gland M12x1.5 1x Connection nut 12 M12x1.5 1x Gasket cable entry 3x Grommet for ethernet cable 1x Grommet for ground cable 2x Grommet for Smart Charging Network 1x Bottom gasket plate Twin 4XL manual | Version 2.9 | July 2021... -
Page 18: Assembly And Connecting
Carefully read these instructions prior to installing the • Earthing the charging station is the responsibility of the charging station. Alfen ICU B.V. is not liable for any owner. consequential damage caused by usage of this manual. •... -
Page 19: Preparing The Charging Station
Measure below the surface level and level the hole this distance before proceeding. horizontally. c. Guide the earth cable, originating at the earth Twin 4XL manual | Version 2.9 | July 2021... -
Page 20: Electrical Installation
If a transparent cover cap was delivered for the internal components, install it with the accompanying plastic bolts; Close the door and the lock and make sure it is properly locked. Twin 4XL manual | Version 2.9 | July 2021... -
Page 21: Commissioning The Charging Station
- Internal relays are tested, switching is audible The LED interface flashes briefly; The red crosses flash twice; The Alfen Twin 4XL is now ready to use. If the charging station is configured to connect with a backoffice management system, this will take place automatically and directly. -
Page 22: Connectivity
Connect during the commissioning process. Ensure that your network settings allow for establishing a connection to the Alfen servers over a secured FTP con- If you opted for another backoffice management system nection. This enables the exchange of software updates while placing your order, it might be required to install the and diagnostics. -
Page 23: Registering Your Icu Ez Account
If you want to use your own backoffice, or one delivered by a third party, please ensure a correct registration of the charging station model. Every Alfen Twin 4XL model has its own so called ChargePoint-Model that is automatically sent along during registration pursuant to OCPP specifications. This consists... -
Page 24: Alfen Icu B.v
Contact – Alfen ICU B.V. Hefbrugweg 28 1332 AP Almere The Netherlands P.O. box 1042 1300 BA Almere The Netherlands Tel. Sales Support: +31 (0)36 54 93 402 Tel. Service: +31 (0)36 54 93 401 Website: www.alfen.com/en/ev-charge-points...
