AXIOMTEK eBOX671-521-FL Series Quick Installation Manual page 2

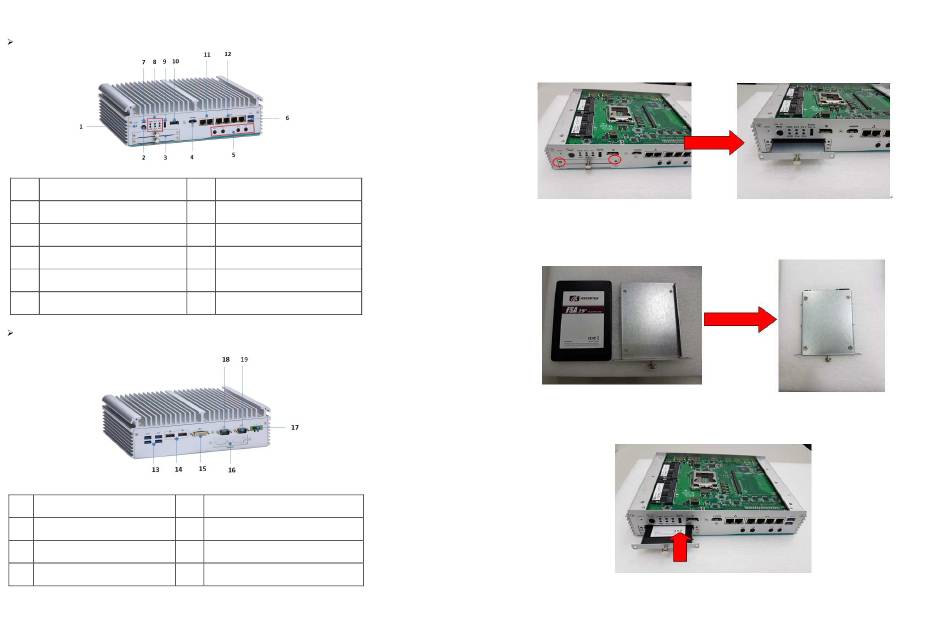

I/O Outlets
The following figures show I/O outlets on the eBOX671-521-FL.
Front View
1 1 x Reset button
2 1 x Power button
3 2 x Swappable HDD tray
4 1 x HDMI 1.4
5 4 x Antenna opening
6 2 x USB 3.1 (Gen1)
Rear View
13 4 x USB 3.1 (Gen2) 17
14 2 x DisplayPort via MXM 18
15 1 x DVI-I 19
16 Flexible I/O Window
2
7 1 x AT/ATX quick switch
8 System LEDs
9 1 x Remote power switch
10 1 x DisplayPort 1.2
11 2 x GbE
12 4 x PoE
24VDC power input
COM2 (RS232/422/485)
COM1 (RS232/422/485)
©Copyright 2019 Axiomtek Co., Ltd.
Version A1 May 2019
Printed in Taiwan
9416K671020E
Installation of Hard Disk Drive
Step 1 Turn off the system, and unplug the power adaptor.
Step 2 Loosen two of the SATA drive tray's screws and extract the
SATA HDD drive bay.
Step 3 Turn the SATA drive tray upside down to install SSD/HDD and
then fasten the four HDD screws to secure the SATA drive tray.
Step 4 Slide the SATA drive tray back into the system and fasten the
screws firmly to complete the installation.
©
