NOTE: This User Instruction Manual contains important information, including
safety & installation points, which will enable you to get the most out of
your appliance. Please keep it in a safe place so that it is easily available
for future reference, for you or any person not familiar with the operation of
the appliance.

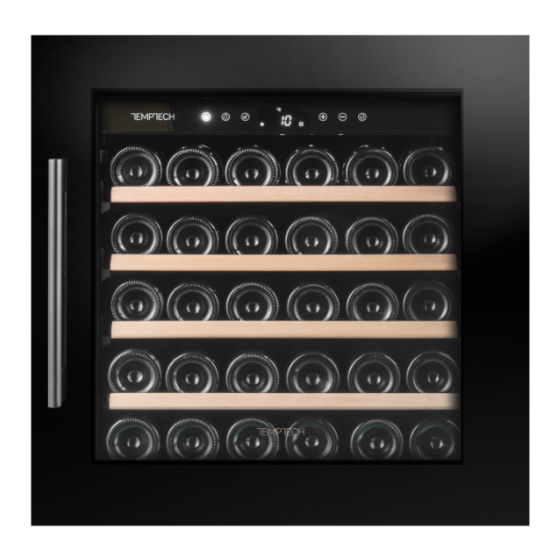

Wine Coolers
USER MANUAL
O Z 6 0 S B
O Z 6 0 D X
O Z 9 0 D B
OZ90DW
OZ124DB
O Z 6 0 D B
O Z 6 0 D W
O Z 9 0 D X
OZ124SB
V1/2021
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Temptech OZ60SB
Summary of Contents for Temptech OZ60SB
- Page 1 Wine Coolers USER MANUAL O Z 6 0 S B O Z 6 0 D B O Z 6 0 D X O Z 6 0 D W O Z 9 0 D B O Z 9 0 D X OZ90DW OZ124SB OZ124DB...
-
Page 2: Table Of Contents
--CONTENTS-- Conformity Energy Saving Service 05 DESCRIPTION OF APPLIANCE Product Features Control Panel Interior light The Wine Cooler shelves 09 USING YOUR WINE COOLER Before Switching On During First Use Locking/Unlocking The Control Panel Setting The Temperature Range Setting The Temperature Power On/ Off And Standby The Interior Light Switch... - Page 3 SAFETY INFORMATION This appliance uses flammable refrigerants and flammable insulation blowing gases. Before using the appliance, please properly position and install it as described in this manual. To avoid the risk of fire, electrical shock, or injury when using the appliance, follow these basic precautions: ●...
- Page 4 These cleaners may damage or discolor the interior. ● Do not use this appliance for other than its intended purpose. ● Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. ● The use of attachments not recommended by the manufacturer may be hazardous.
- Page 5 – WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. – WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. – WARNING: Do not damage the refrigerant circuit. –...
-
Page 6: Conformity
basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment. „ Conformity By placing the marking on this product, we declare, on our own responsibility, compliance to all of European safety ,health and environmental requirements stated in the legislation for this product. -
Page 7: Description Of Appliance
DESCRIPTION OF APPLIANCE „ Product Features OZ60SB OZ60DB OZ60DX OZ60DW Dual Zone Bottles Single & Dual Zone Single Zone Bottles 1 Control Panel 5 Glass Door 2 Beech Shelves (Long) 6 Handle 3 Separator (Dual Zone) 7 Gasket 4 Beech Shelves (Short) - Page 8 OZ124SB OZ124DB Dual Zone Bottles Single & Dual Zone Single Zone Bottles 1 Control Panel (Single Zone) 5 Glass Door 2 Beech Shelves (Long) 6 Handle 3 Control Panel (Dual Zone) 7 Gasket 4 Beech Shelves (Short) 8 Feet .06.
- Page 9 „ Control Panel Buttons on Control Panel: Single Zone Power Temp.Plus Light Temp.Minus Lock F Switch Temp. Display Mode Display Window Marks on Dispaly Window Warning Digital Compressor Screen on Lock .07.
-
Page 10: Interior Light
Buttons on Control Panel: Dual Zone Power Temp.Plus Light Temp.Minus Temp. F Switch Display Mode Temp.Zone Lock Select Display Window Marks on Dispaly Window Digital On Compressor Upper Zone Upper Zone Lock Warning Screen Lower Zone Digital On Lower Zone „... -
Page 11: The Wine Cooler Shelves
Note: This LED light has a long lifetime. Once it is broken, it is mandatory to call aftersales center to get a new one. A replacement made by unqualified people without supervision from an electrical engineer would result in electrical shock and injury. o The cooling zone has an interior light. -
Page 12: During First Use
Single Zone o The appliance is with 1 temperature range, the range of Single Zone is 5-20 ºC (41-68 ºF). o Includes model OZ60SB and OZ124SB Dual Zone o OZ60DB, OZ60DX and OZ60DW are with 1 temperature range, the range of both Upper Zone and Lower Zone is 5-20 ºC (41-68 ºF). -
Page 13: Setting The Temperature
„ Setting The Temperature Single Zone o Make sure the Control Panel is under unlocked condition; o The digital will start to flash and show the previous set temperature for the first press of Temperature Plus or Minus button; o When the digital is flashing, press the Temperature Plus Button once, the digital will be increased by 1°C/1°F with a sound of beep;... -
Page 14: Power On/ Off And Standby
„ Power On/ Off And Standby o The appliance will be turned on automatically when it is plugged; o The appliance will not be turned off unless to unplug it; o To stop all functions, press the power button for 3 seconds whatever the control panel is locked or unlocked, a beep will sound, the appliance will be on standby condition;... -
Page 15: Lighting On/Off Buttons Backlit And Display Window
together for 3 seconds, o Press the temp.plus and minus button the mark will light on on the display window, the mark will light off at the same time; o The button can be pressed whatever the control panel is locked or unlocked;... -
Page 16: Error Code
flash, the Warning mark will light on, the digital will show 25°C or 77ºF and flash once each 2 seconds, in such case, pls.call your local after- sale service immediately; o The Overheating Warning will be turned off automatically when the temperature in cabinet goes down less than 25°C(77ºF) and last for more than 2 minutes „... - Page 17 IMPORTANT: Your appliance is ideally suited to store 0.75 litre Bordeaux style wine bottles. You must make sure that they do not prevent the door from shutting properly. o Always check that you can close the door without it fouling on a wine bottle, before shutting it. o When loading several bottles of wine at once, it will take longer for the appliance to cool the individual bottles.
- Page 18 OZ60SB OZ60DB OZ60DX OZ60DW OZ90SB OZ90DB OZ90DX OZ90DW .16.
-
Page 19: Storing Your Wines
„ Storing Your Wines The chart below indicates the ideal storage temperatures for different types of wine: Temperature Temperature Type of wine (Celsius) (Fahrenheit) Red wine (*) 15.5 – 18.5°C 59.9 – 65.3°F White wine (**) 10 - 15°C 50 – 59°F Sparkling wines/ 7.2 –... -
Page 20: Wine Storage Problems
o When stored correctly, white wines can keep well for up to two years. Full bodied reds will age well for ten years and dessert wines will age well for up to twenty years. o When you buy a bottle of wine, you should transfer it to a suitable storage location immediately (if you are not going to store it in your Wine Cooler). -
Page 21: Installation
consists of tartrate crystals and is totally harmless. If anything the building of sediment can be considered a good sign because it means that the wine was not subjected to much (if any) filtering, meaning that the flavours and aromas should be preserved better. A good way to get around sediment (if it is a problem) is to stand the bottle upright, the day before opening, so that the sediment can settle to the bottom of the bottle. -
Page 22: Positioning
„ Positioning o It is advisable that your appliance is only installed in a location where the ambient temperature of the room, corresponds with the climate classification that is stated on the rating plate of your appliance. Your appliance may not function correctly if the ambient temperature falls outside of the following ranges. -
Page 23: Built-In Installation
„ Built-In Installation OZ60SB OZ60DB OZ60DX OZ60DW 200cm² Min. (Hot Air Outlet) 200cm² Min. (Cool Air Inlet) To fix the appliance with Cabinet, pls. screw the 3 screws (ST4.2*12mm) through the Top Bracket. The Top Bracket is pre- installed on top of appliance. - Page 24 OZ90DB OZ90DX OZ90DW 200cm² Min. (Hot Air Outlet) 200cm² Min. (Cool Air Inlet) To fix the appliance with Cabinet, pls. screw the 3 screws (ST4.2*12mm) through the Top Bracket. The Top Bracket is pre- installed on top of appliance. Top Bracket Screws (ST4.2*12mm) .22.
- Page 25 OZ124SB OZ124DB 200cm² Min. (Hot Air Outlet) 200cm² Min. (Cool Air Inlet) To fix the appliance with Cabinet, pls. screw the 3 screws (ST4.2*12mm) through the Top Bracket. The Top Bracket is pre- installed on top of appliance. Top Bracket Screws (ST4.2*12mm) .23.
-
Page 26: Installing The Handle
„ Installing The Handle Gasket Handle Washer Handle Screws o Remove the door Gasket slightly to expose the two screw holes. o Fix the Handle by screwing the two Handle Screws tightly, the Handle Screws with Washers are pre-installed inside the screw holes, pls.do not unscrew the Handle Screws too much in case the Washers fell off to the bottom of door frame. - Page 27 o Unscrew the 2 Hex Phillips Screws (M5*16) from the Right Upper Hinge; o Unscrew the 2 Phillips Flat Screws ( M4*8) from the right lower Door Hinge; .25.
- Page 28 o Hold the Door by two persons if necessary, remove the Door ; o Rotate the door by 180 degrees ; .26.
- Page 29 Make sure the hole position of the left door hinge is aligned with the hole position on the cabinet; o Install the Upper Door Shaft (Left/Right) on the upper left door corner by screwing the 2 Phillips Flat Screws ( M4*8); .27.
- Page 30 Install the Upper Door Shaft (Left/Right) on the upper left door corner by screwing the 2 Phillips Flat Screws ( M4*8); o Install the Top Bracket by screwing the 3 screws. .28.
-
Page 31: Cleaning And Maintenance
CLEANING AND MAINTENANCE „ Cleaning The Wine Cooler WARNING: PLEASE ENSURE THAT YOUR APPLIANCE IS DISCONNECTED FROM Y O U R M A I N S S U P P L Y B E F O R E ATTEMPTING TO CLEAN IT. Note: Clean regularly surfaces that can come in contact with wines. -
Page 32: Removing The Shelves For Cleaning
o After washing the appliance, wipe over the area that you have cleaned with a damp cloth and then dry it thoroughly. o When cleaning is complete, dry your hands and then reconnect the plug to your mains supply. „ Removing The Shelves For Cleaning o Before removing a Shelf from the appliance, it is necessary to remove all the bottles on the Shelf. -
Page 33: Vacation Time
IMPORTANT: If the appliance is unplugged, the power is lost or turned off you must wait 5 minutes before restarting the Wine Cooler. If you attempt to restart before this time delay, the compressor could be damaged. „ Vacation Time Short vacations: Leave the Wine Cooler in operation for holidays of less than 3 weeks. - Page 34 HEAT SETTING, OR HEAT THE SEAL FOR A LONG PERIOD OF TIME. OTHERWISE ,DAMAGE MAY BE CAUSED TO THE DOOR SEAL, WHICH WOULD NOT BE RECTIFIED UNDER THE GUARANTEE FREE OF CHARGE. IMPORTANT: WHEN YOU HAVE REVERSED THE DOOR OF THE APPLIANCE, IF YOU HAVE PLACED THE APPLIANCE ON ITS BACK, YOU MUST WAIT FOR 8 HOURS BEFORE SWITCHING THE APPLIANCE BACK ON.
-
Page 35: Troubleshooting
TROUBLESHOOTING IMPORTANT: If your Wine Cooler appears not to be operating properly, before contacting the Customer Care Department, please refer to the checklist below. PROBLEM POSSIBLE CAUSE Not plugged in. The Wine Cooler does not operate The appliance is turned off. The circuit breaker tripped or a blown fuse. - Page 36 DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF. Please note that if an engineer is asked to attend whilst the product is under guarantee and finds that the problem is not the result of an appliance fault, then you may be liable for the cost of the call out charge.
