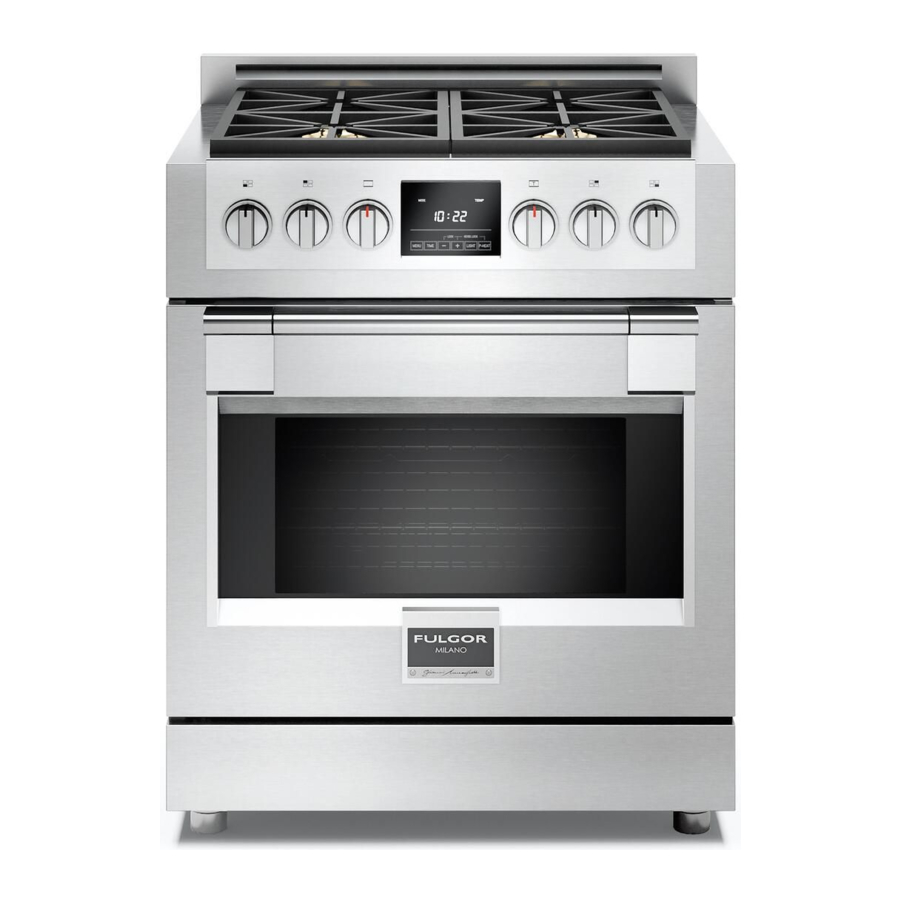

PRO-RANGE 30"- 36" -48" DUAL FUEL
INS TALLATI ON INSTRUCTIONS
INSTRUCTIONS D'INS TALLATI ON
INSTRUCCIONES PARA LA INS TALACIÓN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sofia and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fulgor Milano Sofia

Summary of Contents for Fulgor Milano Sofia

  • Page 1 PRO-RANGE 30”- 36” -48” DUAL FUEL INS TALLATI ON INSTRUCTIONS INSTRUCTIONS D’INS TALLATI ON INSTRUCCIONES PARA LA INS TALACIÓN...
  • Page 2 Our goal is to deliver products that are worthy of your family recipes and that will breathe life into your kitchen, the heart of your home. We invite you to enjoy your new Fulgor Milano product with same amount of care and attention that we have put into creating it.

  • Page 3: Table Of Contents

    WARNING TABLE OFCONTENTS PAGE 1- Special Warnings This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. You Before Starting Installation can be killed or seriously injured if you don’t follow these Mobile Home Installation instructions.

  • Page 4: 1- Special Warnings

    1 - Special Warnings IMPORTANTINSTRUCTION Pleaseread allinstructionsbeforeusingthisappliance. Proper installation is your responsibility. Have a qualified • Assure that gas connection conforms with local codes and technician install this range. ordinances. In the absence of local codes, installations must conform with American National Standard, National IMPORTANT Fuel Gas Code ANSI Z223.1 / NFPA 54 - latest edition** Canadian CAN / CGA_B 149.1 or CAN / CGA-149.2...

  • Page 5: 2- Productdimensionsandcutoutrequirements

    2 - Product Dimensions and Cutout Requirements PRODUCTDIMENSIONS WIDERANGE MODELS 29 3/4” (75.8) 35 3/4” (91.0) 47 7/8” (121.6) 29 3 / 4 ” (75.6) 27 1 / 2 ” (69.7) 7 ” (17.9) 9" (22.8) [optional] 3" ( 7.6) [optional] 1"...
  • Page 6 2 - Product Dimensions and Cutout Requirements CUTOUTREQUIREMENTS Min. 48” (122) Max. 13” (33) Min. 30” (76.2) Minimum to To bottom of combustibles when ventilation hood no ventilation hood is present** Min. 18” Min. 18” (45.7) (45.7) Min. 6 ” Min.

  • Page 7: Anti-Tipbracketinstallation

    2 - Product Dimensions and Cutout Requirements Before moving the range, protect any finished flooring and WARNING secure oven door(s) closed to prevent damage. VenthoodCombinations: It is recommended that these ranges be installed in conjunction with a suitable overhead vent hood. Due to the high heat capacity of this unit, particular attention should be paid to the hood and ductwork installation to assure it meets local building codes.

  • Page 8: 3- Installationinformation

    3 - Installation Information TOOLS WILLYOUNEED WARNING • Excessive WeightHazard Use two or more people to move and install range. Failure to do so can result in back or other injury. • CutHazard Beware of sharp edges. Use the polystyrene ends when carrying the product.

  • Page 9: 4- Installationinstructions

    4 - Installation Instructions STEP2 Open the top (2) and remove the accessories (3) then lift off Do not tip the range on its side when installing the legs.The the cardboard sheath (4). sidewalls are not designed to bear the weight of the range and will bend.
  • Page 10 4 - Installation Instructions STEP3(For48” rangeonly) STEP5 Remove the rear wood brace (5) and the front metal securing Slide back more and tilt back (9), putting the rear legs on the brackets (6). floor and then mount the front legs (10) while in this angled position supported by the rear legs and the skid.
  • Page 11 4 - Installation Instructions STEP7 STEP8 In case it is necessary to move the range; using the foam and / Install the back guard (if provided) by the three screws on the or cardboard packaging (13), replace them around the range back.
  • Page 12 4 - Installation Instructions STEP9 STEP10 After completing the electrical and gas connections (see Hook tabs on bottom of toekick into slots on either side of the included instructions) measure the four corners in cutout area frame and rotate up until the magnets at the top of toekick to verify if flooring is level.

  • Page 13: 5- Gasrequirement

    5 - Gas Requirement QUALIFIED SERVICE MAN OR GAS APPLIANCE INSTALLER GASSHUTOFFVALVE MUSTMAKETHEGASSUPPLYCONNECTION. Leak testing of the appliance shall be conducted by the installer OPEN POSITION according to the instructions given. You must install the supplied connection parts seen here in this configuration to the main gas manifold on the appliance.

  • Page 14: Pressuretesting

    5 - Gas Requirement PressureTesting LOCATION OFGASRATINGPLATE The appliance must be isolated from the gas supply piping system by closing its individual manual shut-off valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1 / 2 PSIG (3.5 kPa). This appliance, as well as its individual shut-off valve, must be disconnected from the gas supply piping system during any pressure testing of the system at test pressures in excess of 1 / 2...

  • Page 15: Gasconnection

    5 - Gas Requirement GasConnection A 1 / 2” NPT x 1 / 2” flare union adapter is required at each end of the flexible connector. If a flexible connector is used assure that both the appliance • Thread the appliances pressure regulator with 1 / 2” male pressure regulator and manual shut-off valve are joined solidly to end connection both supplied with this appliance.

  • Page 16: 6- Conversionforlpor Ng Gas

    6 - Conversion for LP or NG Gas ConvertingAppliancefor UsewithLP Gas EXPLODEDVIEW OFBURNER WARNING Conversion is to be performed by an AUTHORIZED SERVICER (or other qualified agency) in accordance with the manufacturer’s instructions and all codes and requirements of the authority having jurisdiction. Failure to follow instructions could result in serious injury or property damage.

  • Page 17: Convertingappliancesfor Usewithng Gas

    6 - Conversion for LP or NG Gas Pressureregulatorconversion EXPLODEDVIEW OFBURNER The appliances is designed for use with NG gas or LP gas. The gas pressure regulator is supplied. It must be installed in the gas supply line ahead of the manifold entrance. It is pre-set for use with the gas as indicated on the appliance label supplied with the appliance.

  • Page 18: Injectorsposition

    6 - Conversion for LP or NG Gas INJECTORSPOSITION NG-DUALFLAMERING 30” SIMMER MAIN FLAME 180 SIMMER *MAIN FLAME 180 or *MAIN FLAME 192 NG-DUALFLAMERING 36” SIMMER MAIN FLAME 180 SIMMER *MAIN FLAME 180 or *MAIN FLAME 192 NG-DUALFLAMERING & GRIDDLE 48” SIMMER MAIN FLAME 180 MAIN FLAME 155...
  • Page 19 6 - Conversion for LP or NG Gas INJECTORSPOSITION LP-DUALFLAMERING 30” SIMMER MAIN FLAME 105 LP-DUALFLAMERING 36” SIMMER MAIN FLAME 105 LP-DUALFLAMERING & GRIDDLE 48” SIMMER MAIN FLAME 94 MAIN FLAME 105...

  • Page 20: Lowflameadjustment

    6 - Conversion for LP or NG Gas LowFlameAdjustment This appliance is shipped from the factory with low and DANGER medium flame settings adjusted. If further adjustment is necessary, proceed as follows: Lightinggasburnerswithamatchisdangerous. Youshouldmatchlighttheburnersonly in anemergency. Adjustment for Burners with one or two flame Light a match and hold the flame near the burner you want to light.

  • Page 21: Theburnerflames

    6 - Conversion for LP or NG Gas Proper adjustment will produce a stable, steady blue flame of minimum size. The final adjustment should be checked by turning the knob from high to low several times without extinguishing the flame. This adjustment, at low setting, will automatically provide the proper flame size at medium setting.

  • Page 22: Electricalsupply

    7 - Electrical supply Before installing the oven have a qualified electrician verify Grounding through the neutral conductor is prohibited for new that your home is provided with adequate electrical service branch-circuit installations (1996 NEC); mobile homes; and and that the addition of the oven will not overload the branch recreational vehicles, or in an area where local codes prohibit circuit on which it is to be installed.

  • Page 23: 8 - Electrical Connections

    8 - Electrical connections LOCATION OFELECTRICALCONNECTION CAUTION Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be done by a qualified technician. This may reduce the risk of personal injury and damage to the appliance. Never modify or alter the construction of the appliance by removing panels, wire covers, screws, or any other part of the product.

  • Page 24: 4-Wireconnection

    8 - Electrical connections ELECTRICALCONNECTION OPTIONS IFYOURHOMEHAS IFYOURHOMEHAS ANDYOU WILL CONNECTION ANDYOU WILL CONNECTION TYPE: BECONNECTING TYPE: BECONNECTING 4-wirereceptacle 3-wirereceptacle A UL listed, 250- A UL listed, 250- (NEMAtype 14-50R) (NEMAtype 10-50R) volt minimum, volt minimum, 30-amp, range 30-amp, range power supply power supply cord...

  • Page 25: Directelectricalconnectiontothecircuitbreaker, Fusebox Or Junctionbox

    8 - Electrical connections DirectElectricalConnectiontotheCircuitBreaker, FuseBox or JunctionBox If the appliance is connected directly to the circuit breaker, fuse box or junction box, use flexible, armored or non metallic sheathed copper cable (with grounding wire). 3-WIREBRANCHCIRCUIT(forUSonly) 4-WIREBRANCHCIRCUIT(forUSonly) Refer to Figure A: Refer to Figure B: where local codes allow the connection of GROUND wire from - Disconnect ground from neutral at free end of conduit.

  • Page 26: 9 - Final Checklist

    9 - Final checklist Connectingto208voltcircuit c) By means of the [FUNCTION] knob, select the “208V” This option is provided for areas where standard 240 Volt option and confirm with the same knob. service is not available. This option must be accessed with the oven connected to power source, and using the following sequence: a) With the oven on, select the icon...
  • Page 27 09FL9720 ed 09 / 2020...
