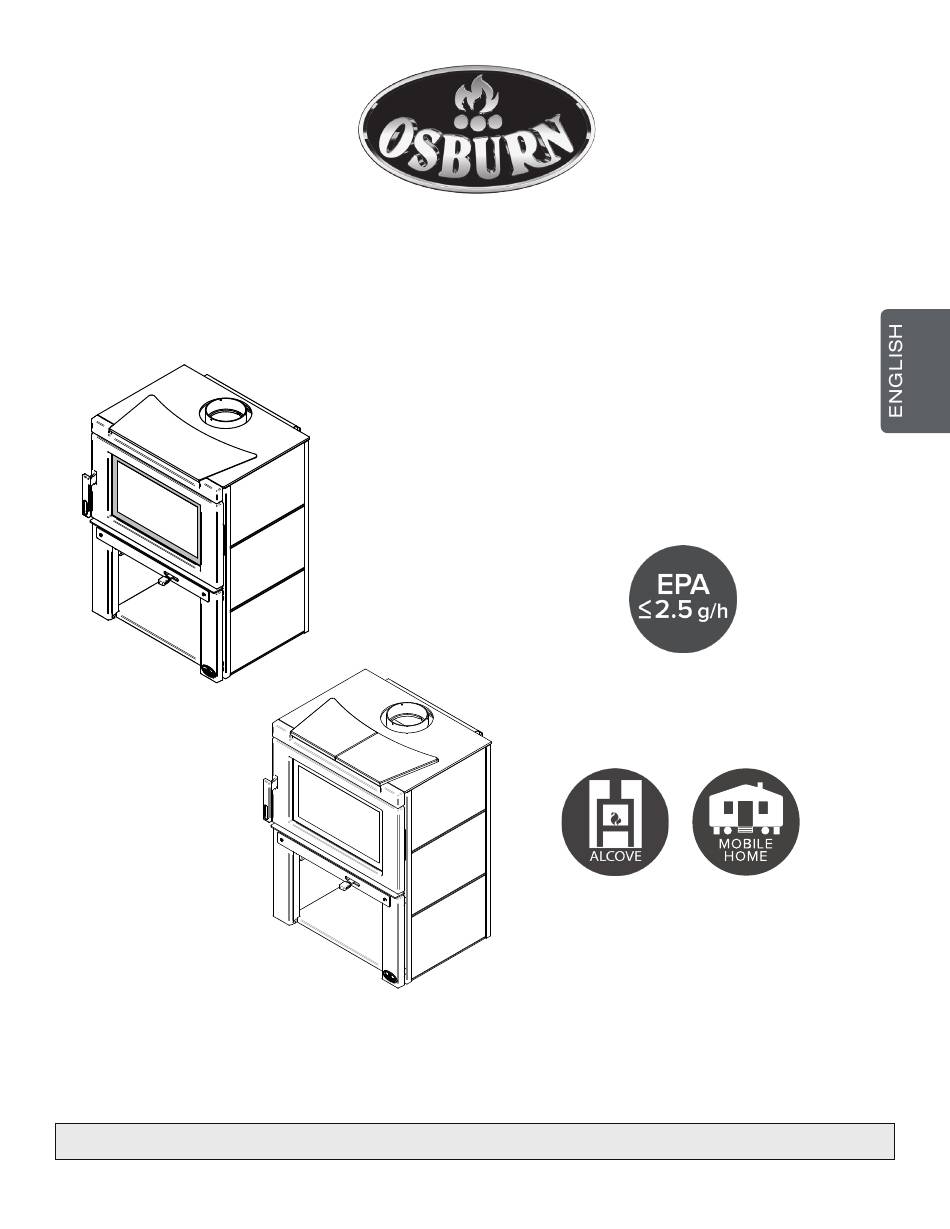

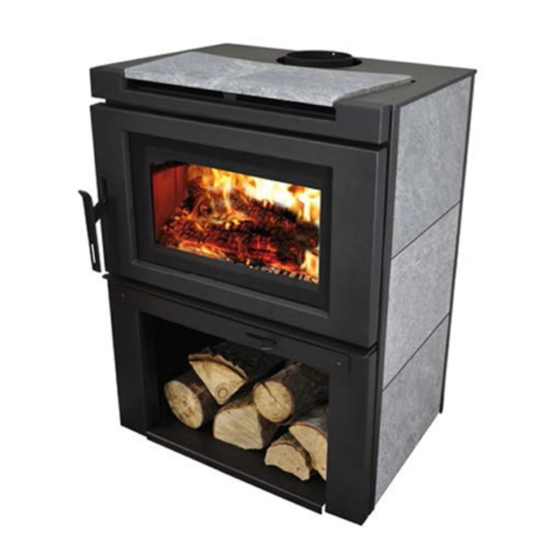

Installation and Operation Manual
MATRIX
(OB02032 model)
US Environmental Protection Agency
phase II certified wood stove compliant
with 2020 cord wood standard
Safety tested according to ULC S627,
UL 1482 and UL 737 standards by an
accredited laboratory.
MOBILE
HOME
CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION REQUIREMENTS IN
LOCAL AREA.
READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS WOOD STOVE. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.
READ AND KEEP THIS MANUAL FOR REFERENCE
45989A
Printed in Canada
2021-06-27

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MATRIX OB02032 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Osburn MATRIX OB02032

Summary of Contents for Osburn MATRIX OB02032

  • Page 1 Installation and Operation Manual MATRIX (OB02032 model) US Environmental Protection Agency phase II certified wood stove compliant with 2020 cord wood standard Safety tested according to ULC S627, UL 1482 and UL 737 standards by an accredited laboratory. MOBILE HOME CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION REQUIREMENTS IN LOCAL AREA.
  • Page 3 It is also highly recommended to register the warranty online at https://www.osburn-mfg.com/en/warranty/warranty-registration/ Registering the warranty will help to quickly find the information needed on the unit. Installation and Operation Manual - Matrix...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS PART A - OPERATION AND MAINTENANCE ................7 1. Safety Information ........................7 2. General Information ........................8 2.1 Performances ........................8 2.2 Specifications ........................9 2.3 Dimensions ........................10 2.4 EPA Certification Loading ....................12 2.5 Materials ........................13 2.6 Zone Heating ........................13 2.7 Emissions and Efficiency ....................14 3.
  • Page 5 Appendix 5: Optional Fire Screen Installation ................47 Appendix 6: Blower and optional thermodisc installation ............48 Appendix 7: Air Tubes and Baffle Installation ................49 Appendix 8: Exploded Diagram and Parts List ................ 51 Osburn Limited Lifetime Warranty ..................... 54 Dealer: Installer: Phone Number:...
  • Page 6 CERTIFICATION PLATE Page 6 Installation and Operation Manual - Matrix...

  • Page 7: Part A - Operation And Maintenance

    PART A - OPERATION AND MAINTENANCE 1. Safety Information • This stove has been tested for use with an open door in conjunction with a fire screen, sold separately. The door may be open, or fire screen removed only during lighting procedures or reloading. Always close the door or put back the fire screen after ignition.

  • Page 8: General Information

    2. General Information Performances Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output. Model Matrix (OB02032) Fuel Type Dry Cordwood Combustion Technology Non-catalytic Recommended heating area (sq. ft. 500 to 2,100 ft (47 to 195 m Overall firebox volume...

  • Page 9: Specifications

    Specifications Maximum log length 20 in (508 mm) east-west Flue outlet diameter 6 in (150 mm) Recommended connector pipe diameter 6 in (150 mm) Type of chimney ULC S629, UL 103 HT (2100 °F) Baffle material C-Cast Approved for alcove installation Approved for mobile home installation Type of door Simple, glass with cast iron frame...

  • Page 10: Dimensions

    Dimensions 27 1/4" 692mm 25 1/2" 648mm 12 3/4" 324mm 5 3/4" 145mm 6" Ø 150mm Figure 1: Top view 20 7/8" 530mm 20 5/8" 525mm 9 3/4" 248mm 15 3/4" 400mm 24 1/4" 616mm 8 3/4" 222mm 20 3/4" 528mm Figure 2: Front view Figure 3: Side view...
  • Page 11 8" 202mm 17 1/4" 438mm 21" 533mm Figure 4: Door opening Figure 5: Front view - Combustion chamber Figure 6: Side view - Combustion chamber Installation and Operation Manual - Matrix Page 11...

  • Page 12: Epa Certification Loading

    2.4 EPA Certification Loading For EPA Certification testing, wood logs were 16 ± 1 inches long and the specie used was hard maple. 2.4.1 Air Control The air control is located underneath the ash shelf. To open the air control, pull the air control handle completely (High).

  • Page 13: Materials

    Materials The body of this stove, which is most of its weight, is carbon steel. Should it ever become necessary many years in the future, almost the entire stove can be recycled into new products, thus eliminating the need to mine new materials. The paint coating on the stove is very thin.

  • Page 14: Emissions And Efficiency

    The success of zone heating will depend on several factors, including the correct sizing and location of the stove, the size, layout and age of your home and your climate zone. Three-season vacation homes can usually be heated with smaller stoves than houses that are heated all winter. Emissions and Efficiency The low smoke emissions produced by the special features inside this stove firebox mean that the household will release up to 90% less smoke into the outside environment than if an older...

  • Page 15: Log Length

    Softer woods make good fuel for mild weather in spring and fall because they light quickly and produce less heat. Softwoods are not as dense as hardwoods so a given volume of wood contains less energy. Using softwoods avoids overheating the house, which can be a common problem with wood heating in moderate weather.

  • Page 16: Drying Time

    Drying Time Firewood that is not dry enough to burn is the cause of most complaints about wood burning appliances. Continually burning green or unseasoned wood produces more creosote and involves lack of heat and dirty glass door. Firewood with a moisture content between 15% and 20% will allow the stove to produce its highest possible efficiency.

  • Page 17: Stove Operation

    4. Stove Operation This wood heater has a manufacturer-set minimum low burn rate that must not be altered. It is against federal regulations to alter this setting or otherwise operate this wood heater in a manner inconsistent with operating instructions in this manual. Before using the stove, the following steps should be completed : •...

  • Page 18: Blower Operation

    Blower Operation A blower is already installed on this stove The blower is installed on the back of the stove to increase the airflow through the heat exchanger and improve hot air circulation in the room. When used regularly, the blower can provide a small increase in efficiency, up to 2%.

  • Page 19: Lighting Fires

    Lighting Fires Each person heating with wood develops its own favorite way to light fires. Regardless of the method chosen, the goal should be to have a hot fire burning, quickly. A fire that ignites fast produces less smoke and deposits less creosote in the chimney. Never use gasoline, gasoline-type lantern fuel (naphtha), fuel oil, motor oil, kerosene, charcoal lighter fluid, or similar liquids or aerosols to start or ‘freshen up’...

  • Page 20: Combustion Cycles

    5.2.4 Using Fire Starters Commercial fire starters can be used instead of newspaper. Some of these fire starters are made of sawdust and wax and others are made of special flammable chemicals. Always follow the instructions on the packaging before use. A gel starter can also be used, but only to light a fire, in a cold combustion chamber, without hot embers inside.

  • Page 21: Removing Ashes

    Raking the coals is useful for two reasons. First, it brings them near where most of the combustion air enters the firebox. This will ignite the new load quickly. Secondly, the charcoal will not be smothered by the new load of wood. When the embers are simply spread inside the combustion chamber, the new load smoulder for a long time before igniting.

  • Page 22: Fire Types

    If the flames diminish to the point of disappearing, the air intake has been reduced too early in the combustion cycle or the wood used is too wet. If the wood is dry and the air control is used properly, the flames should decrease, but remain bright and stable. On the other hand, too much air can make the fire uncontrollable, creating very high temperatures in the unit as well as in the chimney and seriously damaging them.
  • Page 23 The burning time expected from this stove, including both phases, will vary depending on a number of things, such as: − firebox size, − the size of the space to be heated, − the amount of wood loaded, − the climate zone where the house is, and −...

  • Page 24: Maintenance

    6. Maintenance This heater will give many years of reliable service if used and maintained properly. Internal components of the firebox such as firebricks or refractory panels, baffle and air tubes will wear over time. Defective parts should always be replaced with original parts. To avoid premature deterioration, follow the lighting and reloading procedures in section «5.

  • Page 25: Door

    6.3.2 Replacement The glass used is a ceramic glass, 5/32" (4 mm) thick, 19⅝" x 11⅞" (499 mm x 302 mm), tested to reach temperatures up to 1400º F. If the glass breaks, it must be replaced with one having the same specification.
  • Page 26 6.4.1 Adjustment To facilitate access to the door lock mechanism, the decorative panels on the left side of the appliance should be removed (see «Appendix 1: Side Panels Installation»). Otherwise, the bolts are accessible with an open wrench 3/8". Unscrew the top and bottom bolts (A) to adjust the depth of the lock, the tension on the door and on the gasket.

  • Page 27: Exhaust System

    Exhaust System Wood smoke can condense inside the chimney, forming a inflammable deposit called creosote. If creosote builds up in the system, it can ignite when a hot fire is burned in the stove. A very hot fire can progress to the top of the chimney. Severe chimney fires can damage even the best chimneys.

  • Page 28: Part B - Installation

    6.6.2 Chimney Fire Regular chimney maintenance and inspection can prevent chimney fires. If you have a chimney fire, follow these steps: Close the stove door and the air intake control; Alert the occupants of the house of the possible danger; If you require assistance, alert the fire department;...

  • Page 29: Regulations Covering Stove Installation

    Regulations Covering Stove Installation When installed and operated as described in these instructions, this wood stove is suitable for use as a freestanding heater in residential installations. In Canada, the CSA B365 Installation Code for Solid Fuel Burning Appliances and Equipment and the CSA C22.1 Canadian National Electrical Code are to be followed in the absence of local code requirements.
  • Page 30 48" 36" 122 cm 92 cm Figure 10: Clearances - Top Figure 11: Clearances - Corner 84" (L) 213 cm Figure 12: Clearances - Side Page 30 Installation and Operation Manual - Matrix...
  • Page 31 APPLIANCE CLEARANCES WITH SINGLE APPLIANCE CLEARANCES WITH DOUBLE WALL PIPE CONNECTOR WALL PIPE CONNECTOR Canada Canada 14 ½" (368 mm) 11" (279 mm) 6" (152 mm) 6" (152 mm) 17" (432 mm) 16" (406 mm) 17" (432 mm) 16" (406 mm) 10"...
  • Page 32 If the above clearances are met, then the distances measured from the flue outlet will be: DISTANCES FROM PIPE CONNECTOR DISTANCES FROM PIPE CONNECTOR WITH WITH SINGLE WALL PIPE CONNECTOR DOUBLE WALL PIPE CONNECTOR Canada Canada 18" (457 mm) 14 ½" (368 mm) 12 ¼"...

  • Page 33: Floor Protector

    8.1.6 Clearances with heat shield AC02710 in a mobile home MOBILE HOME CLEARANCES WITH DOUBLE DISTANCES FROM PIPE CONNECTOR WITH WALL PIPE CONNECTOR DOUBLE WALL PIPE CONNECTOR Canada Canada 3" (76 mm) 3" (76 mm) 6 ¼" (159 mm) 6 ¼" (159 mm) 6"...

  • Page 34: Reducing Wall And Ceiling Clearances Safely

    Reducing Wall and Ceiling Clearances Safely It is often desirable to reduce the minimum installation clearances by placing the stove closer to walls so the installation takes up less floor space. You can safely reduce the minimum clearances by permanently installing a shield between the stove and combustible material. The rules for safe shields can be complicated, so read them carefully and follow them exactly.
  • Page 35 8.3.1 Shield Construction Rules − Adhesives used in shield construction must not ignite or lose adhesive qualities at temperatures likely to be encountered. − Mounting hardware which extends from the shield surface into combustibles may be used only at the edges of the shield. −...

  • Page 36: The Venting System

    9. The Venting System General The venting system, made of the chimney and the connecting pipe between the stove and the chimney, acts as the engine that drives the wood heating system. Even the best stove will not function safely and efficiently if it is not connected to a suitable chimney. The heat in the flue gases that pass from the stove and chimney connector into the chimney is not waste heat.
  • Page 37 9.2.2 Factory-Built Chimneys for Mobile Home For use in a mobile home, this stove is to be connected to a 6" (150 mm) in diameter double wall factory built chimney conforming CAN/UCL-S629, Standards 650°C Factory-built chimney. The total length of the flue system should be at least 12' (3,6 m) including elbows, from the top of the stove to the rain cap.

  • Page 38: Minimum Chimney Height

    Minimum Chimney Height The top of the chimney should be tall enough to be above the air turbulence caused when wind blows against the house and its roof. The chimney must extend at least 3 ft. (1 m) above the highest point of contact with the roof, and at least 2 ft.

  • Page 39: Supply Of Combustion Air

    When it is cold outside, the warm air in the house is buoyant so it tends to rise. This tendency of warm air to rise creates a slight pressure difference in the house. Called ‘stack effect’, it produces a slightly negative pressure low in the house (relative to outside) and a slightly positive pressure zone high in the house.

  • Page 40: Chimney Connector

    9.5.2 Mobile Home This stove is certified and approved to be installed in a mobile home. It must therefore have a supply of combustion air from outdoors. The air intake must not draw air from the attic, from the basement, from a garage or any enclosed space. Air must be drawn from a ventilated crawl space under the floor or directly from outside.
  • Page 41 9.6.2 Installation of Single Wall Chimney Connector The chimney connector assembly has been called «the weak link» in the safety of wood heating systems because failure to install the connector properly can result in house fires. The rules below are based on those found in the CSA B365 installation code. Please carefully follow these installation instruction rules, or those enforced by the local code.

  • Page 42: Appendix 1: Side Panels Installation

    APPENDIx 1: SIDE PANELS INSTALLATION Push the top of the stove (A) back to release it from its anchors. Use a rubber mallet if necessary. Remove the top of the stove. Slightly unscrew, without removing, the screws (B) holding the panel / stone brackets on each side, at the front and back of the unit.
  • Page 43 Tighten all the screws (C) previously unscrewed to hold the decorative assemblies. Reinstall stove top (See Step 1) and install top panels (See Appendix 2). Installation and Operation Manual - Matrix Page 43...

  • Page 44: Appendix 2: Top Panels Installation

    APPENDIx 2: TOP PANELS INSTALLATION Steel Panel Cut the gasket (A) to the correct lenght and stick it on the stove, as shown below. Lay the steel panel down on the stove. Soap Stone Panels Lay the soap stones down on the stove. Page 44 Installation and Operation Manual - Matrix...

  • Page 45: Appendix 3: Log Retainers Installation

    APPENDIx 3: LOG RETAINERS INSTALLATION Installation and Operation Manual - Matrix Page 45...

  • Page 46: Appendix 4: Optional Fresh Air Intake Installation

    APPENDIx 4: OPTIONAL FRESH AIR INTAKE INSTALLATION This stove can be connected to a fresh air intake. To do this, a flexible insulated pipe (B) of the HVAC type (must comply with ULC S110 or UL 181, class 0 or class 1) must be connected to the rear of the appliance with two collars (A), sold separately.

  • Page 47: Appendix 5: Optional Fire Screen Installation

    APPENDIx 5: OPTIONAL FIRE SCREEN INSTALLATION Open the door. Hold the fire screen by the two handles and bring it close to the door opening. Lean the upper part of the fire screen against the top door opening making sure to stove the top fire screen brackets behind the primary air deflector.

  • Page 48: Appendix 6: Blower And Optional Thermodisc Installation

    APPENDIx 6: BLOWER AND OPTIONAL THERMODISC INSTALLATION A thermodisc is included with this wood stove. It allows the blower to operate only when the stove is hot enough. See the instructions provided with the thermodisc for more details. Screw the thermodisc (A) on the back of the stove with the screws (C) provided. Ensure that the thermodisc’s power cord is not in contact with any surface of the stove to prevent electrical shock or fire damage.

  • Page 49: Appendix 7: Air Tubes And Baffle Installation

    APPENDIx 7: AIR TUBES AND BAFFLE INSTALLATION Starting with the rear tube, lean and stove the right end of the secondary air tube into the rear right channel hole. Then lift and stove the left end of the tube into the rear left channel. Align the notch in the left end of the tube with the key of the left air channel hole.
  • Page 50 Note that secondary air tubes (B) can be replaced without removing the baffle board (A) and that all tubes are identical. Page 50 Installation and Operation Manual - Matrix...

  • Page 51: Appendix 8: Exploded Diagram And Parts List

    APPENDIx 8: ExPLODED DIAGRAM AND PARTS LIST DETAIL E DETAIL C DETAIL D DETAIL B DETAIL A Installation and Operation Manual - Matrix Page 51...
  • Page 52 SE24245-01 CAST IRON DOOR WITH GASKET AND HANDLE AC06500 SILICONE AND 5/8" X 8' BLACK DOOR GASKET KIT 30450 OSBURN DOOR LOGO 30124 SCREW #8 - 32 X 5/16'' TRUSS QUADREX ZINC SE24252 RIGHT CAST IRON FRONT BASE FINISH PL65667...
  • Page 53 Item Description SE65659 LEFT DECORATIVE PANEL ATTACHMENT FRAME 99999 BUILD TO ORDER OA10704 STEEL PANEL TOP OA10703 SOAP STONE PANEL TOP SE65647 TOP ASSEMBLY 30025 1/4-20 X 1/2" PAN-HEAD QUADREX BLACK SCREW SE24251 CAST IRON DECORATIVE TOP FACING 44084 RHEOSTAT WITHOUT NUT AND FLAT WASHER 44203 RHEOSTAT WASHER 44202...

  • Page 54: Osburn Limited Lifetime Warranty

    Labour cost and repair work to the account of the manufacturer are based on a predetermined rate schedule and must not exceed the wholesale price of the replacement part. Shall your unit or a components be defective, contact immediately your OSBURN dealer. To accelerate processing of your warranty claim, make sure to have on hand the following information when calling: •...
  • Page 56 Resale is strictly prohibited. The manufacturer may update St-Augustin-de-Desmaures (Québec) Canada this document from time to time and cannot be responsible G3A 2H3 for problems, injuries, or damages arising out of the use 418-908-8002 of information contained in any document obtained from www.osburn-mfg.com/en unauthorized sources. tech@sbi-international.com...
