- Page 1 Operation Manual IBZA Series Compact Multipurpose Loudspeaker IBZA10 Version 2.5 Keep these important operating instructions. Check www.tecnare.com for updates. Release 2017...
- Page 3 EXEL ACOUSTICS SL CL Encinar, 282 – Pol. Ind. Monte Boyal 45950 Casarrubios del Monte (Toledo) Spain Phone: (+34) 918 170 110 Fax: IBZA Series | rev. e-mail: support@tecnare.com www.tecnare.com...
-
Page 4: Important Safe Instructions
Use the rigging accessories described in the rigging manual a follow the associated procedures. CAUTION: Rigging should only be done by experience professionals. This speaker enclosure is capable of creating a strong magnetic field. Please use IBZA Series | rev. -
Page 5: Declaración De Conformidad
(1) Directiva de Baja Tensión - 2006/95/CE (2) Directiva de Compatibilidad Electromagnética - 2004/108/CE (3) Directiva RoHS - 2011/65/UE (4) Directiva RAEE - 2012/19/UE (1) Low Voltage Directive 2006/95/CE (2) EMC 2004/108/CE (3) RoHS Directive 2011/65/UE (4) WEEE Directive 2012/19/UE IBZA Series | rev. -
Page 6: Table Of Contents
Table of Contents IMPORTANT SAFE INSTRUCTIONS..................3 DECLARACIÓN DE CONFORMIDAD ..................4 Introduction ........................6 Welcome to Tecnare ....................6 IBZA Series ......................7 The IBZA10 Compact Loudspeaker ................8 Loudspeaker Configuration..................11 Connections ......................9 Processing and Amplification .................. 10 Configurable Asymmetrical Horn ................ -
Page 7: Introduction
Updates and supplementary information are available on the Tecnare website: http://www.tecnare.com Tecnare Technical Support is available at: • (T): +34 918 170 110 - +34 918 171 001 • (e-mail): support@tecnare.com ® Thank you again for placing your confidence in Tecnare products. IBZA Series | rev. -
Page 8: Ibza Series
IBZA Series constitutes a broad range of point source, full range loudspeakers that providing high SPL, different directivities patterns and a good sonic performance off-axis. The IBZA Series is suited to various sound reinforcement applications as a main or complementary system. -

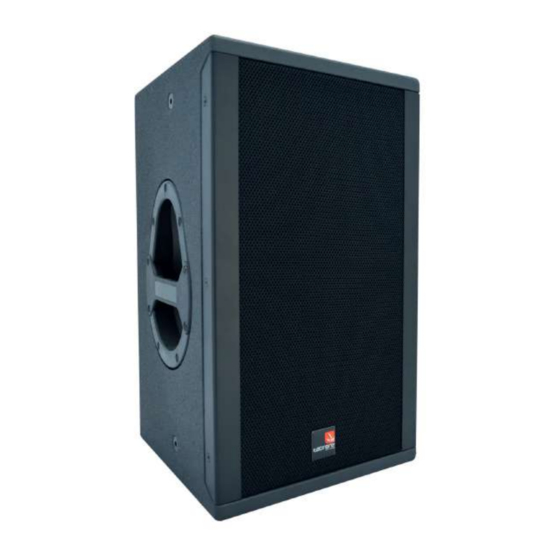

Page 9: The Ibza10 Compact Loudspeaker
Available series in a grey colour or white custom colour, the IBZA10 can be easily integrated into any building style for ultimate discretion, satisfying the most demanding architectural needs. Rigging options include wall mount, ceiling-mount and pole-mount in various orientations for integration into any possible situation. IBZA Series | rev. -
Page 10: Connections
The IBZA10 uses the pin assignment 1+/1+. Using one as the input, the second connector allows for direct connection to a second cabinet in parallel. Internal pinout for IBZA10 enclosures ® IN speakON point Connection LF + LF - NC IBZA Series | rev. -
Page 11: Processing And Amplification
Excursion displacement protection The T10-44/T6-44 and T-48 Series amplifier is the ideal companions for maximum performance of the IBZA Series loudspeakers. This amplifier controller with DSP offer a complete both preset and protection solution for any application. IBZA Series | rev. -
Page 12: 1.3 Loudspeaker Configuration
In this configuration the system operates over the nominal frequency range of the enclosure. IBZA10 enclosure is driven by the PA4.450, PA900 or PA2100 amplifier with the DP Series Processor or T-44/T-48 Series amplifier controller both with factory preset. Frequency Range (+/- 6dB) 45Hz- 18KHz IBZA Series | rev. IBZA10 Standalone mode... -
Page 13: Point Source With Low-Frequency Element
If your IBZA10 loudspeakers and subwoofers are separated by a greater distance - or delay must be used between them - a measurement system such as SMAART should be used to determine the correct delay and polarity. Frequency Range (+/- 6dB) 38- 18KHz Recommended ratio 1xSW-115: 4xIBZA10 IBZA10 + SW-115 IBZA Series | rev. -
Page 14: Rotating The Horn
6. Rotate the horn carefully on the desired position and place the horn and driver back into the cabinet. It will fit comfortably snug. 7. Replace the four (4) horn flange screws. 8. Carefully replace the grille cover and the two (2) metal reinforcement profiles with its six (6) screws. IBZA Series | rev. -
Page 15: Recommended Speaker Cables
(Zs). In this case our source impedance is (Rcable + Ramplifier). Damping Factor = Z ® The table below indicates the cable valour recommended by Tecnare Recommended maximum length 8 Ω 4 Ω 2 Ω cable cross-section mm² IBZA Series | rev. -
Page 16: 2.4 Amplifier Configuration
400W AE S 400W AE S 8 OH M 8 OH M 8 OH M 8 OH M 1 50 10 1/00 1 1 50 10 1/00 1 1 50 10 1/00 1 1 50 10 1/00 1 IBZA Series | rev. -
Page 17: Connection To Pa900/Pa2100
8O H M 1 5 0 1 0 1 /00 1 1 5 0 1 0 1 /00 1 1 5 0 1 0 1 /00 1 1 5 0 1 0 1 /00 1 T-44 Series Amplifier IBZA Series | rev. -
Page 18: 3.2 Integrating Ibza10 Using Subwoofers
SMAART audio analyzer. NOTE: If the subwoofer’s amplifier/DSP Limit LED begins to light before reaching the required SPL, consider adding more subwoofers to meet the SPL requirements without exposing the drivers to excessive heat and excursion. IBZA Series | rev. -
Page 19: 4.1 Technical Specifications
Dimensions (HxWxD) 500mm x 302mm x 320mm (19.68” x 11.89” x 12.6”) Weight 15 Kg. (33.6 lbs) Custom finish White code available on request Without charge. RAL code on special order. IBZA Series | rev. - Page 20 Operation Manual IBZA10 Dimensions IBZA Series | rev.
- Page 21 Operation Manual Reinventing The Rules ©2017 Tecnare Sound Systems. All rights reserved. IBZA10 Operation manual The contents of this manual are furnished for informational purposes only, are subject to change without notice, and should not be construed as a commitment by Exel Acoustics SL. Exel Acoustics assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual.
- Page 22 EXEL ACOUSTICS SL CL Encinar, 282 - Pol. Ind. Monte Boyal 45950 Casarrubios del Monte (To) Spain (e) support@tecnare.com www.tecnare.com - www.facebok.com/tecnare (T): +34 918 170 110 - +34 918 171 001 (F): +34 918 183 053 rev.:2.50 2018...
