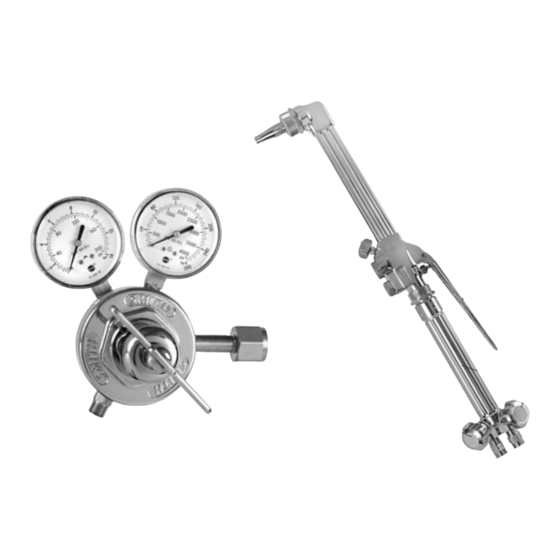

  • Page 1 OM-262 659C 2015−01 Processes Oxy-Fuel Welding Cutting Protect yourself others from injury — read, follow, and save these important safety precautions and operating instructions. Warranty Information Inside SAFETY MANUAL File: Accessory Form 4105 Rev 2015-01...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SECTION 1 − SAFETY PRECAUTIONS -READ BEFORE USING ... SECTION 2 − INTRODUCTION ........SECTION 3 −...

  • Page 3: Section 1 − Safety Precautions -Read Before Using

    SECTION 1 − SAFETY PRECAUTIONS - READ BEFORE USING OXY FUEL 2013-09 Protect yourself and others from injury — read, follow, and save these important safety precautions and operating in- structions. 1-1. Symbol Usage DANGER! − Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
  • Page 4 READ INSTRUCTIONS. Read and follow all labels and the Owner’s Manual carefully be- fore installing, operating, or servicing equipment. Read the safety information at the beginning of the manual and in each section. Use only genuine replacement parts from the manufacturer. Perform maintenance and service according to the Owner’s Manuals, industry standards, and national, state, and local codes.
  • Page 5 BUILDUP OF GAS can injure or kill. Shut off compressed gas supply when not in use. Always ventilate confined spaces or use approved air-supplied respirator. LIGHT RAYS can burn eyes and skin. Light rays from the welding and cutting process produce intense visible and invisible (ultraviolet and infrared) rays that can burn eyes and skin.
  • Page 6 A flashback arrestor can be installed on the torch handle instead of a check valve. Miller flashback arrestors have a reverse flow check valve and prevent the propagation of a flame up- stream.
  • Page 7 Wear body protection made from durable, flame−resistant material (leather, heavy cotton, wool). Body protection includes oil-free clothing such as leather gloves, heavy shirt, cuffless trousers, high shoes, and a cap. Do not use fuel gases to clean clothes or work area. Remove any combustibles, such as a butane lighter or matches, from your person before doing any welding or cutting.
  • Page 8 1-3. California Proposition 65 Warnings Welding or cutting equipment produces fumes or gases which contain chemicals known to the State of California to cause birth defects and, in some cases, cancer. (California Health & Safety Code Section 25249.5 et seq.) This product contains chemicals, including lead, known to the state of California to cause cancer, birth defects, or other reproductive harm.

  • Page 9: Section 2 − Introduction

    SECTION 2 − INTRODUCTION Inspect all equipment before use. Do not use damaged, defect- ive, or improperly adjusted welding and cutting equipment. Make sure levers and valves work properly, threads on equip- ment are clean (no grease or oil) and not deformed, gauges are intact and easy to read, regulator is clean and free of oil or dirt, and fittings are properly sized for the cylinder.

  • Page 10: Section 5 − Equipment Set Up

    Oxygen: High purity oxygen accelerates the rate of combustion, in- creases heat output, and lowers the combustible point at which various materials will burn. Fuel: The fuel for combustion may be the regulator itself if enough heat is produced to reach the kindling temperature of the regulator’s compo- nents.

  • Page 11: Installing Hoses On Regulators

    used for oxy-fuel applications. One type is for use on cylinders and the other type is used for connection to a gas piping system, or station regu- ° ° lator. The service temperature range for these regulators is 0 F to 140 °...

  • Page 12: Installing Flashback Arrestors

    Ideally, these units should be mounted on the welding handles. If Miller add-on flashback arrestors are used, additional check valves are not necessary. 5-6. Combination Torch Components A combination torch consists of a welding handle and cutting attach- ment.

  • Page 13: Installing Straight (Hand) Cutting Torch

    5-9. Installing Straight (Hand) Cutting Torch Inspect equipment before use. Do not use if grease or oil is present on equipment or if equipment is damaged. Have equip- ment cleaned/repaired by a qualified person. Cutting torches are used to cut ferrous metals using oxygen and a fuel gas.

  • Page 14: Section 6 − Welding Tip Adjustment/Lighting Instructions

    Do not stand in front of or behind the regulator when opening the cylinder valve. Never open a cylinder valve suddenly as this can damage a regulator or cause an oxygen regulator fire. Verify that both regulator adjusting handles are turned counter- clockwise to the off position.

  • Page 15: Lighting And Adjusting Acetylene/Oxygen Welding Tips

    6-2. Lighting And Adjusting Acetylene/Oxygen Welding Tips Follow the set-up instructions explained in Section 5 before lighting the torch. Purge the hoses (see Section 6-1). Open the torch fuel valve1/8 turn and ignite the acetylene using an approved friction spark lighter. Do not use matches or a cigarette lighter to ignite the gas.

  • Page 16: Section 7 − Multi-Flame Heating Tip Adjustment/Lighting

    SECTION 7 − MULTI-FLAME HEATING TIP ADJUSTMENT AND LIGHTING INSTRUCTIONS Heating tips are set up and adjusted the same as welding tips. Follow the safety and operating instructions explained in Section 6. Be sure to force the gases through the heating tips to eliminate the possibility of gas starvation, which can result in overheat- ing the tip and the possibility of backfire, sustained backfire, or flashback.

  • Page 17: Adjusting The Acetylene Cutting Tip Flame (Cutting Assembly)

    8-2. Adjusting The Acetylene Cutting Tip Flame (Cutting Assembly) This procedure is for use with acetylene cutting tips. Make sure the sys- tem has been set-up and purged according to Section 8-1. Open the fuel valves on the torch handle 1/8 turn and light the fuel gas using a friction lighter.

  • Page 18: Section 9 − Straight (Hand) Cut Torch Adjust And Lighting

    Open the torch preheat oxygen valve 1/2 turn and allow the gas to flow out of the torch until both gauges indicate zero (0) pressure. Close the torch oxygen preheat valve. Close the oxygen valve on the torch handle and turn the oxygen regulator adjusting handle counterclockwise to the off position.

  • Page 19: Adjusting Fuel Gas Cutting Tip Flame (Other Than Acetylene)

    Slowly open the preheat oxygen valve; a long white flame will ap- pear. This is known as the acetylene feather. Continue to add oxy- gen and reduce the feather until it just disappears into the small, bright, inner cones at the end of the tip. This will produce what is known as a neutral flame.
  • Page 20 OM-262 659 Page 18...
  • Page 21 OM-262 659 Page 19...
  • Page 22 OM-262 659 Page 20...
  • Page 23 OM-262 659 Page 21...
  • Page 24 OM-262 659 Page 22...
  • Page 25 OM-262 659 Page 23...
  • Page 26 OM-262 659 Page 24...
  • Page 27 OM-262 659 Page 25...
  • Page 28 OM-262 659 Page 26...
  • Page 29 OM-262 659 Page 27...
  • Page 30 OM-262 659 Page 28...
  • Page 31 OM-262 659 Page 29...
  • Page 32 OM-262 659 Page 30...
  • Page 33 OM-262 659 Page 31...
  • Page 34 OM-262 659 Page 32...
  • Page 35 OM-262 659 Page 33...
  • Page 36 OM-262 659 Page 34...
  • Page 37 OM-262 659 Page 35...
  • Page 38 OM-262 659 Page 36...
  • Page 39 OM-262 659 Page 37...

  • Page 40: Section 10 − Sc900 Series Gas Axe − Hand Cuttng Torch

    SECTION 10 − SC900 SERIES GAS AXE − HAND CUTTNG TORCH 10-1. Reversing The Cutting Lever When reversing the high pressure seat valve assembly during this pro- cedure, remove the components shown below and reinstall them in op- posite sides of torch butt. O-Ring (A) Assembly (B) When removing Assembly (B) from the torch butt, o-ring (A)
  • Page 41 (d) Torches shall not be used in areas or locations wherein hazardous gases, vapors or dust may be present. (e) Torches shall not be used on containers formerly used for storage of flammable liquids or gases, unless such containers have been purged of all flammable vapors.
  • Page 42 or demolition work. A separate permit shall be required for such storage and use. §38-01 Issuance of Permits for the Storage and Use of Oxygen and Combustible Gases for any Torch Operations during Con- struction, Alteration or Demolition Work (a) Torches used in conjunction with oxygen and combustible gases shall be a type approved by the Fire Department, or type previously approved by the Board of Standards and Appeals.
  • Page 43 Any violation of this rule shall be subject to enforcement in accor- dance with the provisions of §§27-4020 and 27-4254 of the Admin- istrative Code. (m) City-Wide Permit shall not include the storage and use of oxygen and combustible gases during the course of construction, alteration or demolition work.
  • Page 44 Miller must be notified in writ- ing within thirty (30) days of such defect or failure, at which time Miller will pro- vide instructions on the warranty claim procedures to be followed. Miller shall honor warranty claims on warranted equipment listed below in the event of such a failure within the warranty time periods.
  • Page 45 Miller in appropriate cases, (3) the reasonable cost of repair or replacement at an authorized Miller service station; or (4) payment of or credit for the purchase price (less reasonable depreciation based upon ac- tual use) upon return of the goods at customer’s risk and expense. Miller’s option of repair or replacement will be F.O.B., Factory at Appleton, Wisconsin,...
  • Page 46 30 “37 Violations Safety Quiz” Brochures 30 Safety Meeting Guides (English, French, Spanish) 1 41 Minute Oxy-Fuel Safety Video 1 Set of 6 Miller Cartoon Safety Posters 1 Post-Safety Video Test and Answer Key (may be duplicated) 1 Gas Equipment Product Catalog To Order Safety Materials, Contact Customer Service.
