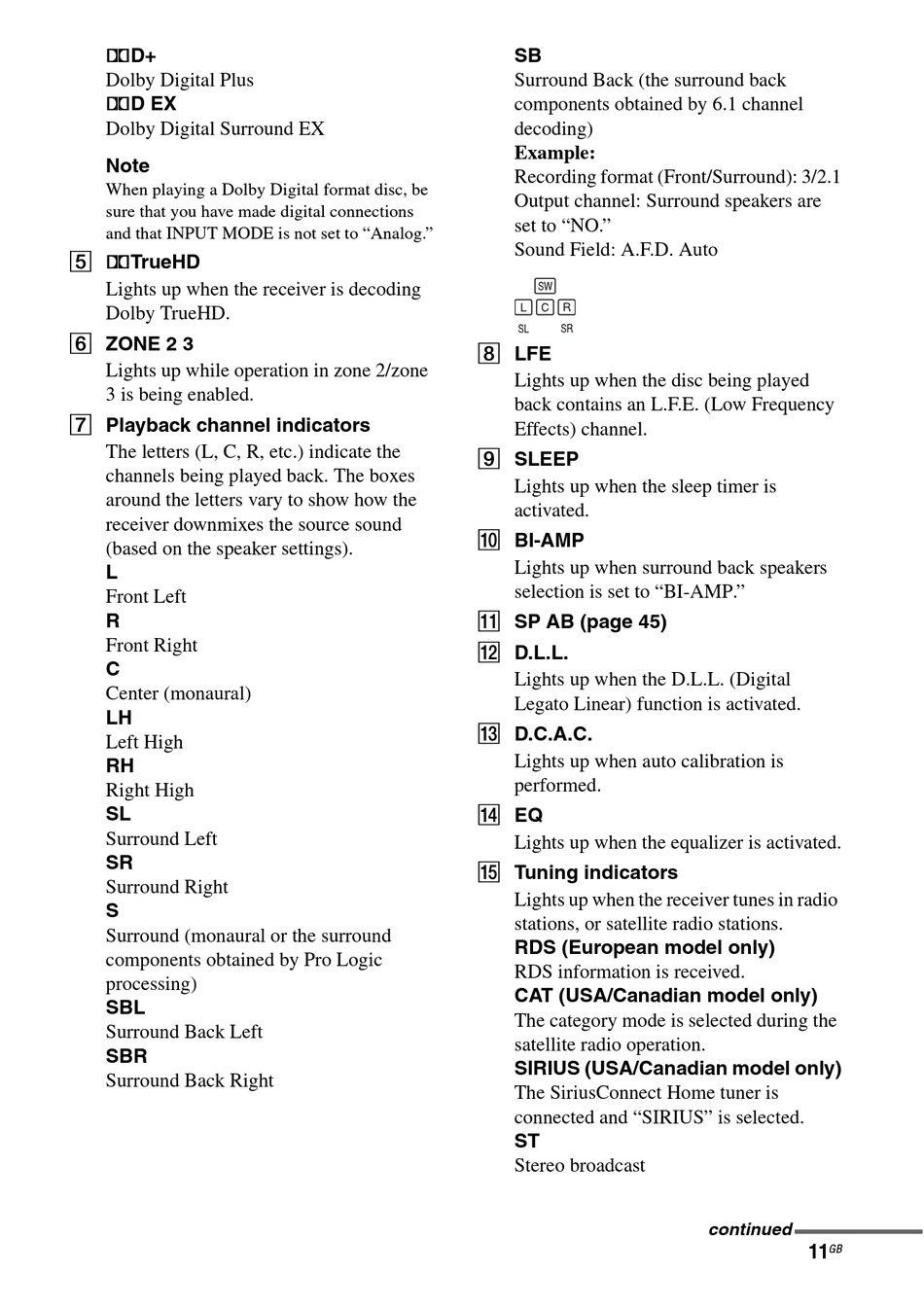

Dolby Digital Plus
Dolby Digital Surround EX
When playing a Dolby Digital format disc, be
sure that you have made digital connections
and that INPUT MODE is not set to "Analog."
Lights up when the receiver is decoding
F ZONE 2 3
Lights up while operation in zone 2/zone
3 is being enabled.
G Playback channel indicators
The letters (L, C, R, etc.) indicate the
channels being played back. The boxes
around the letters vary to show how the
receiver downmixes the source sound
(based on the speaker settings).
Surround (monaural or the surround
components obtained by Pro Logic
Surround Back Left
Surround Back Right
Surround Back (the surround back
components obtained by 6.1 channel
Recording format (Front/Surround): 3/2.1
Output channel: Surround speakers are
set to "NO."
Sound Field: A.F.D. Auto
Lights up when the disc being played
back contains an L.F.E. (Low Frequency
Lights up when the sleep timer is
Lights up when surround back speakers
selection is set to "BI-AMP."
K SP AB (page 45)
Lights up when the D.L.L. (Digital
Legato Linear) function is activated.
Lights up when auto calibration is
Lights up when the equalizer is activated.
O Tuning indicators
Lights up when the receiver tunes in radio
stations, or satellite radio stations.
RDS (European model only)
RDS information is received.
CAT (USA/Canadian model only)
The category mode is selected during the
satellite radio operation.
SIRIUS (USA/Canadian model only)
The SiriusConnect Home tuner is
connected and "SIRIUS" is selected.
