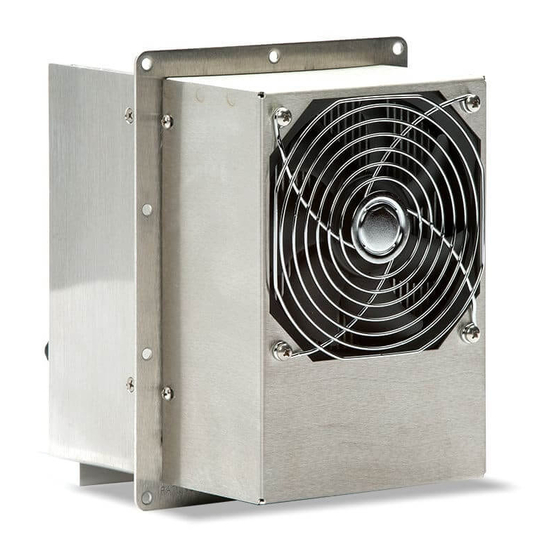

- Page 1 EIC SOLUTIONS, INC Air conditioner installation and operation manual FOR 200 Btu MODEL #’S AAC-120-4XT AAC-120-4XT-HC AAC-120-4XT-F AAC-120-4XT-HCF AAC-120-4XT-XXXXXX Cooling Solutions for Mission-Critical Electronics -800-497-4524 EIC SOLUTIONS, INC 215-443-5190...
-
Page 2: Table Of Contents
INSTALL A FLUSH MOUNT AIR CONDITIONER ........INSTALL THE DRAIN LINE ............... APPLY POWER ..................3. OPERATION THERMOSTAT SET POINTS AND HEATING COOLING UNITS ... MAINTENANCE ..................EIC SOLUTIONS INC. 700 VETERANS WAY, SUITE 200 WARMINSTER, PA 18974 PHONE 1-215-443-5190 or 1-800-497-4524 FAX 215-443-9564 EMAIL info@eicsolutions.com... -
Page 3: General Information
Your EIC Solutions Thermoelectric Air Conditioner operates on this same principle so there is no compressor and no expensive, ozone depleting CFC’s. -
Page 4: Installation
The other style is the flush mount design, in which all of the unit is outside of the enclosure. (Fig. 2.2) The last character in the flush mount model number will always be “F”, as in AAC-120-4XT-F and AAC-120-4XT-HCF. -800-497-4524 EIC SOLUTIONS, INC 215-443-5190... - Page 5 HOT SIDE OF AC (INSIDE OF (OUTSIDE OF ENCLOSURE) ENCLOSURE) COLD SIDE HEAT SINK FINS HOT SIDE HEAT DRAIN SINK FINS TUBE VERTICAL INSTALLATION OF AAC-120-4XT-F, 200 BTU FLUSH MOUNT UNIT WITH INTERGRAL DRIP PAN FIGURE 2.2 -800-497-4524 EIC SOLUTIONS, INC 215-443-5190...
-
Page 6: Preparing The Enclosure
3. Take one of the supplied mounting screws and, from the under side of the flange, push it up through the top right mounting hole, and through the hole in the gasket. The gasket hole is undersized and will hold the screw in place. Repeat this for the top left mounting hole. -800-497-4524 EIC SOLUTIONS, INC 215-443-5190... -
Page 7: Install A Flush Mount Air Conditioner
4. If you are installing Flush mount AC unit (Fig. 2.2) the drain line is already on the outside of the enclosure and should be routed so that any dripping condensate does not create a safety hazard. -800-497-4524 EIC SOLUTIONS, INC 215-443-5190... - Page 8 (not to scale) -800-497-4524 EIC SOLUTIONS, INC 215-443-5190...
- Page 9 (not to scale) -800-497-4524 EIC SOLUTIONS, INC 215-443-5190...
-
Page 10: Apply Power
The cold side fan always runs to circulate air within your enclosure thereby eliminating any “hot spots”. The hot side fan will only run when the air conditioner is cooling – they are “pumping” the heat from the inside of your enclosure to the outside air. -800-497-4524 EIC SOLUTIONS, INC 215-443-5190... -
Page 11: Operation
NEVER EXPOSE THE COLD SIDE OF THE AIR CONDITIONER (INSIDE THE ENCLOSURE) TO WATER. If you have any questions about any aspect of your EIC air conditioner, don’t hesitate to call us at our toll-free number listed below or at 215-443-5190. -800-497-4524 EIC SOLUTIONS, INC 215-443-5190...
