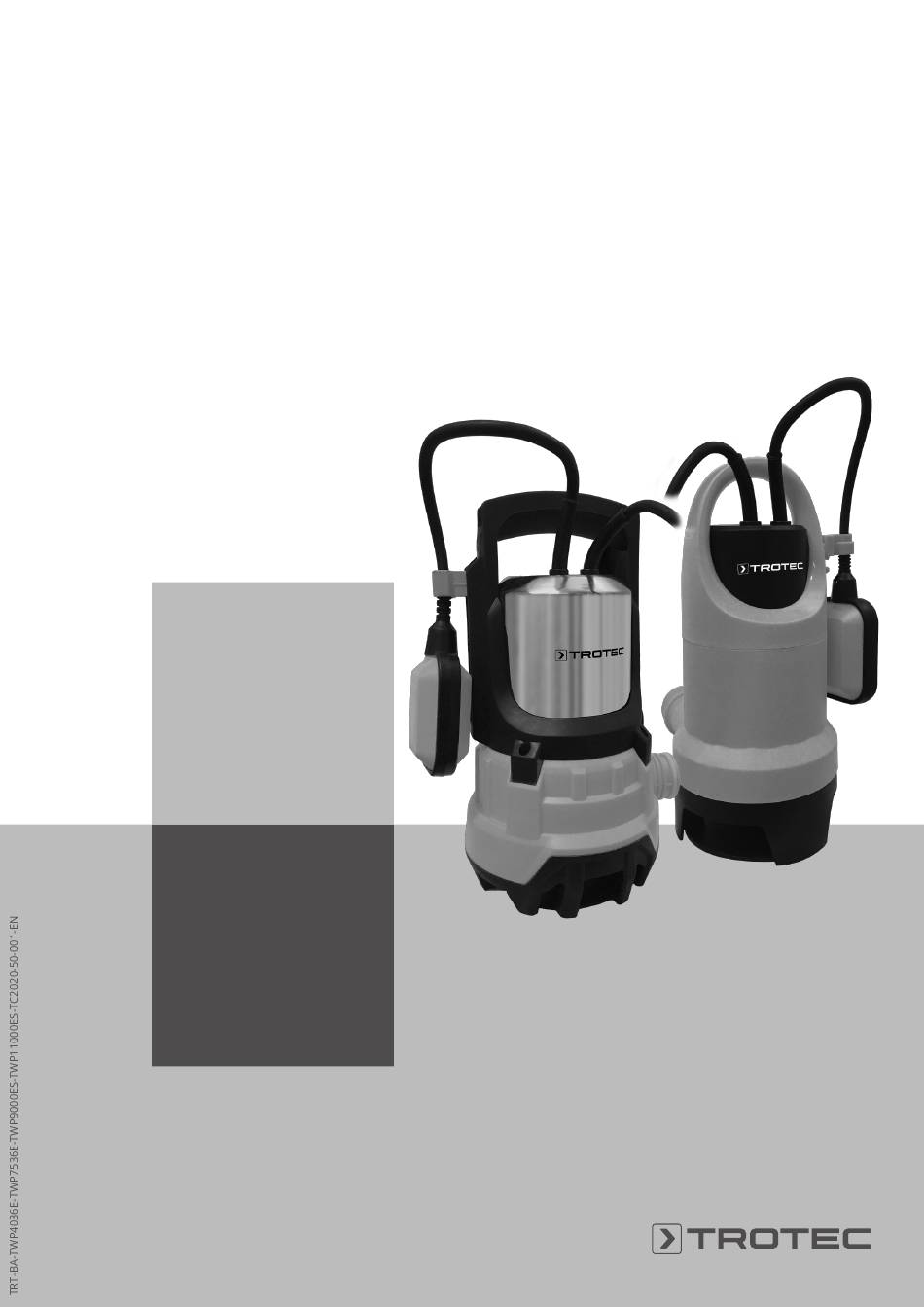

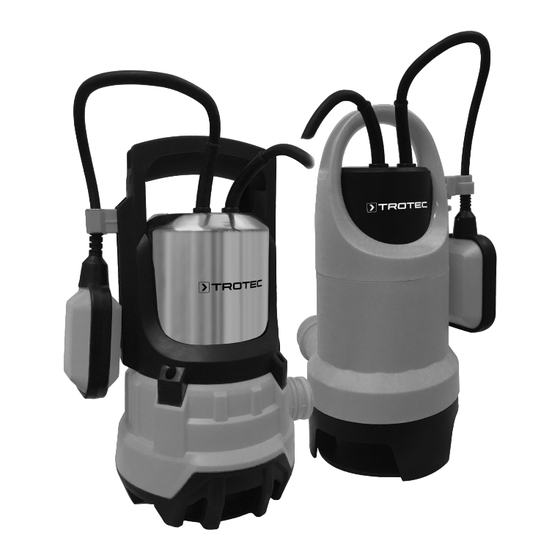

- Page 1 TWP 4036 E / TWP 7536 E / TWP 9000 ES / TWP 11000 ES OPERATING MANUAL SUBMERGED WASTE WATER PUMP...
-
Page 2: Table Of Contents
Save all warnings and instructions for future Information marked with this symbol indicates that the reference. operating manual must be observed. submerged waste water pump TWP 4036 E / TWP 7536 E / TWP 9000 ES / TWP 11000 ES... - Page 3 • Please bear in mind, that the device is not suitable for continuous operation (e.g. for watercourses in garden ponds). Check the device for proper functioning on a regular basis. submerged waste water pump TWP 4036 E / TWP 7536 E / TWP 9000 ES / TWP 11000 ES...
- Page 4 This symbol indicates that the device must no longer be water pumping system for building and property drainage operated if the power cable is damaged. for these purposes. submerged waste water pump TWP 4036 E / TWP 7536 E / TWP 9000 ES / TWP 11000 ES...
-
Page 5: Information About The Device
However, the depicted operating steps and explanations also apply to the devices TWP 9000 ES and TWP 11000 ES unless otherwise mentioned. submerged waste water pump TWP 4036 E / TWP 7536 E / TWP 9000 ES / TWP 11000 ES... - Page 6 Hose connection for a G1" / DN25 internal thread Hose connection for an inner diameter of 38 mm (with hose clamp) Hose connection for a G1½" / DN40 internal thread submerged waste water pump TWP 4036 E / TWP 7536 E / TWP 9000 ES / TWP 11000 ES...
-
Page 7: Transport And Storage
If required, you can cut the reducer (7) off at the desired diameter. At delivery the reducer (7) is already assembled onto the elbow (8). submerged waste water pump TWP 4036 E / TWP 7536 E / TWP 9000 ES / TWP 11000 ES... - Page 8 DN25) onto the reducer (7). Alternatively, you can also screw the pipe connection or hose connection with the internal thread G1½" / DN40 directly onto the elbow (8). submerged waste water pump TWP 4036 E / TWP 7536 E / TWP 9000 ES / TWP 11000 ES...
- Page 9 TWP 11000 ES models is also equipped with a height adjustment. In order to adjust the height, actuate the lateral lever and push the locking device to the desired height. submerged waste water pump TWP 4036 E / TWP 7536 E / TWP 9000 ES / TWP 11000 ES...
- Page 10 25 mm. 1. Fasten the supplied nylon cord to the transport handle (1) at the top of the device. submerged waste water pump TWP 4036 E / TWP 7536 E / TWP 9000 ES / TWP 11000 ES...
-
Page 11: Operation
2. If necessary, pull the device out by means of the nylon cord. 3. Insert the cable of the float switch (4) all the way through the float switch locking device (3). submerged waste water pump TWP 4036 E / TWP 7536 E / TWP 9000 ES / TWP 11000 ES... - Page 12 If the device switches off again after only a brief period of operation, the float switch might have come loose. Fix the float switch again as depicted. submerged waste water pump TWP 4036 E / TWP 7536 E / TWP 9000 ES / TWP 11000 ES...
-
Page 13: Errors And Faults
25 mm, which could clog up the device. • Check whether the used hose diameter is too small. submerged waste water pump TWP 4036 E / TWP 7536 E / TWP 9000 ES / TWP 11000 ES... -
Page 14: Maintenance
• If necessary, mount the cover panel to the pump foot. • In case of heavy soiling, also remove the cover plate from the pump foot. submerged waste water pump TWP 4036 E / TWP 7536 E / TWP 9000 ES / TWP 11000 ES... -
Page 15: Technical Annex
25 mm; 38 mm Threaded connection G1" / DN25 G1" / DN25 G1" / DN25 G1" / DN25 G1½" / DN40 G1½" / DN40 G1½" / DN40 G1½" / DN40 submerged waste water pump TWP 4036 E / TWP 7536 E / TWP 9000 ES / TWP 11000 ES... - Page 16 TWP 9000 ES TWP 4036 E TWP 11000 ES TWP 7536 E max. 35 °C max. 35 °C TWP 11000 ES TWP 7536 E submerged waste water pump TWP 4036 E / TWP 7536 E / TWP 9000 ES / TWP 11000 ES...
-
Page 17: Disposal
TWP 4036 E / TWP 7536 E / TWP 9000 ES / TWP 11000 ES... - Page 18 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
