Exploring the Canon
EOS Rebel T5i/700D
T
he Canon Rebel T5i/700D has many buttons and dials, and it's important that you
take the time to review each control and option at least once. You may not need
them all now, but as you become more familiar with your camera, it helps to know
what options are available. In this chapter, I cover each side of the camera to help you
understand the standard controls, as well as the viewfi nder, LCD screen, and display
options. I also review the camera exposure modes, where the tripod and connection
sockets are, and how to use the dioptric adjustment dial. Once you understand the
camera's controls, you can focus on taking photos.

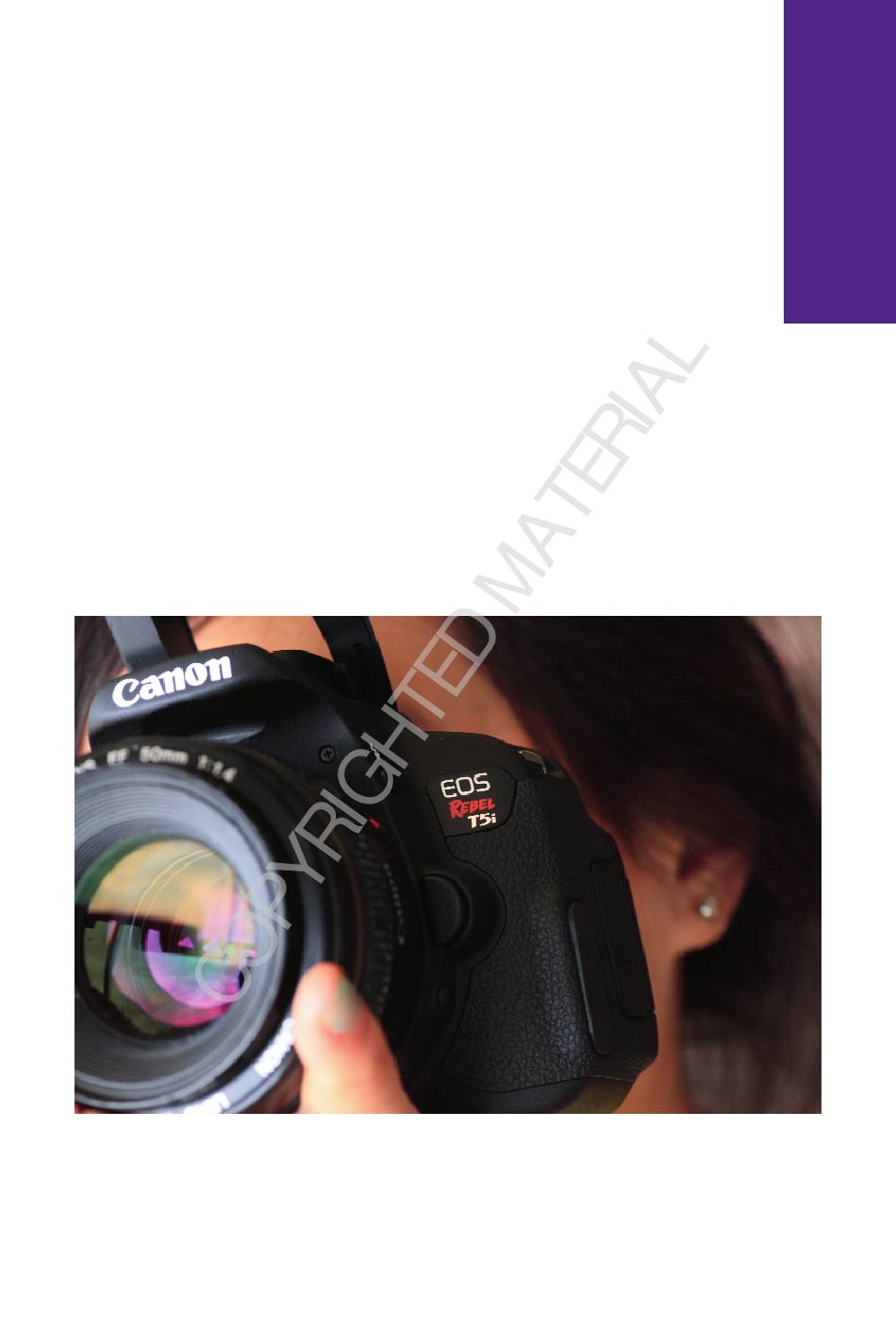

Make sure you understand the function of each of the buttons on your camera.
1
C HAP T E R
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Canon Rebel T5i/700D
Summary of Contents for Canon Rebel T5i/700D
- Page 1 Exploring the Canon EOS Rebel T5i/700D he Canon Rebel T5i/700D has many buttons and dials, and it’s important that you take the time to review each control and option at least once. You may not need them all now, but as you become more familiar with your camera, it helps to know what options are available.
- Page 2 ISO ( ) and shutter buttons. All of these play an integral role in creating photographs. The top of the Canon EOS Rebel T5i/700D. The following list explains what each switch and button does: ISO button ( ). The ISO setting represents the camera’s sensitivity to light.
- Page 3 Microphones. There are two microphones on top of the camera to record audio for videos. The microphone controls are found under Movie shooting menu 2 ( ). Hot shoe. The hot shoe holds an external fl ash, such as the Canon Speedlite ▶...
- Page 4 Canon EOS Rebel T5i/700D Digital Field Guide Table 1.1 The Exposure Modes Mode Description You set the shutter speed and aperture. Manual ( ) You set the aperture and the camera sets the shutter Aperture-priority AE ( speed for proper exposure.
- Page 5 Battery. Your camera uses an LP-E8 battery pack. It takes approximately 2 hours to fully charge. The bottom of the Canon EOS Rebel T5i/700D. NOTE A battery grip (BG-E8) is available for your Canon T5i/700D. This accessory holds two LP-E8 battery packs and allows for easier vertical shooting.
-
Page 6: The Front Of The Camera
Depth-of-Field Preview ( ) buttons. The front of the Canon EOS Rebel T5i/700D. The following buttons and features are found on the front of your camera: Flash. The built-in pop-up fl ash is a handy feature in low- and backlit situations. - Page 7 Remember to hold onto both the lens and the camera. To attach a Canon- dedicated lens, point the camera away from you. Rotate the lens until the red or white dots on both the camera and lens are aligned.
- Page 8 Canon EOS Rebel T5i/700D Digital Field Guide The back of the Canon EOS Rebel T5i/700D. The following buttons and options are available on the back of your camera: Menu button ( ). Pressing this button takes you to the menu screen. You ▶...
- Page 9 Chapter 1 Exploring the Canon EOS Rebel T5i/700D • The Playback menu ( ). This menu contains options for reviewing images and postproduction. • The Setup menu ( ). This menu is packed with camera operation func- tions. • My Menu ( ).
- Page 10 Canon EOS Rebel T5i/700D Digital Field Guide AE ( ), or Aperture-priority AE ( ) modes, press this button, and then use the Main dial ( ) to adjust the exposure compensation as many as 5 stops. Reduce/Exposure Lock ( )/Flash Exposure Lock ( )/Index button ( ▶...
- Page 11 Chapter 1 Exploring the Canon EOS Rebel T5i/700D Autofocus menu button ( ). In the Basic Zone modes, autofocus is set ▶ according to the mode and scene, and it cannot be adjusted. In Playback mode ) and when maneuvering through menus, this button acts as the right Cross key ( ) button.
- Page 12 Canon EOS Rebel T5i/700D Digital Field Guide White balance selection button ▶ ). This button lets you change color tones in your photographs when the camera is in a Creative Zone mode. Use it to adjust the color of the environment to appear more natural.
- Page 13 Chapter 1 Exploring the Canon EOS Rebel T5i/700D your computer, consider purchasing an Eye-Fi card. The settings for the Eye-Fi card are found under Setup menu 1 ( ). The memory card slot is located on the right side of the camera.
- Page 14 You must use a lens with a dedi- cated Canon lens mount. 1.10 The Canon T5i/700D 18-55mm kit lens has Image Stabilization and focus switches on the left. Here are a few common features and controls you fi nd on lenses: Focus mode.
-
Page 15: The Viewfi Nder Display
Chapter 1 Exploring the Canon EOS Rebel T5i/700D lens can be to an object to focus properly. Infi nity is used when you want to focus at a distance, such as when shooting a landscape. Zoom ring. If you are using a zoom lens, turning the zoom ring sets your desired ▶... - Page 16 Canon EOS Rebel T5i/700D Digital Field Guide The following are the indicators you see in the viewfi nder (the options displayed depend on the mode you are using): Focusing screen. This is the electronic screen that you see when you look ▶...
- Page 17 Auto Exposure Lock or Auto Exposure Bracketing is in use. The LCD Touchscreen and Live View Mode The LCD touchscreen on your Canon Rebel T5i/700D adds a fl exible dimension to your camera. It gives you a large, adjustable screen to use while shooting photos and video.
- Page 18 Canon EOS Rebel T5i/700D Digital Field Guide 1.12 Use your fi nger to swipe to the next image. The Live View shooting mode ( ) is a useful feature, particularly when you are shoot- ing video, because the touchscreen menus are found on the edges of the LCD screen.
- Page 19 Chapter 1 Exploring the Canon EOS Rebel T5i/700D numbers. If you use two fi ngers when you swipe, the camera jumps the number of images set in Playback menu 2 ( ). When you place two fi ngers in the mid- dle of the screen and spread them apart, you zoom in to the photograph.
