Dell UP2720QB Simplified Service Manual page 11

6
7
8

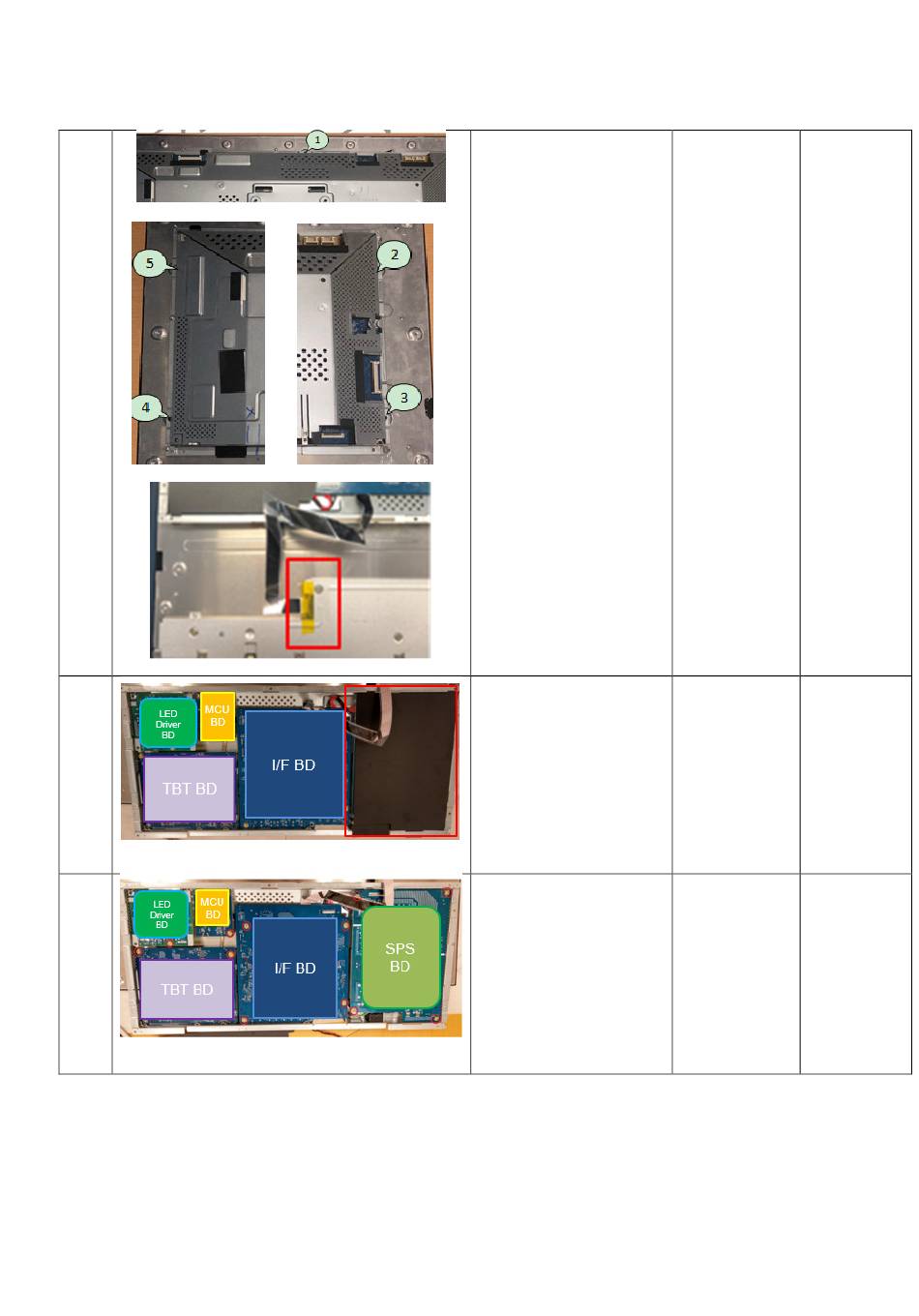

1. Unlock 5 screws to
disassemble Main
SHD from panel
2. Remove the tape
from "FFC EDP
cable" on panel
3. Unplug "FFC EDP
cable" from panel
1. Take off SPS BD
Mylar from SPS BD
1. Unlock 12 PCBA
screws
- 11 -
Philips-head
screwdriver
Torsion of
screw:
4.5±0.5
Philips-head
screwdriver
Torsion of
PCBA screw:
8.5±0.5Kg
