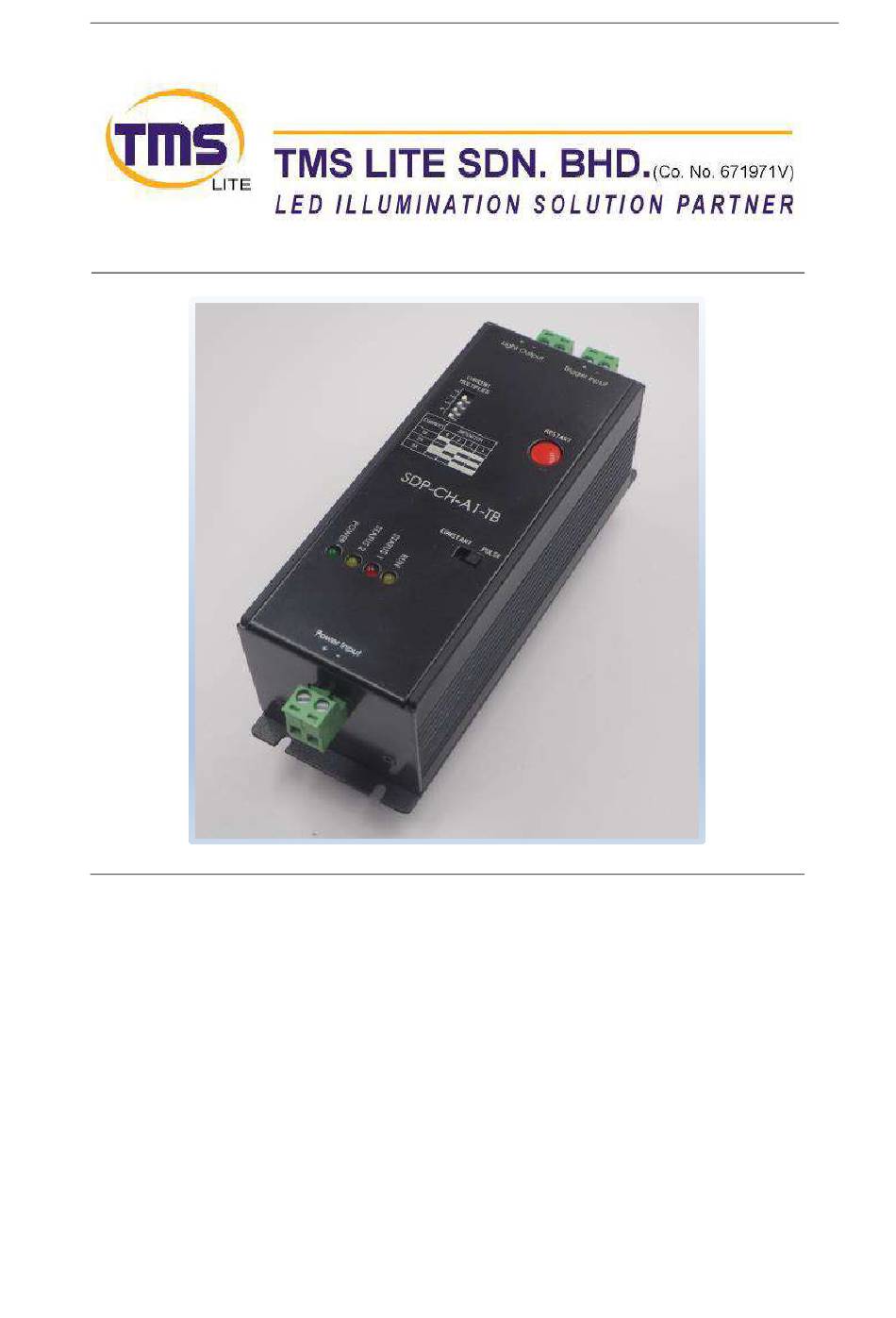

- Page 1 TMS Lite SDP-CH1-A1-TB LIGHTING CONTROLLER UNIT SDP-CH1-A1-TB Lighting Controller Unit (Continuous and Pulse Mode) USER MANUAL...
-
Page 2: Table Of Contents
Table of Contents ............................ 1 Hardware ..............................2 Packing List ............................2 General Description ..........................3 Specification of SDP-CH1-A1-TB ......................3 Panel Label Description ........................... 4 SDP-CH1-A1-TB ........................... 4 Connections ............................5 Power Input & Trigger Input Connector .................... 5 Light Output Connector ........................ -
Page 3: Hardware
SDP Series Controller Package • SDP-CH1-A1-TB • EXT-FL-M12F-3M-24V Cable x1 (optional) • EXT-FL-24V-3M Cable x1 (optional) • Adaptor 24V x1 (optional) • User Manual x1 (download from the link below) Link for user interface and user manual from TMS LITE website: http://tms-lite.com/product/sdp-series-3/... -
Page 4: General Description
General Description Introduction The SDP-CH1-A1-TB controller provides intensity control of LED lighting for machine vision applications. The SDP-CH1-A1-TB automatically detects the operating current of the LED light and can generate output pulses at as high as 6 times of the operating current.. -
Page 5: Panel Label Description

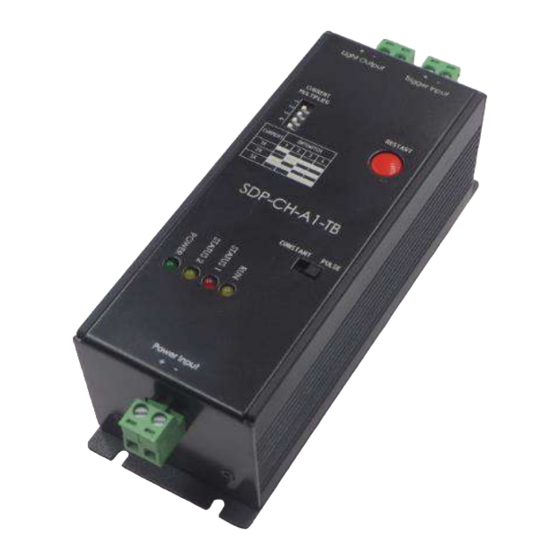

TMS Lite SDP-CH1-A1-TB LIGHTING CONTROLLER UNIT Panel Label Description SDP-CH1-A1-TB Power Input Operation Mode (Pulse Mode / Constant Mode) Switch Restart Button Current Multiplier Light Output Status Indicators NPN/PNP Signal 1x, 2x & 3x... -
Page 6: Connections
TMS Lite SDP-CH1-A1-TB LIGHTING CONTROLLER UNIT Connections Power Input & Trigger Input Connector 1 2 3 4 Description TRIG + TRIG - Light Output Connector Description LIGHT+ LIGHT-... -
Page 7: Sda-Ch1-A1-Tb Operation Mode
Operation Mode Switch in the front panel. (Fig - 1.0) Fig - 1.0 Auto Current Detection The SDP-CH1-A1-TB Controller detects the LED current automatically while power-up (Power Green LED Fig - 1.2). Users can use the Restart Button (Fig-1.1) to restart the detection process. -
Page 8: Continuous Mode
TMS Lite SDP-CH1-A1-TB LIGHTING CONTROLLER UNIT Continuous Mode Continuous mode offers continuous lighting intensity to fully ON (100%), the output voltage of the controller is 24V and the maximum output current is 2A. Pulse Mode In the pulse mode, the controller outputs a pulse to the LED when received a trigger signal. -
Page 9: Pulse Mode Current Multiplier
CURRENT PULSE 3x Limitations In order to protect the SDP-CH1-A1-TB and LED light from overloading, the maximum current, the duration and the duty cycle of the output pulses are limited. The maximum current of a pulse is 4A. The maximum pulse duration is 10ms. The maximum duty cycle is... -
Page 10: Input Signal
TMS Lite SDP-CH1-A1-TB LIGHTING CONTROLLER UNIT Input Signal Input signal is optional and used to turn on the lighting based frequency/duty cycle of input signal. The turn on time of lighting is adjustable and depending on the value of pulse width. -
Page 11: Accessories
TMS Lite SDP-CH1-A1-TB LIGHTING CONTROLLER UNIT Accessories Additional accessories that can be used with SDP-CH1-A1-TB controllers. • 24V power supply • Lighting cable 24V Power Supply MODEL SPECIFICATIONS • 24V-2.5A-UK (24V ADAPTOR WITH POWER CORD UK) • 24V-2.5A-US (24V ADAPTOR WITH POWER CORD US) •... -
Page 12: Cable Selection
TMS Lite SDP-CH1-A1-TB LIGHTING CONTROLLER UNIT Cable Selection MODEL POWER LENGTH EXT-24V-F- ** XX = Length MODEL POWER LENGTH EXT-FL-M12F- ** XX = Length... -
Page 13: Cable Information
TMS Lite SDP-CH1-A1-TB LIGHTING CONTROLLER UNIT Cable Information i) EXT-FL-24V-3M Extension Cable of 3 Meter with SM connector ii) EXT-FL-M12F-3M-24V Extension Cable of 3 Meter with M12F connector... -
Page 14: Power Cord Information
TMS Lite SDP-CH1-A1-TB LIGHTING CONTROLLER UNIT Power Cord Information The cable length is 1.8 Meter length of power cord. 240VAC Power Cord (UK) 220VAC Power Cord (EU) 110VAC Power Cord (US) - Page 15 Thank you for downloading this document from www.machine-vision-shop.com If you have any questions, you need help composing the right package for your application or do you want to order? Natascha Overhof Feel free to contact us via e-mail at sales@vision- consultancy.nl or visit our webshop.
