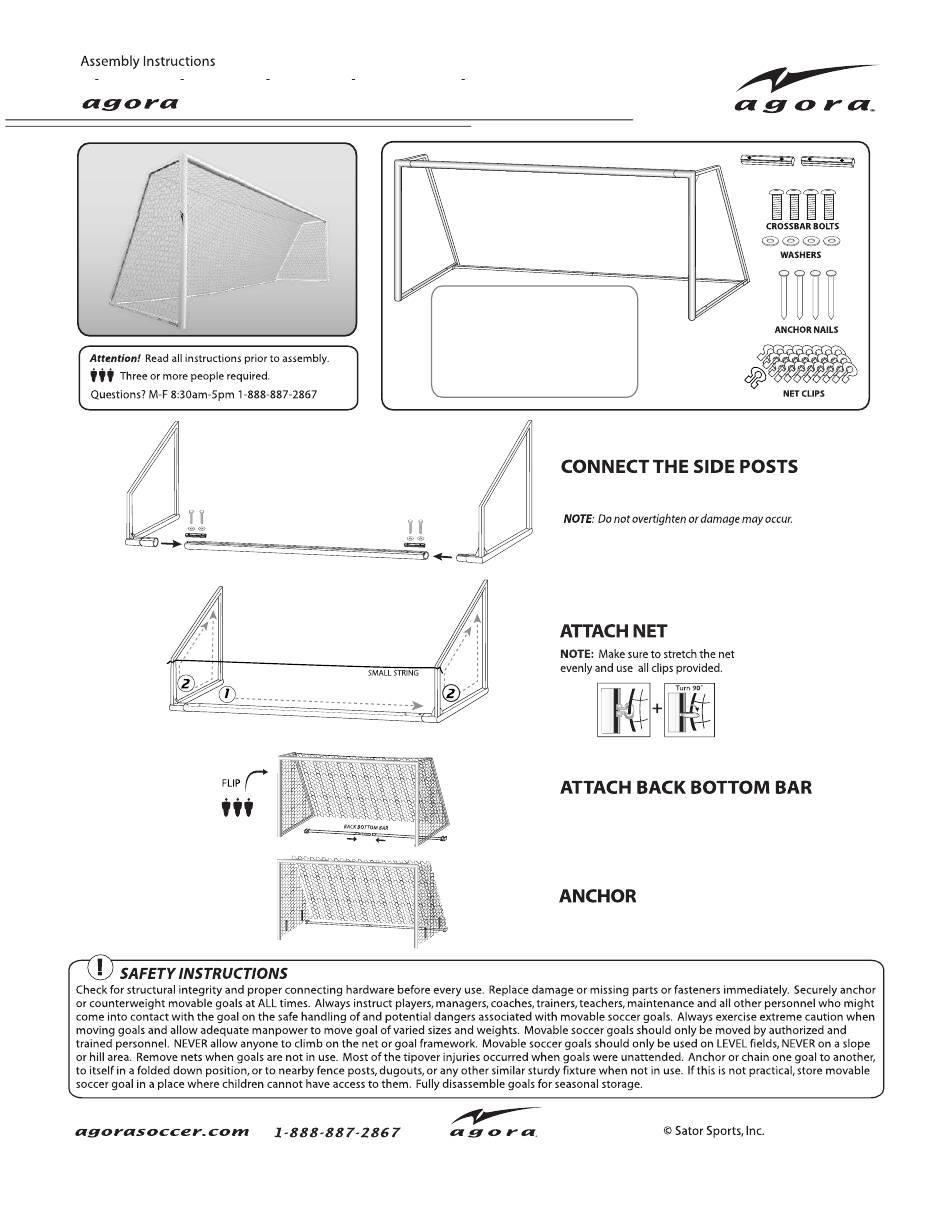

SA GCAKIT406, SA GCAKIT612, SA GCAKIT618, SA GCAKIT721, and SA GCAKIT824
CHANNEL CLUB GOALS
CROSSBAR
SIDE
POST
BACK-BOTTOM BAR
DESCRIPTION
CROSSBAR
SIDE POSTS
BACK-BOTTOM BAR KIT
CROSSBAR BRACKETS
CROSSBAR BOLTS
(3/4" Button Head Allen Bolt)
WASHERS
ANCHOR NAILS
NET CLIPS
-
QUANTITY INCLUDED
1
1
2
1
(3 pieces + hardware)
2
4
4
4
1 SET
Insert crossbar bracket into crossbar and slide into side post.
Use anti-rust lubricant on bolts and washers then tighten.
-
Connect Back bottom-bar and slide under goal.
Attach to goal with hardware. Attach net.
NOTE: For 4'x6' goal, back-bo�om bar is single piece
and does not require addi�onal assembly.
CROSSBAR BRACKETS
Rev_2020-01-09
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Agora CHANNEL CLUB GOALS
Summary of Contents for Agora CHANNEL CLUB GOALS
- Page 1 SA GCAKIT406, SA GCAKIT612, SA GCAKIT618, SA GCAKIT721, and SA GCAKIT824 CHANNEL CLUB GOALS CROSSBAR BRACKETS CROSSBAR SIDE POST BACK-BOTTOM BAR DESCRIPTION QUANTITY INCLUDED CROSSBAR SIDE POSTS BACK-BOTTOM BAR KIT (3 pieces + hardware) CROSSBAR BRACKETS CROSSBAR BOLTS (3/4" Button Head Allen Bolt)
- Page 2 SA-GCAB06, SA-GCAB12, SA-GCAB18, SA-GCAB21, and SA-GCAB24 BACK-BOTTOM BARS for Channel Club Goals PARTS INCLUDED: Back-Bottom Bar End Center Connector Bolts Washers Nuts Wrench Allen Wrench Net-clips 1 SET ASSEMBLY: 1. CONNECT BACK BOTTOM BAR (BBB) Insert center connector into one end of BBB. Insert in order: bolt, washer, BBB, center connector, washer, and nut.
- Page 3 Instructions GOAL STORAGE Goal tipover can cause serious injury or even death. Most cases occured when goals were left unattended. When not in use, remove net and store using one of the below methods. Fully disassemble for seasonal storage. . Anchor or chain one goal to another Lock Chain .
