Summary of Contents for Graff PHASE G-6355-LM45B T Series

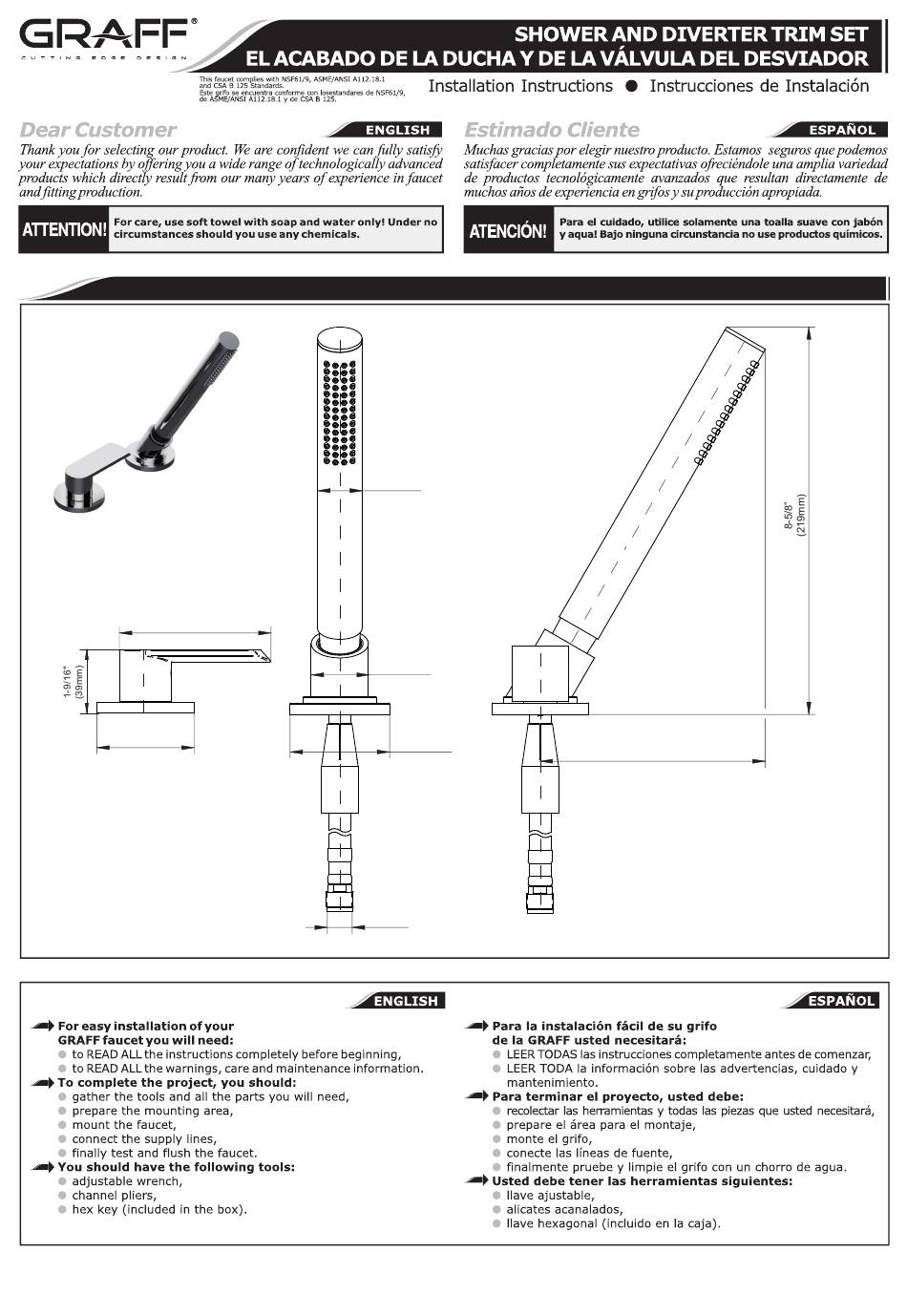

- Page 1 PHASE G-6355-LM45B-**-T Model Modelo 1” Ø(25mm) 3-11/16” (93mm) 1-1/4” Ø(32mm) 2-3/8” 2-3/8” Ø(60mm) 6-3/16” Ø(60mm) (157mm) M15x1 IOG 2848.80 Rev. 2 June 2017...
- Page 2 PHASE G-6655-LM45B-**-T IOG 2848.80 Rev. 2 June 2017...
- Page 3 O-RING IOG 2848.80 Rev. 2 June 2017...
- Page 4 IOG 2848.80 Rev. 2 June 2017...
- Page 5 Put the lever body (4) with the screw (5) on the valve spindle extension (B) - fig. 2.4. Check if it is possible to obtain the lever position as shown in the picture 2.8. If you cannot obtain satisfactory position of the lever (4) in relation to the edge of the installation surface (a clear shift by the angle Δ...
- Page 6 IOG 2848.80 Rev. 2 June 2017...
- Page 7 When the lever is set as recommended in the manual: Turning the lever by Para la posición de la manilla recomendada en el manual: Girar la manilla 180° to the left results in outflow of water through the hand shower, en 180°...
