MODELS E1320H/1620B
CONGRATULATIONS!

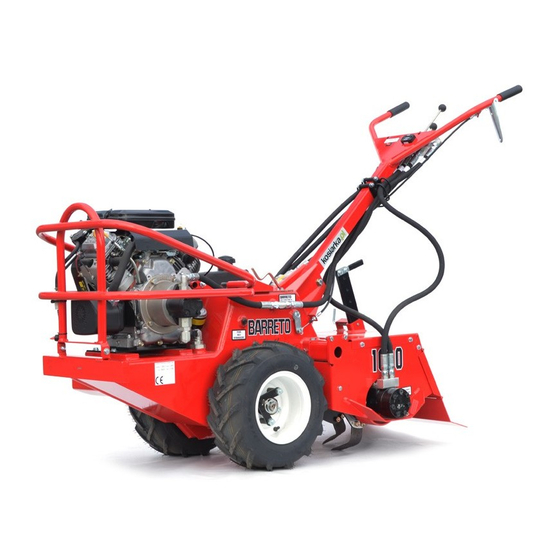

You are now the proud owner of the BARRETO Model 1320 or 1620 tiller. Please take a
moment of your time to look over the following information. Familiarize yourself with the
tiller, its characteristics, and method of operation. Pay particular attention to the safety and
operating instructions.
If you have any questions or need replacement parts in the future, please contact us at
your convenience. Our toll-free phone number, fax and email are listed below and parts
may be ordered through any of these methods.
THANK YOU for your patronage and confidence in BARRETO equipment.
Barreto Manufacturing, Inc. Innovative Equipment Engineered to Last
66498 Hwy 203, La Grande, OR 97850
(800) 525-7348 (541) 963-7348
FAX (541) 963-6755
E-Mail:
info@barretomfg.com
Web Site:
Machine Identification Record
Barreto Customer number
Machine model number
Machine serial number
Engine manufacturer
Engine model number
Engine serial number
1320/1620 Owner's-Operator's Manual
HYDRAULIC REAR TINE TILLER
OWNER'S/OPERATOR'S MANUAL
http://www.barretomfg.com
________________________
________________________
________________________
________________________
________________________
________________________
THE
8/30/18
Page 1 of 19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E1320H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Barreto E1320H

Summary of Contents for Barreto E1320H

  • Page 1 OWNER’S/OPERATOR’S MANUAL CONGRATULATIONS! You are now the proud owner of the BARRETO Model 1320 or 1620 tiller. Please take a moment of your time to look over the following information. Familiarize yourself with the tiller, its characteristics, and method of operation. Pay particular attention to the safety and operating instructions.

  • Page 2: Table Of Contents

    1. Remove the tiller from the shipping crate. Please inspect immediately for any damage and notify the shipping company and Barreto Manufacturing, Inc. right away if any is found. 2. Screw the handle bar adjustment crank into the lower handle bar adjuster pin.

  • Page 3: Service Information

    SERVICE INFORMATION Check reservoir level using sight glass on the left side of the tank. If required, add to reservoir tractor transmission / hydraulic fluid. For machine use in ambient temperatures between +32°F (0°C) and +90°F (32°C) hydraulic fluid ISO 68 is recommended. If the machine is operated at temperatures Recheck oil level after the tiller below +32°F (0°C) then hydraulic fluid ISO 46 is recommended.

  • Page 4: Barreto Warranty

    Engines, engine accessories, batteries and tires are warranted by the original manufacturers and are not covered by the Barreto Equipment Warranty. Wear parts such as tiller tines, sprockets, bearings, trencher chain parts including teeth, stump grinder cutting teeth & holders, etc.

  • Page 5: Honda Gx390 Schematic

    ELECTRICAL SCHEMATIC - HONDA GX390 TECHNICAL & CONSUMER INFORMATION Wiring Diagrams Oil Alert® and Electric Starter Types ENGINE SWITCH ST BAT o- -o START 81/W LEVEL SWITCH Engine Types with Oil Alert® and Without Electric Starter 1320/1620 Owner’s-Operator’s Manual 8/30/18 Page 5 of 19...

  • Page 6: Briggs 16 Hp Schematic

    ELECTRICAL SCHEMATIC – BRIGGS VANGUARD 16 HP V-TWIN 1320/1620 Owner’s-Operator’s Manual 8/30/18 Page 6 of 19...

  • Page 7: Hydraulic Schematic

    HYDRAULIC SCHEMATIC 1320/1620 Owner’s-Operator’s Manual 8/30/18 Page 7 of 19...

  • Page 8: Specifications

    SPECIFICATIONS MODEL NUMBER 1320/1620 DIMENSIONS Weight 560 lbs. (254.01 kg) Height 44” (1.12 m) Length 77” (1.96 m) Width 27” (685.8 mm) ENGINE Engines Honda GX390 Briggs 16 hp V-Twin Fuel Gasoline Power: hp (kW) at 3600 RPM H-11.7 hp (8.73 kW) Power: hp (kW) at 3600 RPM B-16 hp (11.93 kW) Fuel Capacity...
  • Page 9 1320H/1620B TILLER TROUBLESHOOTING GUIDE CAUTION: ALWAYS USE EXTREME CARE WHEN TROUBLE SHOOTING OR MAKING ADJUSTMENTS ON THE TILLER. STAY CLEAR OF TINES WHEN ENGINE IS RUNNING. ALWAYS SHUT THE ENGINE OFF BEFORE DISASSEMBLING ANY COMPONENT. A. ENTIRE HYDRAULIC SYSTEM DOES NOT OPERATE AND THE ENGINE IS NOT UNDER LOAD 1.

  • Page 10: Troubleshooting

    1/2" movement at actuator lever pin. 2. Tine motor worn. Rebuild or replace motor. New motors are available from Barreto Manufacturing, Inc. C. WHEELS FAIL TO TURN BUT TINES ROTATE 1. Wheel axle keys have been sheared or Replace keys.
  • Page 11 3. Oil around tine motor shaft. Inspect tine motor for leaking shaft seal. Rebuild or replace motor. New motors are available from Barreto Manufacturing, Inc. F. EXCESSIVE FOAMING OF HYDRAULIC OIL FROM VENT HOSE. 1. Improper oil used. Verify that hydraulic oil used has anti- foaming additives.

  • Page 12: Operating Instructions

    OPERATING INSTRUCTIONS 1. READ SAFETY INSTRUCTIONS BEFORE OPERATING! 2. Be sure engine oil and hydraulic oil are at proper levels before starting the tiller. 3. STUDY AND UNDERSTAND CONTROLS BEFORE BEGINNING OPERATION! 4. NEVER RUN THE MACHINE IN REVERSE WHILE TINES ARE ROTATING! 5.

  • Page 13: Safety Instructions

    SAFETY INSTRUCTIONS 1. READ SAFETY AND OPERATING INSTRUCTIONS BEFORE OPERATING! 2. DO NOT LEAVE TILLER UNATTENDED WITH ENGINE RUNNING. 3. Always park on level surface, never on an incline. 4. USE EXTREME CAUTION IF TRANSPORTING TILLER DOWN ANY INCLINE, ESPECIALLY IF USING RAMPS OFF A PICK-UP TRUCK. 5.

  • Page 14: Safety Instructions Overview

    SAFETY INSTRUCTIONS OVERVIEW READ SAFETY AND OPERATING INSTRUCTIONS BEFORE OPERATING! USE COMMON SENSE AND PLENTY OF IT! The CLUTCH LEVER on the left handlebar is for the operator’s protection. All motion stops when the lever is released. DO NOT TAPE THE CLUTCH LEVER UP or otherwise by-pass this safety feature! Call before you dig.
  • Page 15 WARNING: If tiller should fall it would crush anybody under it. We recommend having a fire extinguisher suitable for petrol fires in the operating area. Attachments can change the center of mass and machine operations. Use only Barreto attachments. 1320/1620 Owner’s-Operator’s Manual...

  • Page 16: Location Of Underground Utilities

    DETERMINE LOCATION OF UNDERGROUND UTILITIES OSHA CFR 29 1926.651 requires that the estimated location of underground utilities be determined before beginning excavation or an underground drilling operation. When the actual excavation or bore approaches an estimated utility location, the exact location of the underground installation must be determined by a safe, acceptable and dependable method.

  • Page 17: Worksite Assessment

    WORK SITE ASSESSMENT Examine the work area for any conditions or obstructions that may inhibit tilling or create a safety hazard for the operator or others. Use the information in this manual combined with good judgment to identify any hazards to avoid.

  • Page 18: Contact With Underground Utilities

    CONTACT WITH UNDERGROUND UTILITIES After LOCATING UNDERGROUND UTILITIES and performing the WORK SITE ASSESSMENT, accidental tine contact with a buried utility might still occur. If it does, stop tilling and call 911 for help. If you cut a wire or cable, assume that you do not know what kind it is. It may be electrical or any one of several communication lines: telephone, television, or fiber optic.

  • Page 19: Index

    INDEX CALL BEFORE YOU DIG, 14, 16 PROTECTION, 13, 14 CLUTCH LEVER, 12, 13, 14, 17 REFUELING, 15 CONTROLS, 12 SAFETY GOGGLES, 13, 14 DANGER, 14, 16, 18 SAFETY INSTRUCTIONS, 2, 12, 13, 14, 15 ELECTRICAL SCHEMATIC - HONDA, 5 SAFETY SHOES, 14 SERVICE INFORMATION, 2, 3 ELECTRICAL SCHEMATIC –...
