Murata LLA219C70G475ME01 Series Reference Sheet page 6

2.3 Tapes for capacitors are wound clockwise shown in Fig.3.
(The sprocket holes are to the right as the tape is pulled toward the user.)

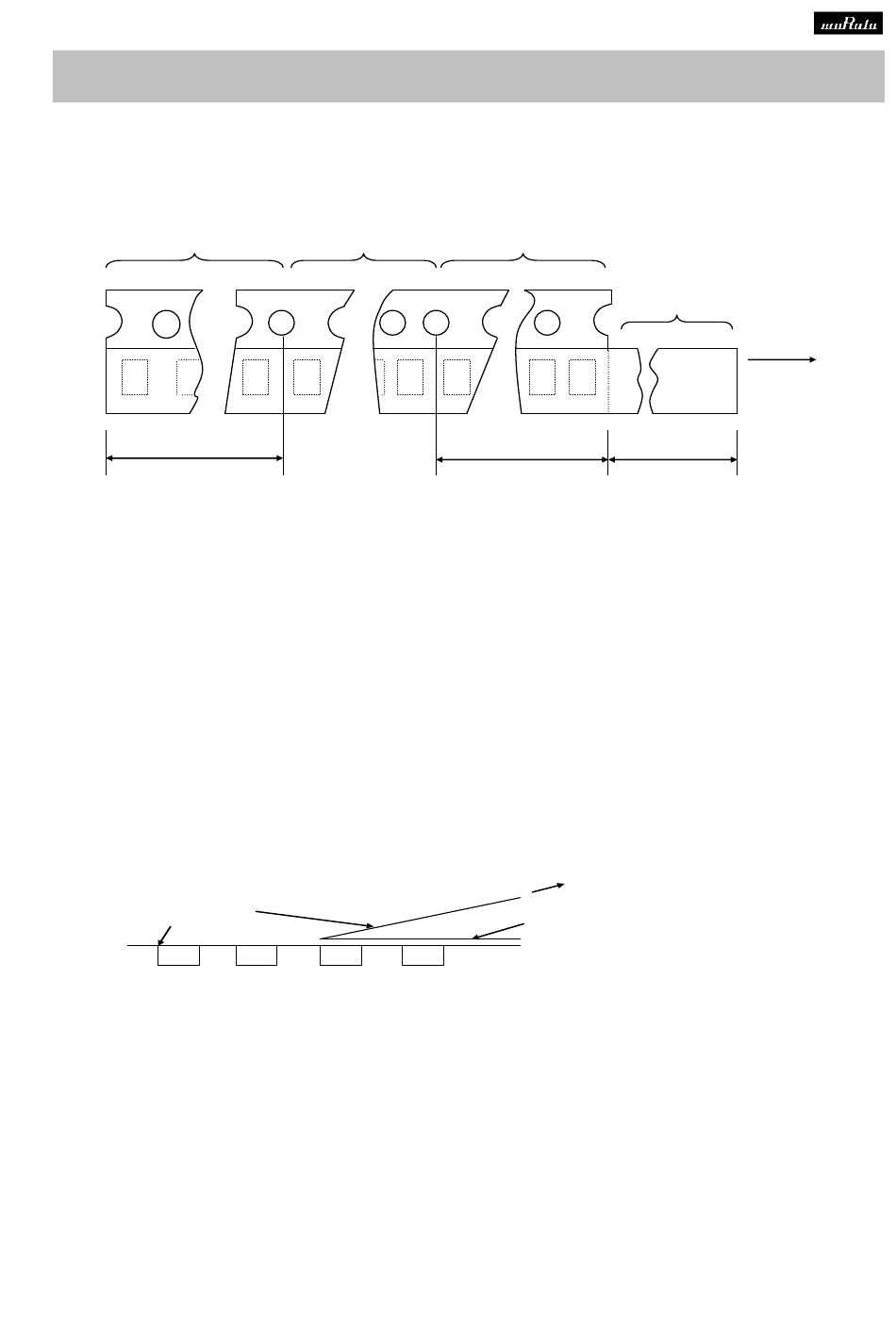

2.4 Part of the leader and part of the vacant section are attached as follows.
Tail vacant Section
160 min.
2.5 Accumulate pitch : 10 of sprocket holes pitch = 40±0.3mm
2.6 Chip in the tape is enclosed by top tape and bottom tape as shown in Fig.1.
2.7 The top tape and base tape are not attached at the end of the tape for a minimum of 5 pitches.
2.8 There are no jointing for top tape and bottom tape.
2.9 There are no fuzz in the cavity.
2.10 Break down force of top tape : 5N min.
2.11 Reel is made by resin and appeaser and dimension is shown in Fig 3.
There are possibly to change the material and dimension due to some impairment.
2.12 Peeling off force : 0.1N to 0.6N in the direction as shown below.
165 to 180°
2.13 Label that show the customer parts number, our parts number, our company name, inspection
number and quantity, will be put in outside of reel.
JEMCAP-00644A
( 単位： mm)
Chip-mounting Unit Leader vacant Section
6
Leader Unit
(Top Tape only)
190 min. 210 min.
Top Tape
Package
LLA Type
(in mm)
Direction
of Feed
