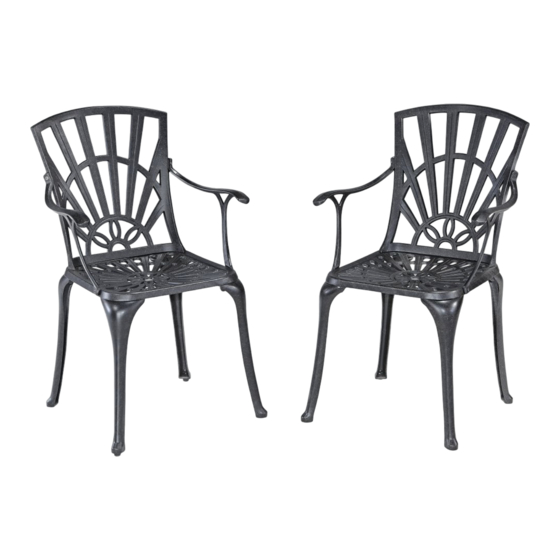

Homestyles Arm Chair Assembly Instructions

IMPORTANT

Carefully remove all the parts from the carton and place them
individually on a soft cloth to prevent scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
This product is made of aluminum. Do not use power tools
above 8 volts to assemble and only tighten bolts until snug.
Over tightening can damage the aluminum.

Part List

Hardware List

Wrench (large)
1 pc.
Wrench (small)
1 pc.
Tool(s) required for assembly: Philips screwdriver
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05560 0080
Arm Chair
A.
Back
1 pc.
B.
Seat
1 pc.
M6x30
Tapered Bolt (long)
Flat Washer (large)
2 pcs. (+1 extra) 10 pcs. (+1 extra)
M6x25
Flat Washer (small)
Tapered Bolt (short)
2 pcs. (+1 extra) 4 pcs. (+1 extra)
C.
Arm
1 pc.
E.
Leg
4 pcs.
Spring Washer (large)
10 pcs. (+1 extra)
Spring Washer (small)
4 pcs. (+1 extra)
888-680-7460, 877-831-0319
D.
Arm
1 pc.
Nut (large) Nut Cap (large)
10 pcs. (+1 extra) 10 pcs. (+1 extra)
Nut (small) Nut Cap (small)
4 pcs. (+1 extra) 4 pcs. (+1 extra)
