- Page 1 AC7770 4K DisplayPort v1.2 extender set...
- Page 2 6.0 Warning and points of attention ................5 7.0 Warranty conditions ....................6 1.0 Introduction Congratulations with the purchase of this high-quality ACT product! This product has undergone extensive testing by ACT’s technical experts. Should you experience any problems with this product, you are covered by ACT warranty.

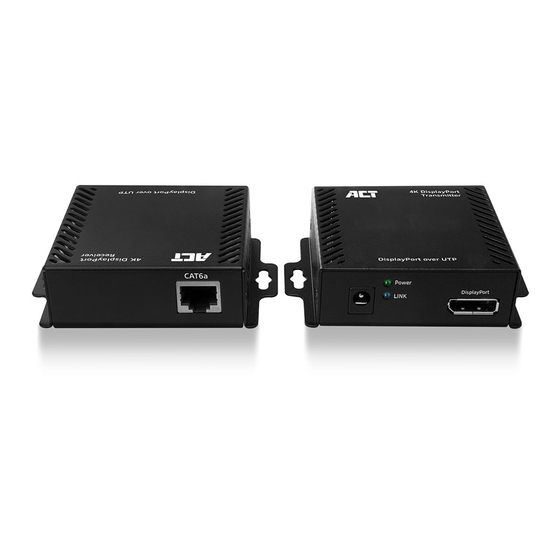

- Page 3 ENGLISH 2.0 Panel descriptions Front Panel Transmitter and receiver unit RJ45 CAT6a Back panel Transmitter and receiver unit Link Green LED = Power on/off Link Blue LED = TX/RX linked. Flashing = Low power mode Power DC 5.0V 2.0A...
- Page 4 ENGLISH 3.0 Installation diagram: Point to Point application 4.0 Technical specifications Connections RJ45, DisplayPort Connections (in) RJ45, DisplayPort (full-size) female (x1) Connections (out) RJ45, DisplayPort (full-size) female (x1) Max. extension distance Data transmission Zero latency, Real time transmission Extension cable CAT6a Video signal DisplayPort...
- Page 5 A power socket is needed which should be close and easy accessible from the device. Repairing of the device should be done by qualified ACT staff. Never try to repair the device yourself. The warranty immediately voids when products have undergone self-...
- Page 6 ACT warranty. Products are not covered by the ACT warranty when exposed to incorrect/improper use, external influences or when opening the service parts of the product by parties other than ACT. ACT may use refurbished materials for repair or replacement of your defective product. ACT cannot be held responsible for changes in network settings by internet providers.
- Page 7 ENGLISH When my product gets defective Should you encounter a product rendered defective for reasons other than described above: Please contact your point of purchase for taking care of your defective product. AC7770_EN | 07-2020...
