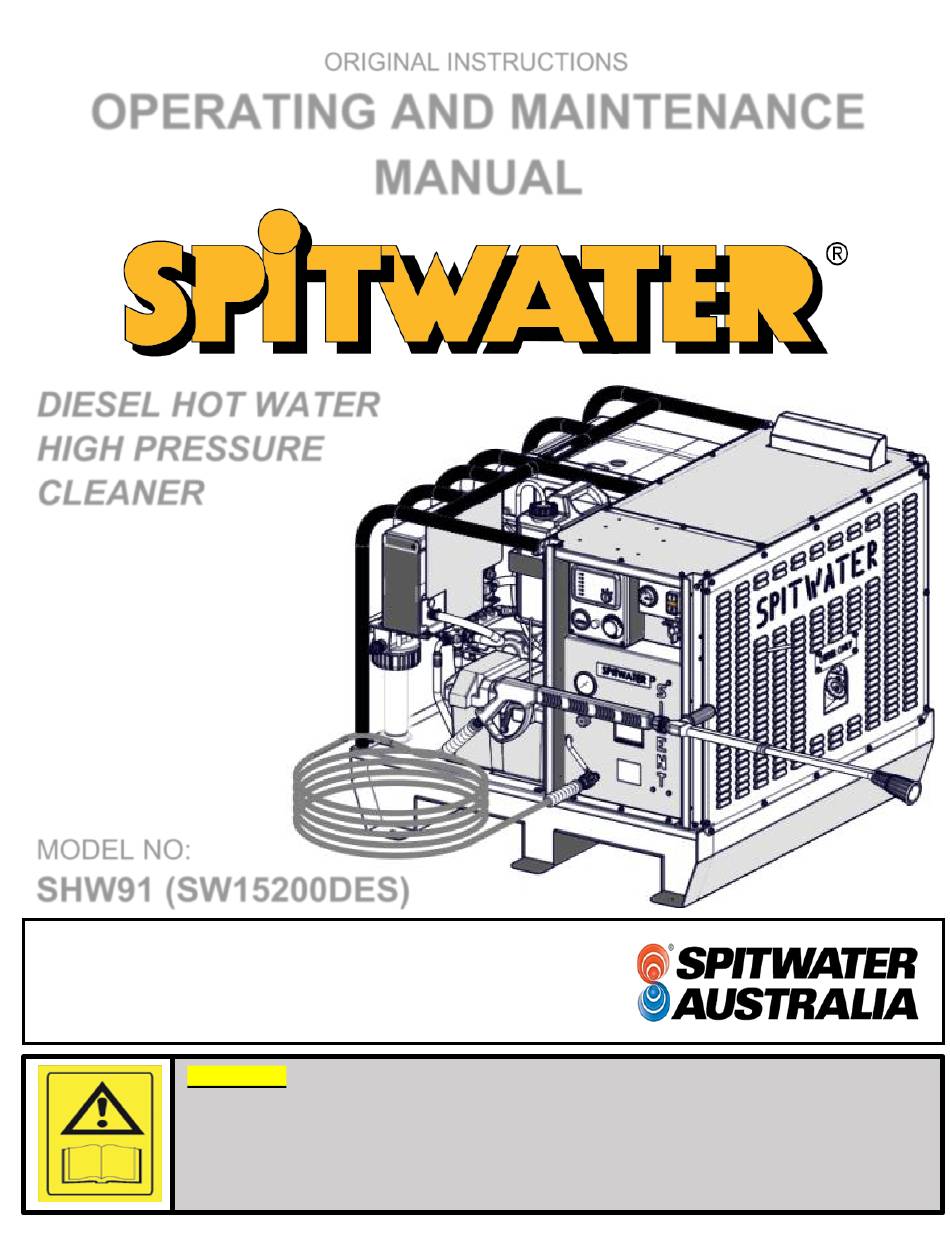

OPERATING AND MAINTENANCE
DIESEL HOT WATER
HIGH PRESSURE
CLEANER
MODEL NO:
SHW91 (SW15200DES)
MADE IN AUSTRALIA
BY
SPITWATER AUSTRALIA PTY LTD
953 METRY STREET
NORTH ALBURY NSW 2640
AUSTRALIA
WARNING: Read and understand this instruction manual before operating this
unit and retain for future reference.
Failure to follow operating, safety and maintenance instructions outlined in this
manual releases the manufacturer from any responsibility for any accidents or
damage incurred and may render any warranty void.
ORIGINAL INSTRUCTIONS
MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHW91 and is the answer not in the manual?

Questions and answers

Summary of Contents for Spitwater SHW91

  • Page 1 DIESEL HOT WATER HIGH PRESSURE CLEANER MODEL NO: SHW91 (SW15200DES) MADE IN AUSTRALIA SPITWATER AUSTRALIA PTY LTD 953 METRY STREET NORTH ALBURY NSW 2640 AUSTRALIA WARNING: Read and understand this instruction manual before operating this unit and retain for future reference.
  • Page 2 SPARE PARTS, ACCESSORIES AND AFTER SALES SERVICE Spitwater has an extensive range of spare parts and accessories to suit all your cleaning needs. For spare parts, accessories and service please contact 1800 SPITWATER (1800 774 892) and to view Spitwater's extensive range of high pressure cleaners online visit www.spitwater.com.au...
  • Page 3: Technical Data

    TECHNICAL DATA MODEL SW15200DES PRODUCT SHW91 #N/A UNIT PERFORMANCE FLOW RATE PRESSURE PRESSURE #N/A NOZZLE #N/A WATER TEMPERATURE #N/A °C WATER INLET PRESSURE MAX #N/A TEMP MAX #N/A °C ENGINE ENGINE MODEL HATZ 1D81C TYPE DIESEL-SILENT SPEED 1800 #N/A #N/A...
  • Page 4: Description Of Symbols

    DESCRIPTION OF SYMBOLS The following symbols are used throughout this instruction booklet in order to mark important paragraphs or sections that require particular attention. Their meaning is listed next to them for your attention. The following symbols are used on the unit in order to warn user of potential injury if not cautious. Their meaning is listed next to them for your attention.
  • Page 5 SAFETY LABELS, UNIT COMPONENTS FEATURES & CONTROLS • Always pay attention to the safety instructions provided on each label. Do not alter or remove safety labels CHEMICAL TANK TEMPERATURE CONTROL KEY SWITCH ADJUSTMENT MODULE WATER INLET CONNECTOR BURNER HOUR METER ON / OFF EMERGENCY BUTTON...
  • Page 6 CONTROLLER GUIDE ICON DESCRIPTION PRE HEAT AUXILIARY ALARM LOW OIL PRESSURE ENGINE-HIGH TEMPERATURE BATTERY UNDER VOLTAGE / BATTERY OVER VOLTAGE OVER SPEED STOP / RESET: Turning the keyswitch to this position places the controller into its STOP/RESET mode. This will clear any alarm unless the alarm condition is still present. RUN: Moving the keyswitch into this position.
  • Page 7: General Safety Precautions

    GENERAL SAFETY PRECAUTIONS 1. OBSERVE SAFETY INSTRUCTIONS • Make sure you have read and understood the whole instruction manual before installing, operating or carrying out any maintenance on this unit. • Warnings and serial label on the unit provide important directions and information on the safe use of the unit.
  • Page 8: Chemical Hazard

    4. EXHAUST & FLUE GASES • Do not use combustion engine powered machines indoors unless adequate ventilation is assessed by national labor authorities. • Exhaust contains poisonous carbon monoxide gas that can build up to dangerous levels in closed areas. Breathing carbon monoxide can cause unconsciousness or death.
  • Page 9: Operational Safety Precautions

    OPERATIONAL SAFETY PRECAUTIONS All health and safety regulations applicable to general safe work practices, as well as safe operation of equipment, as well as any specific standard for safe operation of high pressure cleaners according to local regulations must be followed. When operating this unit, 1.
  • Page 10: Equipment Safety

    Never exceed the maximum working temperature and pressure as indicated on the unit data plate and in this manual. • Only use this unit with cleaning chemicals recommended by Spitwater. The use of other cleaning agents or chemicals may adversely affect the safety of the unit. •...
  • Page 11: Storage / Transport

    5. When not in use the unit must be stored in a dry building where there is no possibility for the temperature to be at or below 0°C. If necessary to store the unit at or below 0°C contact your authorized Spitwater service agent for advice.
  • Page 12 2. Remove carton and carefully remove the unit from the pallet keeping it upright. Visually check for any damage, leaks or other issues. If any problem is found, contact your Spitwater agent immediately. 3. Identify the unit from the information on the serial label affixed to the unit.
  • Page 13: Nozzle Assembly

    8. NOZZLE ASSEMBLY Connect the high pressure nozzle (smaller hole) and the low pressure nozzle (larger hole) to the lance. Do not over tighten and make sure that the nozzle positions do not interchange during assembly. Add nozzle shield after nozzle assembly. Refer diagram below. 9.
  • Page 14: Water Inlet Connection

    Contact your Spitwater agent for advice and /or supply. • Make sure the water supply temperature and pressure meet the values specified in the technical data, then turn the water supply on. Visually check for leaks and contact your Spitwater service agent if found. •...
  • Page 15 13. Remove the DIESEL tank cap and fill the diesel tank with clean filtered diesel. ONLY USE CLEAN DIESEL IN THIS UNIT, as using any other fuel will create a risk of explosion and damage to the unit.
  • Page 16: Cold Start

    CHECK LIST” in the SERVICE / CARE section as a guide. If the unit is damaged or faulty in anyways, DO NOT use it and immediately contact your authorized Spitwater service agent for advice. TO START 1. Always wear appropriate Personal Protective Equipment.
  • Page 17: Usage Tips

    PRESSURE ADJUSTMENT HIGH / LOW 1. To activate high pressure turn the lance handle clockwise and pull the trigger and to activate low pressure turn the lane handle anti-clockwise. HIGH 3. Check that the pressure indicated on the pressure gauge matches the value on the data plate and in the technical data.
  • Page 18 2. Turn the temperature adjustment knob to 3. Open the chemical injector by turning the knob achieve desire cleaning temperature. anti-clockwise until the desired affect is reached. When the trigger is pulled, water mixed with detergent will be sprayed. 3. After hot water use, press burner stop button (0). This will turn OFF the hot water and change back to cold water mode for cleaning.
  • Page 19 3. Release all trapped water pressure in the unit by pulling the trigger of the spray gun, then engage the spray gun trigger lock. Failure to follow this instruction will leave the unit in a potentially unsafe manner. Turn the Isolator switch to OFF position. 5.
  • Page 20: Safety Precautions

    2. Carry out all regular maintenance and Spitwater recommends that all maintenance is inspections as listed in this manual using carried out by an authorized Spitwater service original Spitwater parts where required. agent using original Spitwater spare parts. 3. Always make sure before carrying out any...
  • Page 21: Daily Inspection Checklist

    ● Clear fumes = ideal condition to run the unit. Check pump seals for any leak. Unusual noise from unit. STOP operting the unit, Unit is fit, proceed task Contact Spitwater service agent immediately Contact Spitwater service Do It Yourself, agent / Qualified person for...
  • Page 22 USAGE VS SERVICE FREQUENCY TABLE-A: Usage vs Service Frequency For more information on service intervals of the HATZ diesel engine, refer manual. Time interval for checks and replacement listed above are for units subjected to normal operating conditions. Should the unit be subjected to abnormal conditions (eg heavy use, dirty water, extreme temperatures or conditions etc) times should be reduced accordingly.
  • Page 23: Engine Oil Check

    OIL CHECK POINTS ENGINE OIL CHECK PUMP OIL CHECK ENGINE OIL CHECK PUMP OIL CHECK Ensure the unit is on a flat surface. Ensure the unit is on a flat surface. Check the oil level in the pump using Remove the oil level dipstick and the dipstick or the sight glass on the wipe it clean.
  • Page 24: Troubleshooting Guide

    TROUBLESHOOTING GUIDE If the fault cannot be identified or corrected using the below list (or remedy suggests contacting Spitwater service agent) stop using the unit immediately and contact your authorized Spitwater service agent to rectify. TROUBLESHOOTING GUIDE FAULT CAUSE REMEDY...
